8.2.3 Application Curves
This section shows the device normal control waveform and error-state waveform.

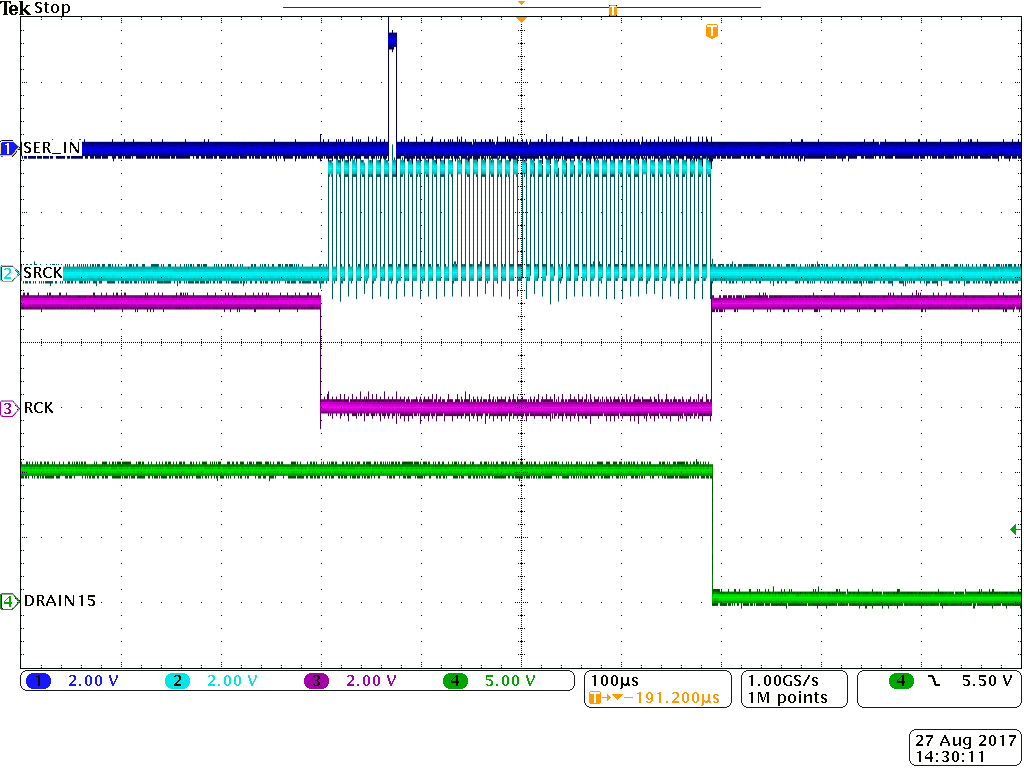

Figure 21. Waveform for Turning On Cascading Device DRAIN15

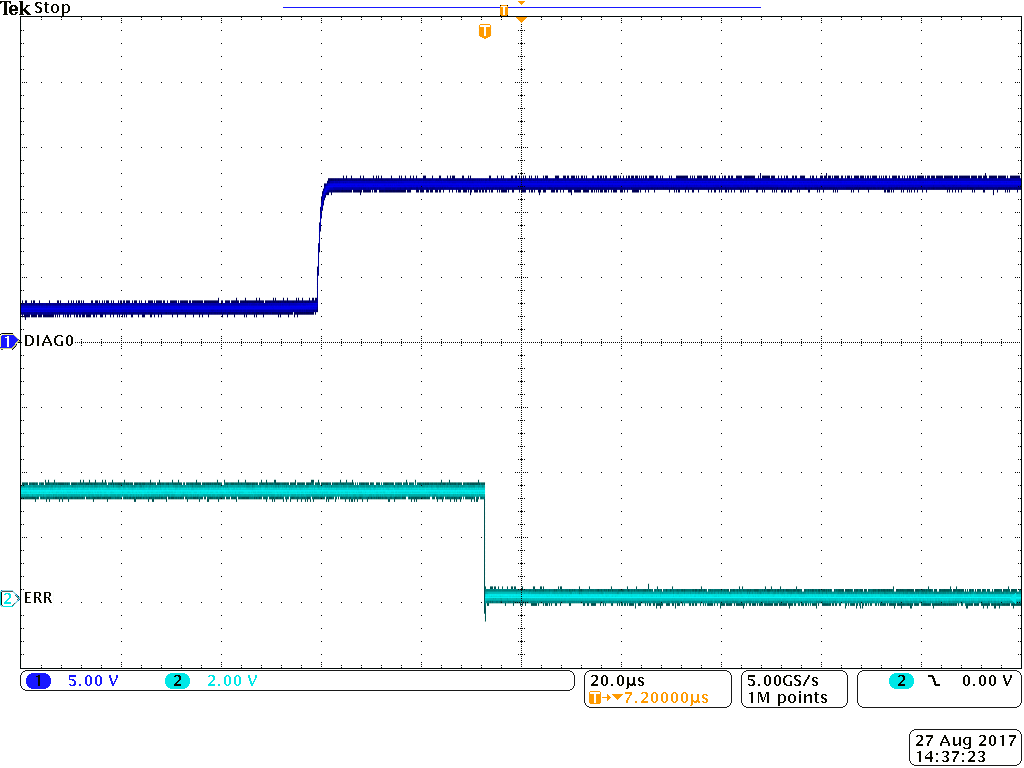

Figure 22. First Device Drain0 Open Waveform
