6.7 Switching Characteristics
Vcc = 5 V, TJ = 25ºC, CL = 30 pF, ID = 20 mA unless otherwise specified| PARAMETER | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
| tpd(deg_open) | LED open to ERR pin pulled down time | 35 | µs | ||
| tpd(deg_short) | LED short to ERR pin pulled down time | 35 | µs | ||
| tpd(GOFF) | Propagation delay time, output off (VOUT equals 10% LED supply voltage) from Gx rising | 250 | ns | ||
| tpd(GON) | Propagation delay time, output on (VOUT equals 90% LED supply voltage) from Gx falling | 250 | ns | ||
| tpd(ROFF) | Propagation delay time, output off (VOUT equals 10% LED supply voltage) from RCK rising | 250 | ns | ||
| tpd(RON) | Propagation delay time, output on (VOUT equals 90% LED supply voltage) from RCK rising | 250 | ns | ||
| tr | Rise time, drain output | 100 | ns | ||
| tf | Fall time, drain output | 100 | ns | ||
| tpd(SIO) | Propagation delay time, SRCK falling edge to SEROUT change | 35 | ns | ||
| tr(o) | SEROUT rise time (10% to 90%) | 20 | ns | ||
| tf(o) | SEROUT fall time (90% to 10%) | 20 | ns | ||

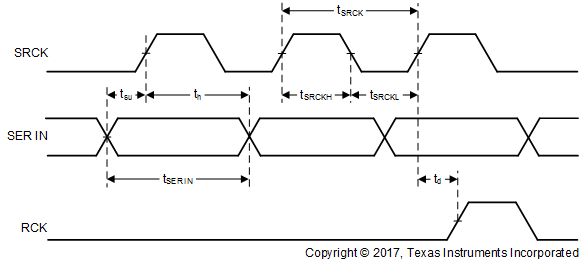

Figure 1. Timing Diagram of Input Signals

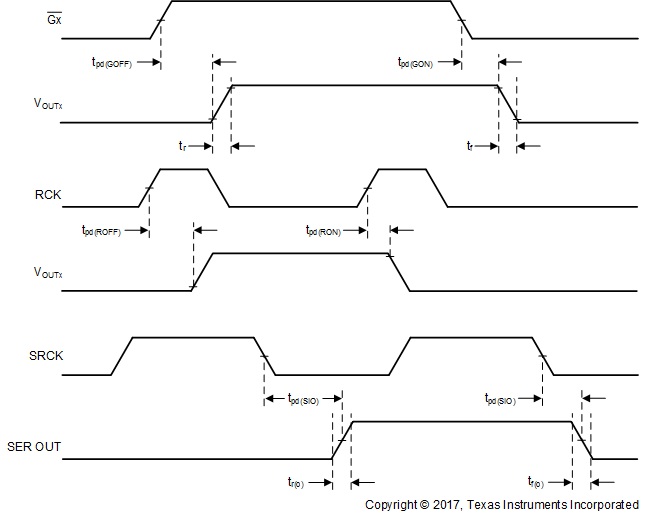

Figure 2. Timing Diagram of Output Signals
