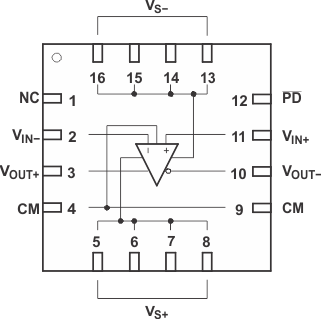

6 Pin Configuration and Functions
RGT Package
16-Pin VQFN
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| NC | 1 | N/A | No internal connection |
| VIN– | 2 | I | Inverting amplifier input |
| VOUT+ | 3 | O | Noninverting amplifier output |
| CM | 4, 9 | I | Common-mode voltage input |
| VS+ | 5-8 | P | Positive amplifier power-supply input |
| VOUT– | 10 | O | Inverted amplifier output |
| VIN+ | 11 | I | Noninverting amplifier input |
| PD | 12 | I | Power-down; PD = logic low puts part into low power mode, PD = logic high or open for normal operation |
| VS– | 13, 14, 15, 16 | P | Negative amplifier power-supply input |
