6 Pin Configuration and Functions
NC - no
internal connection
Figure 6-1 DDA Package, 8-Pin HSOIC
With PowerPAD (Top View)
NC - no
internal connection

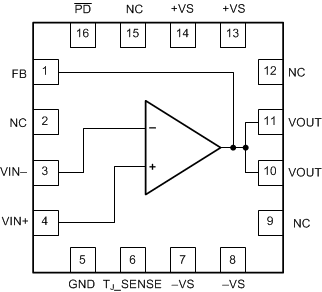

Figure 6-2 RGT Package, 16-Pin VQFN
With Exposed Thermal Pad (Top View)Table 6-1 Pin Functions
| PIN (1) | TYPE (2) | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | HSOIC | VQFN | ||
| FB | — | 1 | O | Input side feedback pin |
| GND | — | 5 | GND | Ground, PD logic reference on the VQFN-16 (RGT) package |
| NC | 5 | 2, 9, 12, 15 | — | No connect (there is no internal connection). Recommended connection to a heat spreading plane, typically GND. |
| PD | 8 | 16 | I | Amplifier power down: low = amplifier disabled, high (default) = amplifier enabled |
| REF | 1 | — | I | PD logic reference on the SOIC-8 (DDA) package. Typically connected to GND. |
| TJ_SENSE | — | 6 | O | Voltage proportional to die temperature |
| VIN– | 2 | 3 | I | Inverting input |
| VIN+ | 3 | 4 | I | Noninverting input |
| VOUT | 6 | 10, 11 | O | Amplifier output |
| –VS | 4 | 7, 8 | P | Negative power supply |
| +VS | 7 | 13, 14 | P | Positive power supply |
| Thermal pad | — | Thermal pad. Electrically isolated from the device. Recommended connection to a heat spreading plane, typically GND. | ||
(1) Both packages include a backside thermal pad. The thermal pad
can be connected to a heat spreading plane that can be at any voltage because
the device die is electrically isolated from this metal plate. The thermal pad
can also be unused (not connected to any heat spreading plane or voltage) giving
higher thermal impedance.
(2) GND = ground, I = input, O = output, P = power
