7 Parameter Measurement Information

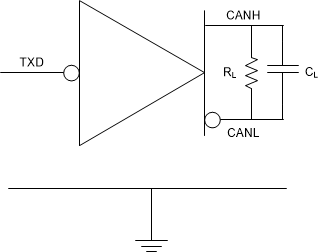

Figure 5. ICC Test Circuit

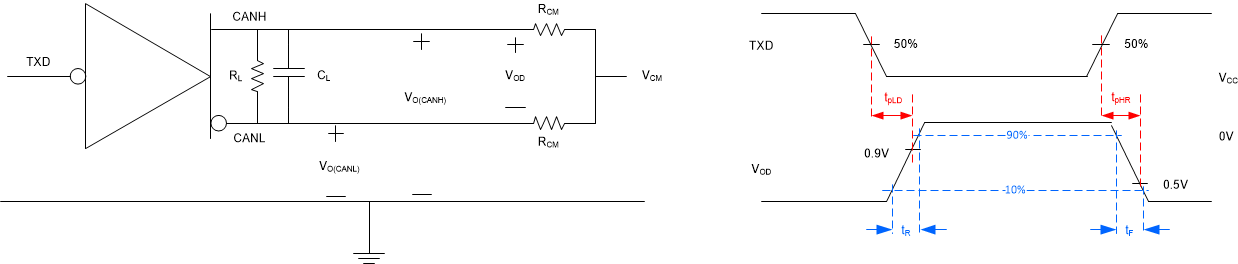

Figure 6. Driver Test Circuit and Measurement

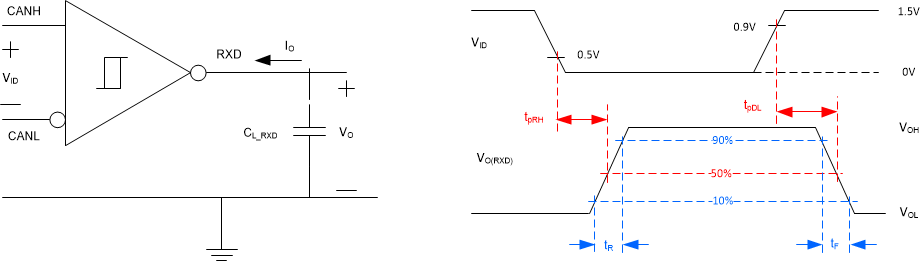

Figure 7. Receiver Test Circuit and Measurement Table 10. Receiver Differential Input Voltage Threshold Test (See Figure 7)
| Input | Output | |||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | RXD | |
| -11.5 V | -12.5 V | 1000 mV | L | VOL |
| 12.5 V | 11.5 V | 1000 mV | ||
| -8.55 V | -9.45 V | 900 mV | ||
| 9.45 V | 8.55 V | 900 mV | ||
| -8.25 V | -9.25 V | 500 mV | H | VOH |
| 9.25 V | 8.25 V | 500 mV | ||
| -11.8 V | -12.2 V | 400 mV | ||
| 12.2 V | 11.8 V | 400 mV | ||
| Open | Open | X | ||

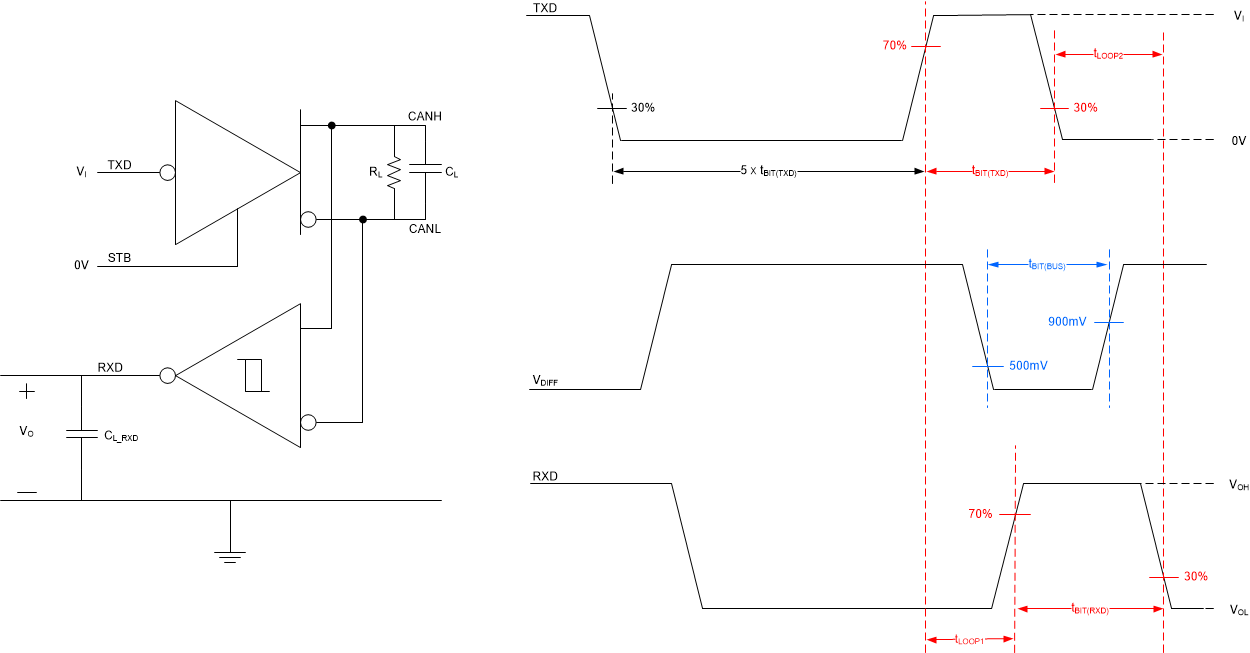

Figure 8. Transmitter and Receiver Timing Test Circuit and Measurement

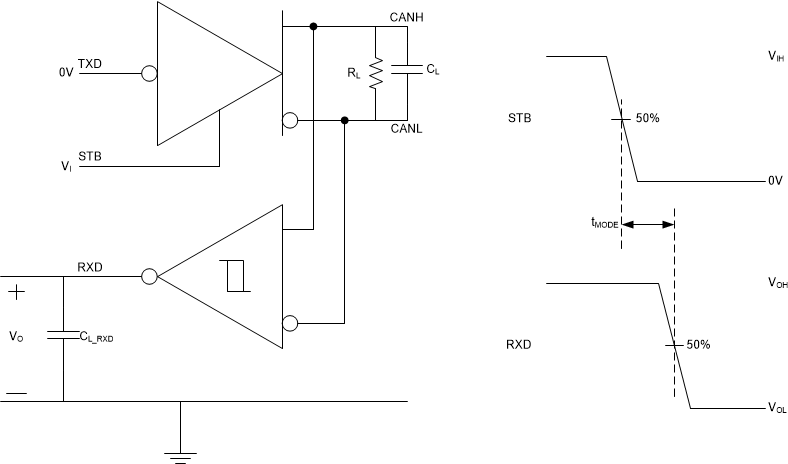

Figure 9. tMODE Test Circuit and Measurement

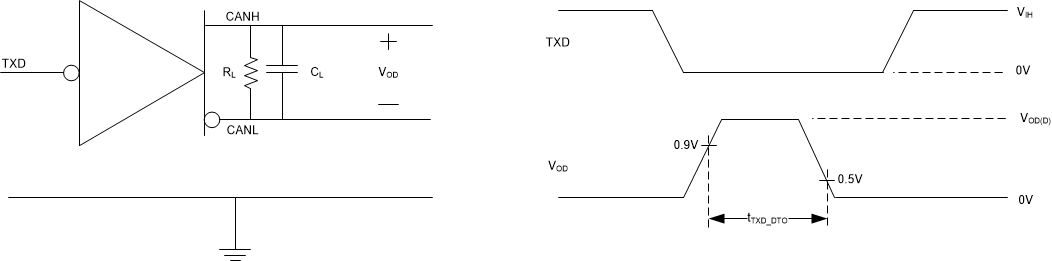

Figure 10. TXD Dominant Timeout Test Circuit and Measurement

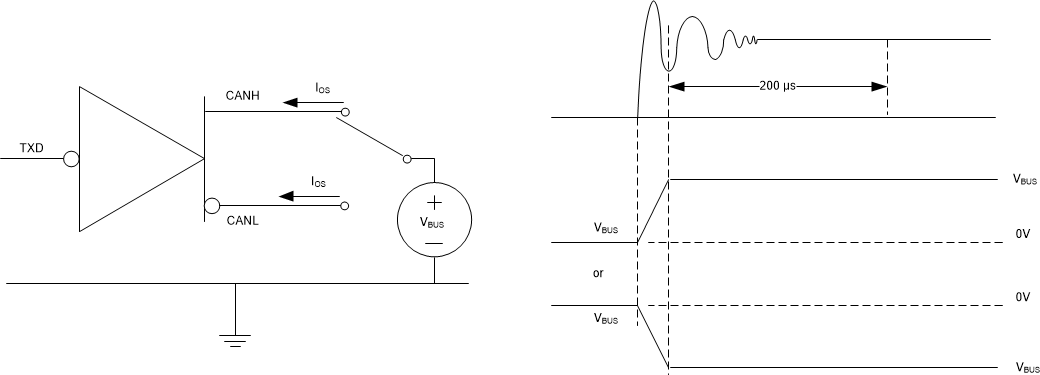

Figure 11. Driver Short-Circuit Current Test and Measurement
