ZHCSN53B December 2019 – March 2021 SN74LXCH8T245
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics
- 6.6 Switching Characteristics, VCCA = 1.2 ± 0.1 V
- 6.7 Switching Characteristics, VCCA = 1.5 ± 0.1 V
- 6.8 Switching Characteristics, VCCA = 1.8 ± 0.15 V
- 6.9 Switching Characteristics, VCCA = 2.5 ± 0.2 V
- 6.10 Switching Characteristics, VCCA = 3.3 ± 0.3 V
- 6.11 Switching Characteristics, VCCA = 5.0 ± 0.5 V
- 6.12 Switching Characteristics: Tsk, TMAX
- 6.13 Operating Characteristics
- 6.14 Typical Characteristics
- 7 Parameter Measurement Information
-
8 Detailed Description
- 8.1 Overview
- 8.2 Functional Block Diagram
- 8.3
Feature Description
- 8.3.1 CMOS Schmitt-Trigger Inputs with Integrated Pulldowns
- 8.3.2 Balanced High-Drive CMOS Push-Pull Outputs
- 8.3.3 Partial Power Down (Ioff)
- 8.3.4 VCC Isolation and VCC Disconnect
- 8.3.5 Over-Voltage Tolerant Inputs
- 8.3.6 Glitch-Free Power Supply Sequencing
- 8.3.7 Negative Clamping Diodes
- 8.3.8 Fully Configurable Dual-Rail Design
- 8.3.9 Supports High-Speed Translation
- 8.3.10 Bus-Hold Data Inputs
- 8.4 Device Functional Modes
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
3 說明
SN74LXCH8T245 是一款 8 位雙電源同相雙向電壓電平轉換器件，具有總線保持電路。Ax 引腳和控制引腳（DIR 和 OE）以 VCCA 邏輯電平為基準，Bx 引腳以 VCCB 邏輯電平為基準。A 端口能夠接受 1.1V 至 5.5V 的 I/O 電壓，而 B 端口可接受 1.1V 至 5.5V 的 I/O 電壓。如果 OE 設為低電平，DIR 上為高電平時允許數據從 A 傳輸?shù)?B，DIR 上為低電平時允許數據從 B 傳輸?shù)?A。OE 設為高電平時，Ax 和 Bx 引腳均處于高阻抗狀態。請參閱器件功能模式，了解控制邏輯的運行摘要。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| SN74LXCH8T245PWR | TSSOP (24) | 7.80mm × 6.40mm |
| SN74LXCH8T245RHLR | VQFN (24) | 5.50mm × 3.50mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

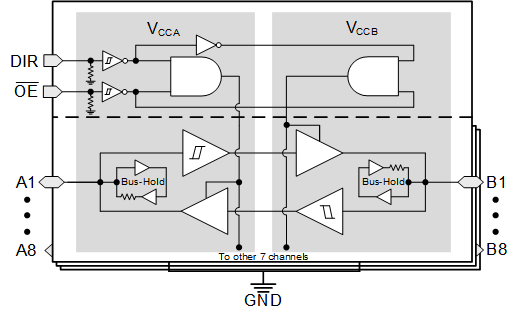

功能模塊圖
