5 Pin Configuration and Functions
All packages
are on the same relative scale.

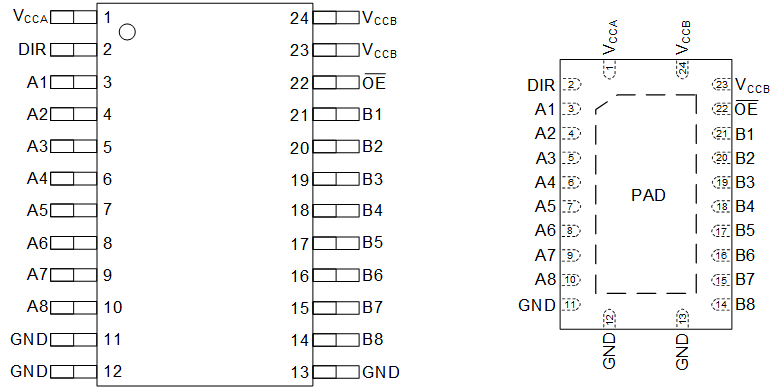

Figure 5-1 PW, and RHL Package
24-Pin TSSOP, and VQFN
Transparent Top ViewTable 5-1 Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | PW, RHL | ||
| A1 | 3 | I/O | Input or output A1. Referenced to VCCA. |
| A2 | 4 | I/O | Input or output A2. Referenced to VCCA. |
| A3 | 5 | I/O | Input or output A3. Referenced to VCCA. |
| A4 | 6 | I/O | Input or output A4. Referenced to VCCA. |
| A5 | 7 | I/O | Input or output A5. Referenced to VCCA. |
| A6 | 8 | I/O | Input or output A6. Referenced to VCCA. |
| A7 | 9 | I/O | Input or output A7. Referenced to VCCA. |
| A8 | 10 | I/O | Input or output A8. Referenced to VCCA. |
| B1 | 21 | I/O | Input or output B1. Referenced to VCCB. |
| B2 | 20 | I/O | Input or output B2. Referenced to VCCB. |
| B3 | 19 | I/O | Input or output B3. Referenced to VCCB. |
| B4 | 18 | I/O | Input or output B4. Referenced to VCCB. |
| B5 | 17 | I/O | Input or output B5. Referenced to VCCB. |
| B6 | 16 | I/O | Input or output B6. Referenced to VCCB. |
| B7 | 15 | I/O | Input or output B7. Referenced to VCCB. |
| B8 | 14 | I/O | Input or output B8. Referenced to VCCB. |
| DIR | 2 | I | Direction-control signal for all ports. Referenced to VCCA. |
| GND | 11 | — | Ground. |
| 12 | — | Ground. | |
| 13 | — | Ground. | |
| OE | 22 | I | Output Enable. Pull to GND to enable all outputs. Pull to VCCA to place all outputs in high-impedance mode. Referenced to VCCA. |
| VCCA | 1 | — | A-port supply voltage. 1.1 V ≤ VCCA ≤ 5.5 V. |
| VCCB | 23 | — | B-port supply voltage. 1.1 V ≤ VCCB ≤ 5.5 V. |
| 24 | — | B-port supply voltage. 1.1 V ≤ VCCB ≤ 5.5 V. | |
| PAD | — | — | Thermal pad. May be grounded (recommended) or left floating. |
