6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| VCC | Supply voltage | –0.3 | 6 | V |
| Voltage range at bus terminals (CANH, CANL, SPLIT) | –27 | 40 | V | |
| IO | Receiver output current | 20 | mA | |
| VI | Voltage input, ISO 7637 transient pulse(2) (CANH, CANL) | –150 | 100 | V |
| VI | Voltage input (TXD, STB) | –0.3 | 6 | V |
| TJ | Junction temperature | –40 | 150 | °C |
| Tstg | Storage temperature | –40 | 150 | °C |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Tested in accordance with ISO 7637 test pulses 1, 2, 3a, 3b per IBEE system level test (Pulse 1 = –100 V, Pulse 2 = 100 V, Pulse 3a = –150 V, Pulse 3b = 100 V). If DC may be coupled with ac transients, externally protect the bus pins within the absolute maximum voltage range at any bus terminal. This device has been tested with dc bus shorts to 40 V with leading common-mode chokes. If common-mode chokes are used in the system and the bus lines may be shorted to DC, ensure that the choke type and value in combination with the node termination and shorting voltage either will not create inductive flyback outside of voltage maximum specification or use an external transient-suppression circuit to protect the transceiver from the inductive transients.
6.2 ESD Ratings
| VALUE | UNIT | ||||
|---|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per AEC Q100-002(1) | Pins 7 and 6(2) | ±12000 | V |
| Pin 5(3) | ±10000 | ||||
| All pins | ±4000 | ||||
| Charged-device model (CDM), per AEC Q100-011 | ±1500 | ||||
| Machine Model(4) | ±200 | ||||
| IEC 61000-4-2 according to IBEE CAN EMC test specification | Pins 7 and 6 connected to pin 2 | ±7000 | |||
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
(2) Test method based upon JEDEC Standard 22 Test Method A114F and AEC-Q100-002, CANH and CANL bus pins stressed with respect to each other and GND.
(3) Test method based upon JEDEC Standard 22 Test Method A114F and AEC-Q100-002, SPLIT pin stressed with respect to GND.
(4) Tested in accordance JEDEC Standard 22 Test Method A115A and AEC-Q100-003.
6.3 Recommended Operating Conditions
| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage | 4.75 | 5.25 | V | |
| VI or VIC | Voltage at any bus terminal (separately or common mode) | –12 | 12 | V | |
| VIH | High-level input voltage | TXD, STB | 2 | 5.25 | V |
| VIL | Low-level input voltage | TXD, STB | 0 | 0.8 | V |
| VID | Differential input voltage | –6 | 6 | V | |
| IOH | High-level output current | Driver | –70 | mA | |
| Receiver (RXD) | –2 | ||||
| IOL | Low-level output current | Driver | 70 | mA | |
| Receiver (RXD) | 2 | ||||
| TA | Operating free-air temperature range | See Thermal Information | –40 | 125 | °C |
6.4 Thermal Information
| THERMAL METRIC(1) | SN65HVDA1040A-Q1 | UNIT | |||
|---|---|---|---|---|---|
| DSG (VSON) | D (SOIC) |
||||
| 12 PINS | 8 PINS | ||||
| RθJA | Junction-to-ambient thermal resistance | Low-K thermal resistance(2) | 290 | 140 | °C/W |
| High-K thermal resistance(3) | 52 | 112 | °C/W | ||
| RθJC(top) | Junction-to-case (top) thermal resistance | 56 | 56 | °C/W | |
| RθJB | Junction-to-board thermal resistance | 14 | 50 | °C/W | |
| ψJT | Junction-to-top characterization parameter | 6 | 13 | °C/W | |
| ψJB | Junction-to-board characterization parameter | 19 | 55 | °C/W | |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 4.5 | – | °C/W | |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
(2) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, Low-K board, as specified in JESD51-3, in an environment described in JESD51-2a.
(3) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, High-K board, as specified in JESD51-7, in an environment described in JESD51-2a.
6.5 Electrical Characteristics
over recommended operating conditions including operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP(1) | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| SUPPLY | |||||||
| ICC | 5-V supply current | Standby mode | STB at VCC, VI = VCC | 6 | 12 | µA | |
| Dominant | VI = 0 V, 60-Ω load, STB at 0 V | 50 | 70 | mA | |||
| Recessive | VI = VCC, No load, STB at 0 V | 6 | 10 | ||||
| UVVCC | Undervoltage reset threshold | 2.8 | 4 | V | |||
| DRIVER | |||||||
| VO(D) | Bus output voltage (dominant) | CANH | VI = 0 V, STB at 0 V, RL = 60 Ω, See Figure 3 and Figure 16 |
2.9 | 3.4 | 4.5 | V |
| CANL | 0.8 | 1.75 | |||||
| VO(R) | Bus output voltage (recessive) | VI = 3 V, STB at 0 V, RL = 60 Ω, See Figure 3 and Figure 16 |
2 | 2.5 | 3 | V | |
| VO | Bus output voltage (standby mode) | STB at Vcc, RL = 60 Ω, See Figure 3 and Figure 16 |
–0.1 | 0.1 | V | ||
| VOD(D) | Differential output voltage (dominant) | VI = 0 V, RL = 60 Ω, STB at 0 V, See Figure 3, Figure 16, and Figure 4 |
1.5 | 3 | V | ||
| VI = 0 V, RL = 45 Ω, STB at 0 V, See Figure 3, Figure 16, and Figure 4 |
1.4 | 3 | |||||
| VOD(R) | Differential output voltage (recessive) | VI = 3 V, STB at 0 V, RL = 60 Ω, See Figure 3 and Figure 16 |
–0.012 | 0.012 | V | ||
| VI = 3 V, STB at 0 V, No load | –0.5 | 0.05 | |||||
| VSYM | Output symmetry (dominant or recessive) (VO(CANH) + VO(CANL)) | STB at 0 V, RL = 60 Ω, See Figure 14 | 0.9 VCC | VCC | 1.1 VCC | V | |
| VOC(ss) | Steady-state common-mode output voltage | STB at 0 V, RL = 60 Ω, See Figure 9 | 2 | 2.5 | 3 | V | |
| ΔVOC(ss) | Change in steady-state common-mode output voltage | STB at 0 V, RL = 60 Ω, See Figure 9 | 30 | mV | |||
| VIH | High-level input voltage, TXD input | 2 | V | ||||
| VIL | Low-level input voltage, TXD input | 0.8 | V | ||||
| IIH | High-level input current, TXD input | VI at VCC | –2 | 2 | µA | ||
| IIL | Low-level input current, TXD input | VI at 0 V | –50 | –10 | µA | ||
| IO(off) | Power-off TXD output current | VCC at 0 V, TXD at 5 V | 1 | µA | |||
| IOS(ss) | Short-circuit steady-state output current, Dominant | VCANH = –12 V, CANL open, TXD = low, See Figure 12 |
–120 | –85 | mA | ||
| VCANH = 12 V, CANL open, TXD = low, See Figure 12 |
0.4 | 1 | |||||
| VCANL = –12 V, CANH open, TXD = low, See Figure 12 |
–1 | –0.6 | |||||
| VCANL = 12 V, CANH open, TXD = low, See Figure 12 |
75 | 120 | |||||
| VCANH = 0 V, CANL open, TXD = low, See Figure 12 |
–100 | –75 | |||||
| VCANL = 32 V, CANH open, , TXD = low, See Figure 12 |
75 | 125 | |||||
| IOS(ss) | Short-circuit steady-state output current, Recessive | –20 V ≤ VCANH ≤ 32 V, CANL open, TXD = high, See Figure 12 |
–10 | 10 | mA | ||
| –20 V ≤ VCANL ≤ 32 V, CANH open, TXD = high, See Figure 12 |
–10 | 10 | |||||
| CO | Output capacitance | See receiver input capacitance | |||||
| RECEIVER | |||||||
| VIT+ | Positive-going input threshold voltage, high-speed mode | STB at 0 V, See Table 1 | 800 | 900 | mV | ||
| VIT– | Negative-going input threshold voltage, high-speed mode | STB at 0 V, See Table 1 | 500 | 650 | mV | ||
| Vhys | Hysteresis voltage (VIT+ – VIT–) | 100 | 125 | mV | |||
| VIT | Input threshold voltage, standby mode | STB at VCC | 500 | 1150 | mV | ||
| VOH | High-level output voltage | IO = –2 mA, See Figure 7 | 4 | 4.6 | V | ||
| VOL | Low-level output voltage | IO = 2 mA, See Figure 7 | 0.2 | 0.4 | V | ||
| II(off) | Power-off bus input current (unpowered bus leakage current) | CANH = CANL = 5 V, VCC at 0 V, TXD at 0 V |
3 | µA | |||
| IO(off) | Power-off RXD leakage current | VCC at 0 V, RXD at 5 V | 20 | µA | |||
| CI | Input capacitance to ground (CANH or CANL) | TXD at 3 V, VI = 0.4 sin (4E6πt) + 2.5 V |
13 | pF | |||
| CID | Differential input capacitance | TXD at 3 V, VI = 0.4 sin (4E6πt) | 6 | pF | |||
| RID | Differential input resistance | TXD at 3 V, STB at 0 V | 30 | 80 | kΩ | ||
| RIN | Input resistance (CANH or CANL) | TXD at 3 V, STB at 0 V | 15 | 30 | 40 | kΩ | |
| RI(m) | Input resistance matching [1 – (RIN (CANH) / RIN (CANL))] × 100% |
V(CANH) = V(CANL) | –3% | 0% | 3% | ||
| STB PIN | |||||||
| VIH | High-level input voltage, STB input | 2 | V | ||||
| VIL | Low-level input voltage, STB input | 0.8 | V | ||||
| IIH | High-level input current | STB at 2 V | –10 | 0 | µA | ||
| IIL | Low-level input current | STB at 0.8 V | –10 | 0 | µA | ||
| SPLIT PIN | |||||||
| VO | Output voltage | –500 µA < IO < 500 µA | 0.3 VCC | 0.5 VCC | 0.7 VCC | V | |
| IO(stb) | Leakage current, standby mode | STB at 2 V, –12 V ≤ VO ≤ 12 V | –5 | 5 | µA | ||
(1) All typical values are at 25°C with a 5-V supply.
6.6 Power Dissipation Characteristics
over recommended operating conditions, TA = –40°C to 125°C (unless otherwise noted)| TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|
| PD | Average power dissipation | VCC = 5 V, TJ = 27°C, RL = 60 Ω, STB at 0 V, Input to TXD at 500 kHz, 50% duty cycle square wave, CL at RXD = 15 pF |
112 | mW | ||
| VCC = 5.5 V, TJ = 130°C, RL = 45 Ω, STB at 0 V, Input to TXD at 500 kHz, 50% duty cycle square wave, CL at RXD = 15 pF |
170 | |||||
| Thermal shutdown temperature | 185 | °C | ||||
6.7 Switching Characteristics
over operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| DEVICE SWITCHING CHARACTERISTICS | ||||||
| td(LOOP1) | Total loop delay, driver input to receiver output, recessive to dominant | STB at 0 V, See Figure 10 | 90 | 230 | ns | |
| td(LOOP2) | Total loop delay, driver input to receiver output, dominant to recessive | STB at 0 V, See Figure 10 | 90 | 230 | ns | |
| DRIVER SWITCHING CHARACTERISTICS | ||||||
| tPLH | Propagation delay time, low-to-high level output | STB at 0 V, See Figure 5 | 25 | 65 | 120 | ns |
| tPHL | Propagation delay time, high-to-low level output | STB at 0 V, See Figure 5 | 25 | 45 | 120 | ns |
| tr | Differential output signal rise time | STB at 0 V, See Figure 5 | 25 | ns | ||
| tf | Differential output signal fall time | STB at 0 V, See Figure 5 | 45 | ns | ||
| ten | Enable time from standby mode to normal mode and transmission of dominant | See Figure 8 | 10 | µs | ||
| t(dom) | Dominant time-out(1) | ↓VI, See Figure 11 | 300 | 450 | 700 | µs |
| RECEIVER SWITCHING CHARACTERISTICS | ||||||
| tPLH | Propagation delay time, low-to-high-level output | STB at 0 V , See Figure 7 | 60 | 90 | 130 | ns |
| tPHL | Propagation delay time, high-to-low-level output | STB at 0 V , See Figure 7 | 45 | 70 | 130 | ns |
| tr | Output signal rise time | STB at 0 V , See Figure 7 | 8 | ns | ||
| tf | Output signal fall time | STB at 0 V , See Figure 7 | 8 | ns | ||
| tBUS | Dominant time required on bus for wakeup from standby | STB at VCC, See Figure 13 | 1.5 | 5 | µs | |
(1) The TXD dominant time-out (t(dom)) disables the driver of the transceiver once the TXD has been dominant longer than t(dom), which releases the bus lines to recessive, preventing a local failure from locking the bus dominant. The driver may only transmit dominant again after TXD has been returned HIGH (recessive). While this protects the bus from local faults, locking the bus dominant, it limits the minimum data rate possible. The CAN protocol allows a maximum of eleven successive dominant bits (on TXD) for the worst case, where 5 successive dominant bits are followed immediately by an error frame. This, along with the t(dom) minimum, limits the minimum bit rate. The minimum bit rate may be calculated by:
Minimum Bit Rate = 11/ t(dom) = 11 bits / 300 µs = 37 kbps
Minimum Bit Rate = 11/ t(dom) = 11 bits / 300 µs = 37 kbps
6.8 Typical Characteristics

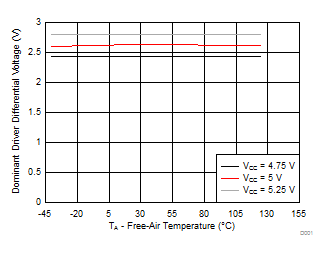

vs Free-Air Temperature

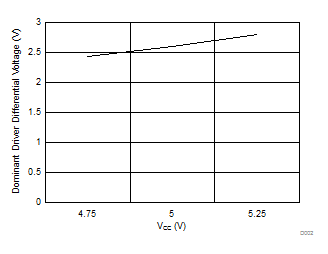

vs. Supply Voltage
