7 Parameter Measurement Information

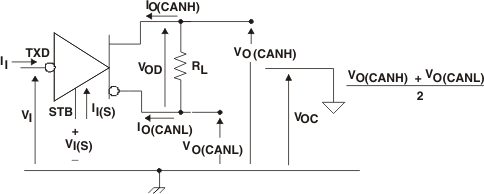

Figure 3. Driver Voltage, Current, and Test Definition

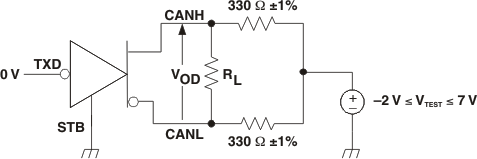

Figure 4. Driver VOD Test Circuit
Figure 5. Driver Test Circuit and Voltage Waveforms
Figure 6. Receiver Voltage and Current Definitions

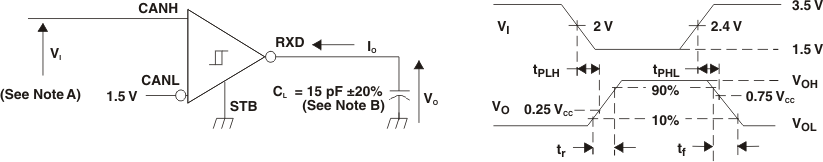

A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.
Figure 7. Receiver Test Circuit and Voltage Waveforms
Table 1. Differential Input Voltage Threshold Test
| INPUT | OUTPUT R |
|||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | ||
| –11.1 V | –12 V | 900 mV | L | VOL |
| 12 V | 11.1 V | 900 mV | L | |
| –6 V | –12 V | 6 V | L | |
| 12 V | 6 V | 6 V | L | |
| –11.5 V | –12 V | 500 mV | H | VOH |
| 12 V | 11.5 V | 500 mV | H | |
| –12 V | –6 V | 6 V | H | |
| 6 V | 12 V | 6 V | H | |
| Open | Open | X | H | |
A. CL = 100 pF and includes instrumentation and fixture capacitance within ±20%.
B. All VI input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.

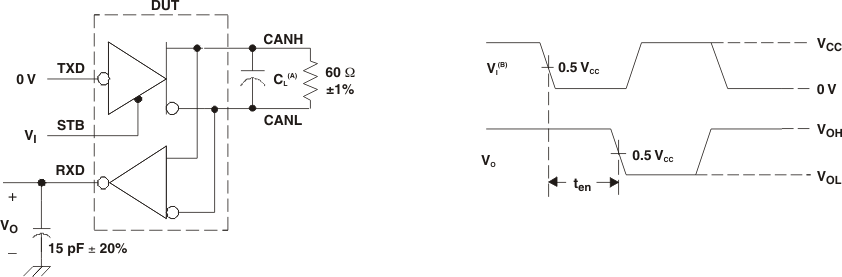

Figure 8. ten Test Circuit and Waveforms

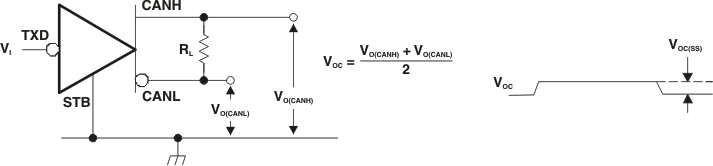

NOTE:
All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.
A. CL = 100 pF and includes instrumentation and fixture capacitance within ±20%.
B. All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.

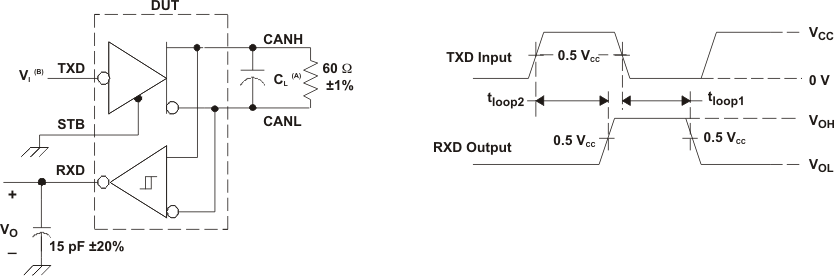

Figure 10. t(LOOP) Test Circuit and Waveforms

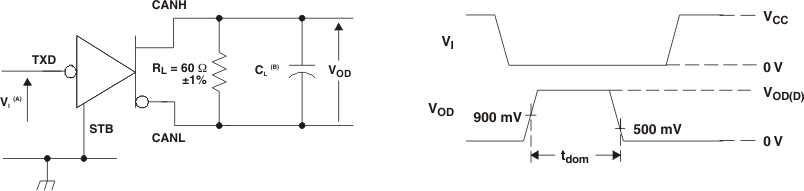

A. All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 500 Hz, 50% duty cycle.
B. CL = 100 pF includes instrumentation and fixture capacitance within ±20%.
Figure 11. Dominant Time-Out Test Circuit and Waveforms

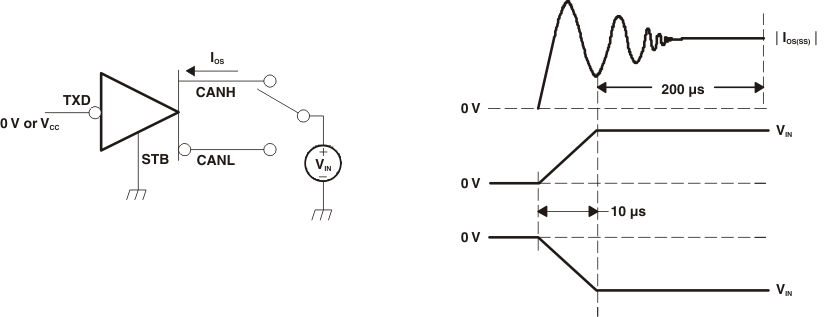

Figure 12. Driver Short-Circuit Current Test and Waveforms

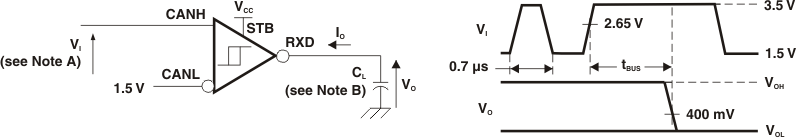

A. For VI bit width ≤ 0.7 µs, VO = VOH. For VI bit width ≥ 5 µs, VO = VOL. VI input pulses are supplied from a generator with the following characteristics: tr/tf < 6 ns.
B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 13. tBUS Test Circuit and Waveforms
A. All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr/tf ≤ 6 ns, pulse repetition rate (PRR) = 250 kHz, 50% duty cycle.

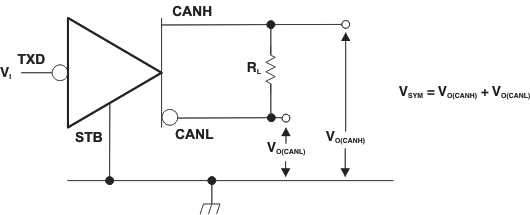

Figure 14. Driver Output Symmetry Test Circuit

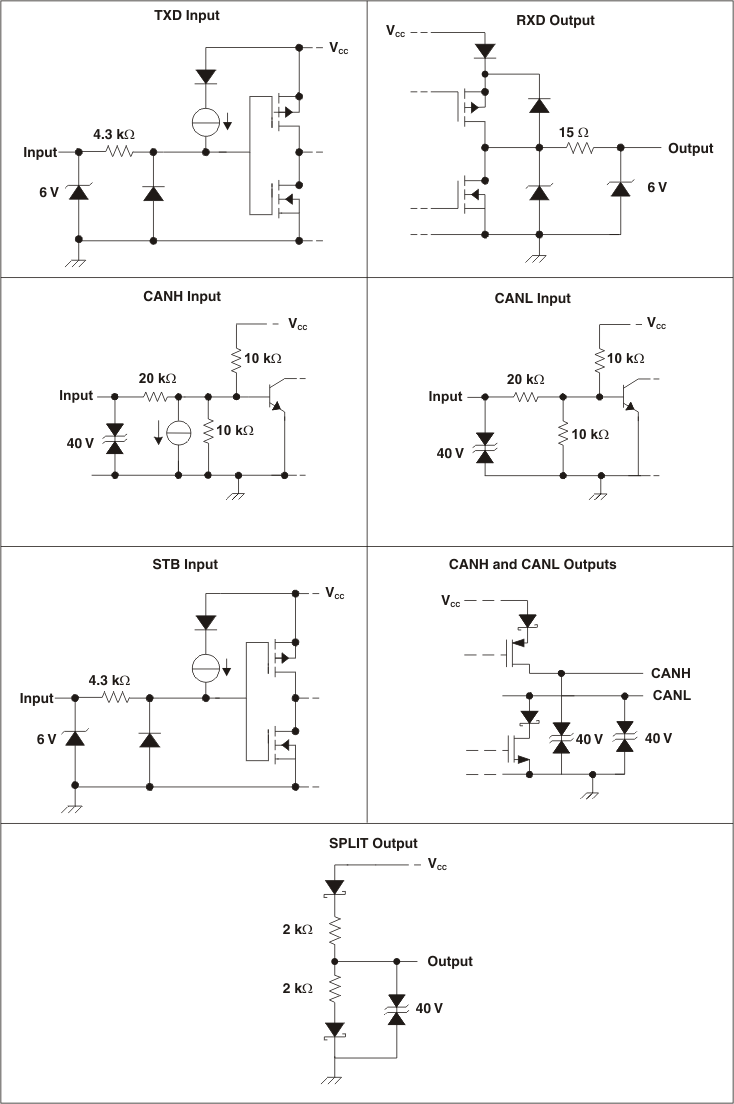

Figure 15. Equivalent Input and Output Schematic Diagrams
