5 Pin Configuration and Functions

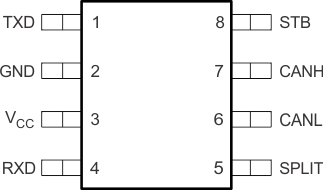

D Package
8-Pin SOIC
Top View
DSG Package
12-Pin VSON
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | SOIC | VSON | ||
| TXD | 1 | 1 | I | CAN transmit data input (low for dominant bus state, high for recessive bus state) |
| GND | 2 | 2 | GND | Ground connection |
| VCC | 3 | 3 | Supply | Transceiver 5-V supply voltage input |
| RXD | 4 | 4 | O | CAN receive data output (low in domonint bus state, high in recessive bus state) |
| SPLIT | 5 | 9 | O | Common-mode stabilization output |
| CANL | 6 | 10 | I/O | Low-level CAN bus line |
| CANH | 7 | 11 | I/O | High-level CAN bus line |
| STB | 8 | 12 | I | Standby mode select pin (active high) |
| NC | — | 5-8 | NC | No connect |
