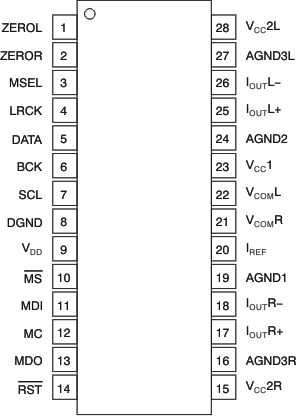

5 Pin Configuration and Functions
DB Package
28-Pin SSOP
(Top View)
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| AGND1 | 19 | — | Analog ground (internal bias) |
| AGND2 | 24 | — | Analog ground (internal bias) |
| AGND3L | 27 | — | Analog ground (left channel DACFF) |
| AGND3R | 16 | — | Analog ground (right channel DACFF) |
| BCK | 6 | Input | Bit clock input(1) |
| DATA | 5 | Input | Serial audio data input(1) |
| DGND | 8 | — | Digital ground |
| IOUTL+ | 25 | Output | Left channel analog current output+ |
| IOUTL– | 26 | Output | Left channel analog current output– |
| IOUTR+ | 17 | Output | Right channel analog current output+ |
| IOUTR– | 18 | Output | Right channel analog current output– |
| IREF | 20 | — | Output current reference bias pin |
| LRCK | 4 | Input | Left and right clock (fS) input(1) |
| MC | 12 | Input | Mode control clock input(1) |
| MDI | 11 | Input | Mode control data input(1) |
| MDO | 13 | Input or Output | Mode control read-back data output(3) |
| MS | 10 | Input or Output | Mode control chip-select input(2); active low |
| MSEL | 3 | Input | I2C/SPI select(1); active low SPI select |
| RST | 14 | Input | Reset(1); active low |
| SCK | 7 | Input | System clock input(1) |
| VCC1 | 23 | — | Analog power supply, 5 V |
| VCC2L | 28 | — | Analog power supply (left channel DACFF), 5 V |
| VCC2R | 15 | — | Analog power supply (right channel DACFF), 5 V |
| VCOML | 22 | — | Left channel internal bias decoupling pin |
| VCOMR | 21 | — | Right channel internal bias decoupling pin |
| VDD | 9 | — | Digital power supply, 3.3 V |
| ZEROL | 1 | Input or Output | Zero flag for left channel(2) |
| ZEROR | 2 | Input or Output | Zero flag for right channel(2) |
(1) Schmitt-trigger input, 5-V tolerant.
(2) Schmitt-trigger input and output. 5-V tolerant input and CMOS output.
(3) Schmitt-trigger input and output. 5-V tolerant input. In I2C mode, this pin becomes an open-drain 3-state output; otherwise, this pin is a CMOS output.
