5.9 Typical Characteristics

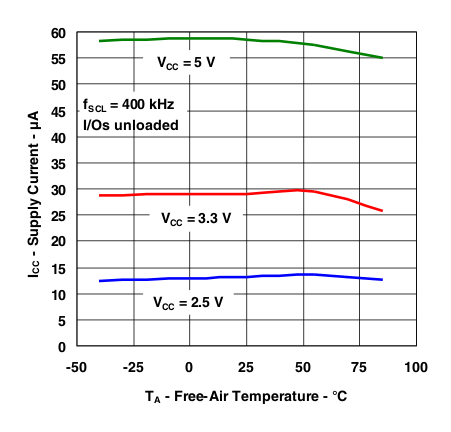

Figure 5-1 Supply Current vs Temperature

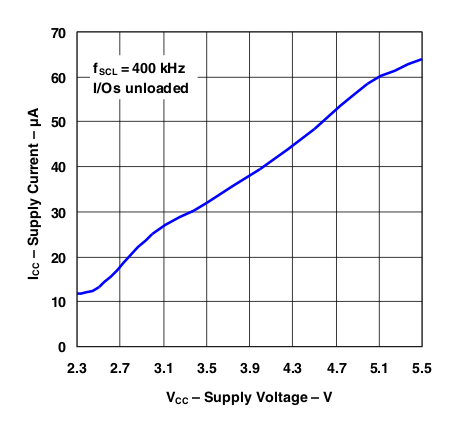

Figure 5-3 Supply Current vs Supply Voltage

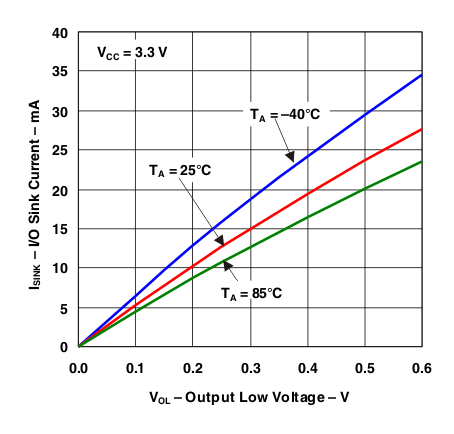

Figure 5-5 I/O Sink Current vs Output Low Voltage

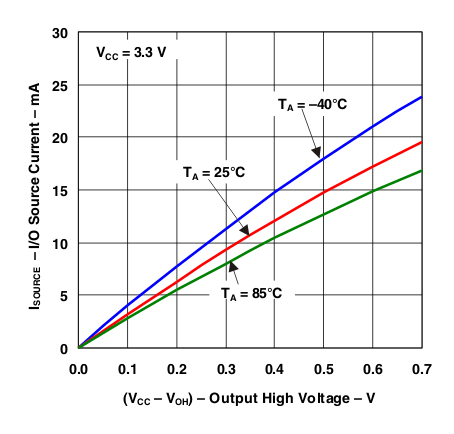

Figure 5-7 I/O Source Current vs Output High Voltage (P7–P1)

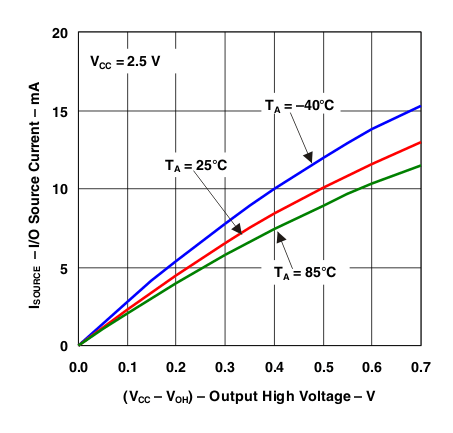

Figure 5-9 I/O Source Current vs Output High Voltage (P7–P1)

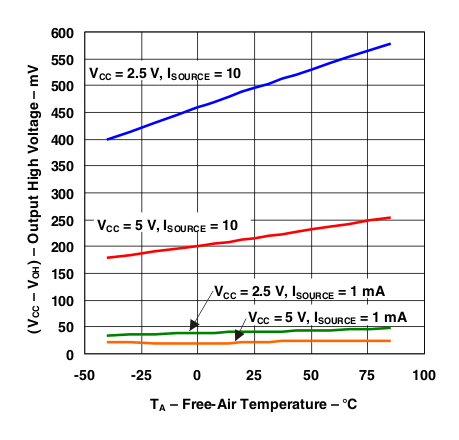

Figure 5-11 Output High Voltage vs Temperature (P7–P1)

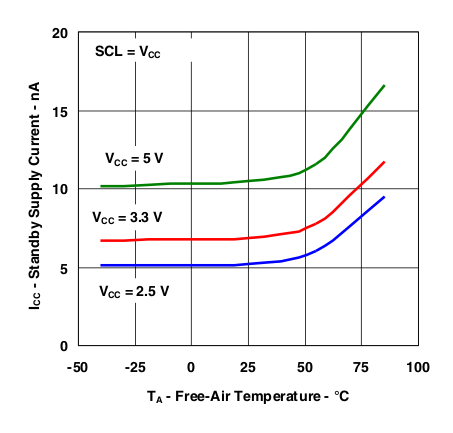

Figure 5-2 Standby Supply Current vs Temperature

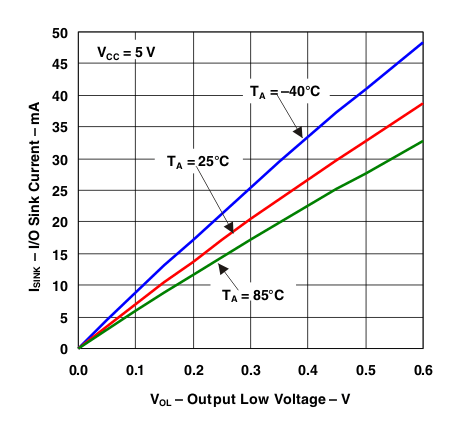

Figure 5-4 I/O Sink Current vs Output Low Voltage

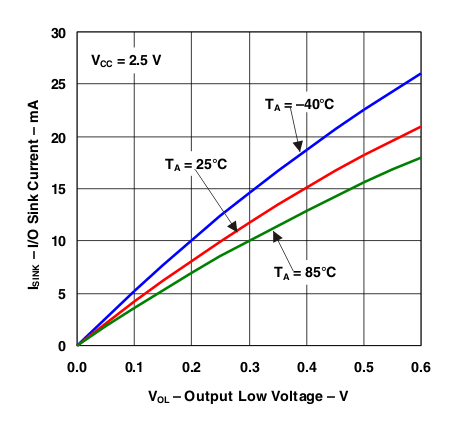

Figure 5-6 I/O Sink Current vs Output Low Voltage

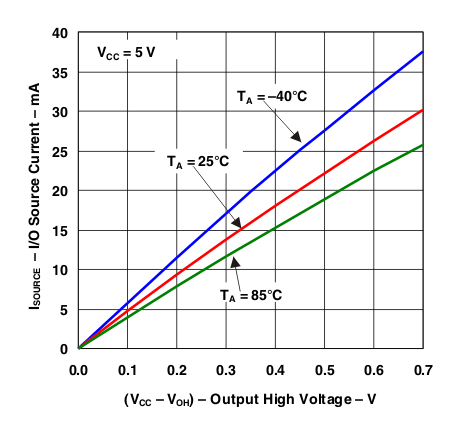

Figure 5-8 I/O Source Current vs Output High Voltage (P7–P1)

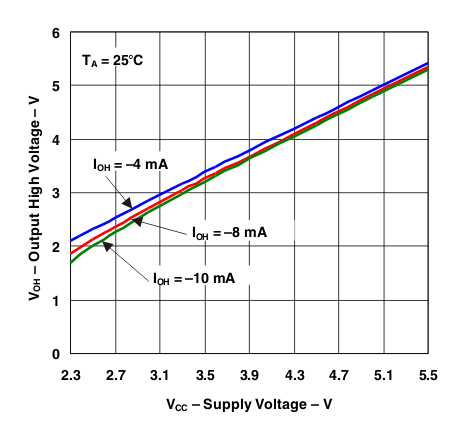

Figure 5-10 Output High Voltage vs Supply Voltage (P7–P1)

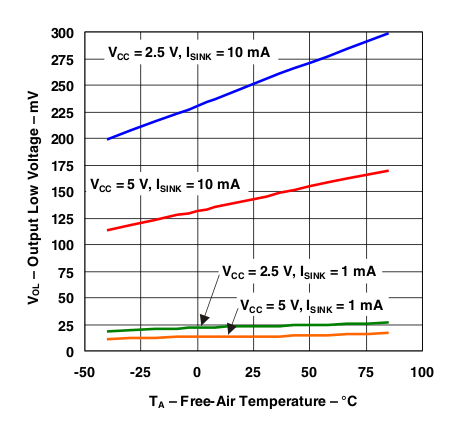

Figure 5-12 Output Low Voltage vs Temperature
