5.9 Typical Characteristics
TA = 25°C (unless otherwise noted)
| fSCL = 400 kHz | I/Os = High or Low Inputs |
| fSCL = 400 kHz | I/Os = High or Low Inputs | TA = 25°C |
| TA = 25°C |
| TA = 25°C |
| fSCL = 0 kHz | I/Os = High or Low Inputs |

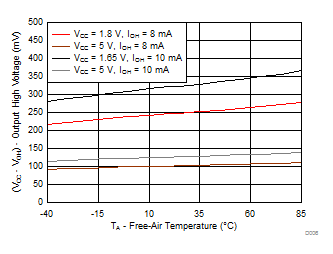

Figure 5-6 Output High Voltage (VCC – VOH) vs Temperature (TA) for P-Ports
| TA = 25°C |
