7.3.22.6.1 OCP Latched Shutdown (OCP_MODE = 00b)
When an OCP event happens in this mode, all MOSFETs are disabled and the nFAULT pin is driven low. The DRIVER_FAULT, OCP and corresponding FET's OCP bits are set to 1b in the status registers. Normal operation resumes (driver operation and the nFAULT pin is released) when the OCP condition clears and a clear fault command is issued through the CLR_FLT bit.

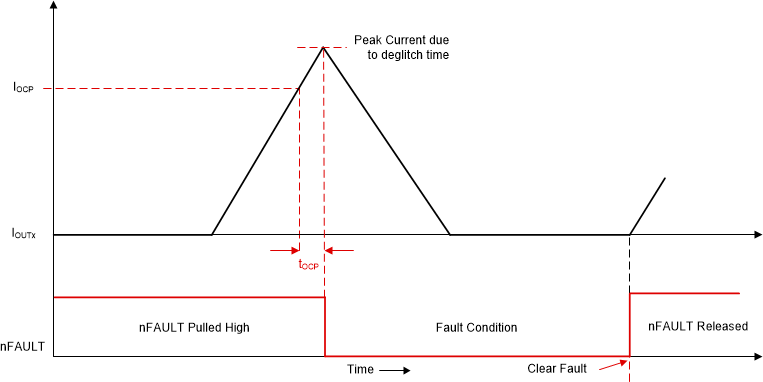

Figure 7-54 Overcurrent Protection - Latched Shutdown Mode
