7.2.3 應用曲線

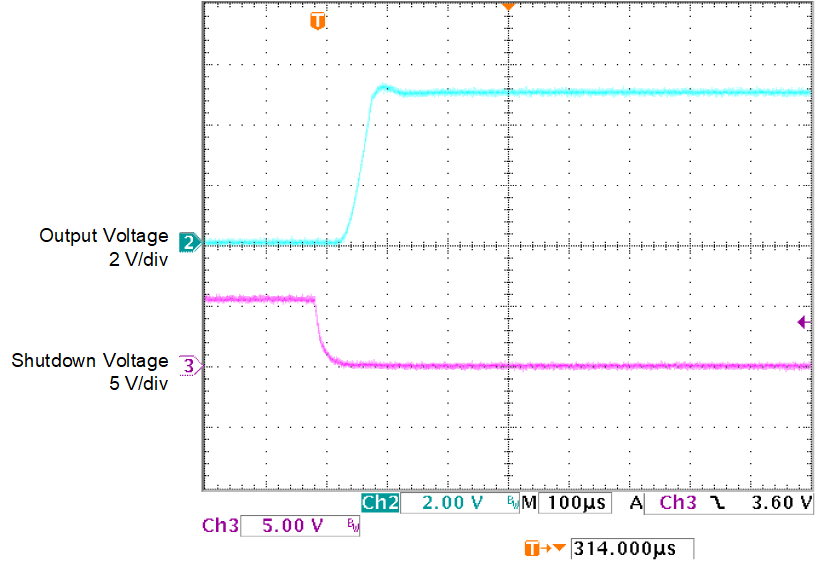

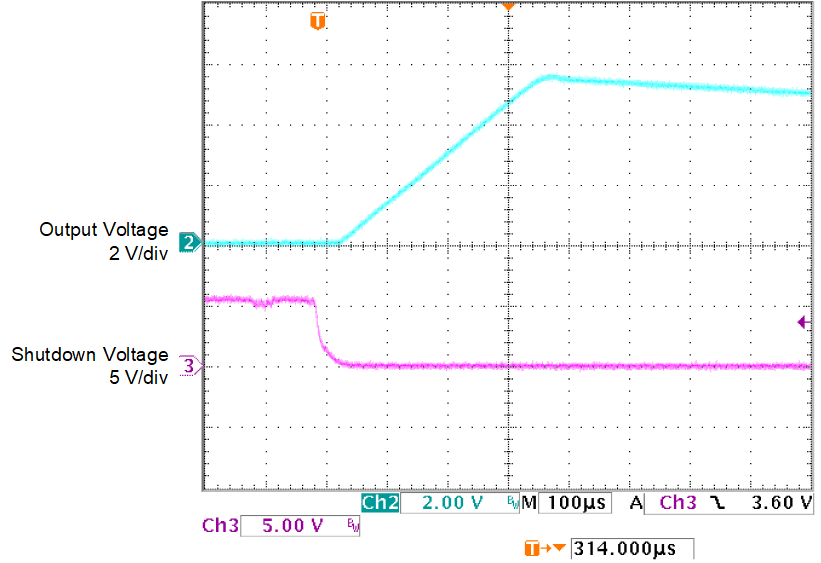

| VOUT = 5V，CL = 10μF |

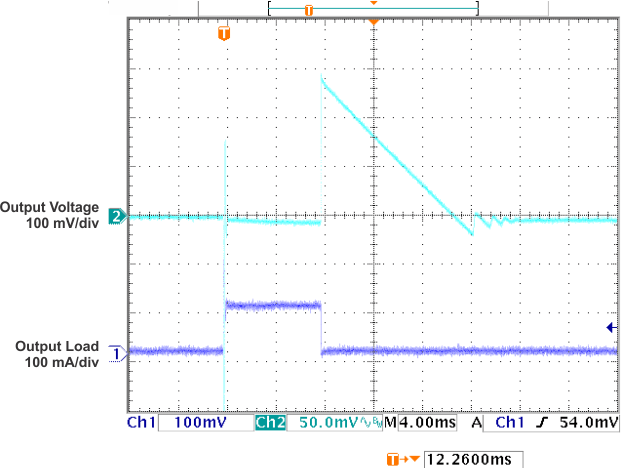

| VIN = 6V，VOUT = 5V，IL = 0mA 至 100mA，CL = 1μF |
| VIN = 6V，VOUT = 5V，CL = 1μF，IL = 1mA |
| VIN = 6V，VOUT = 5V，CL = 10μF，IL = 1mA |

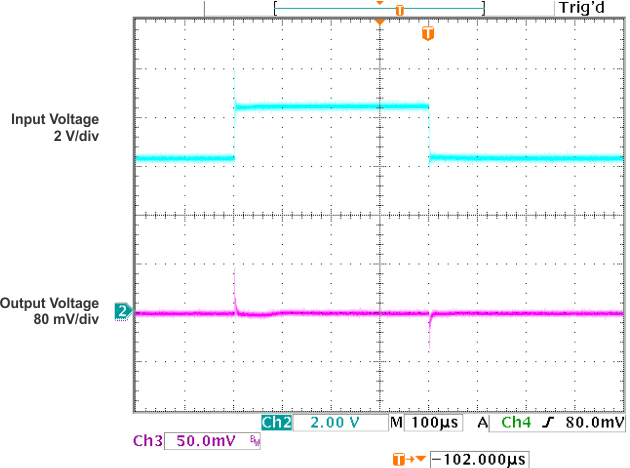

| VIN = 6V 至 8V，VOUT = 5V，CL = 1μF，IL = 100μA |
| VIN = 6V，VOUT = 5V，IL = 0mA 至 100mA，CL = 10μF |
| IL = 1mA，CL = 1μF |
| IL = 1mA，CL = 10μF |
