6.7 Typical Characteristics
VIN = 24V, fSW= 400kHz, TA = 25°C, unless otherwise specified

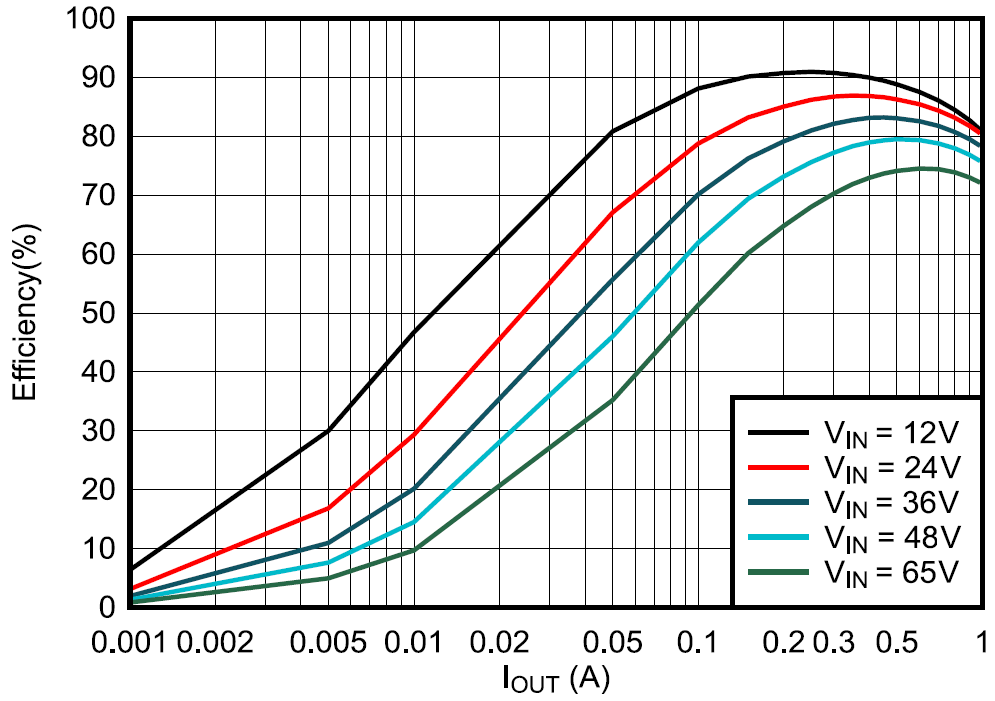

| fSW = 400kHz | VOUT = 3.3V | LMR51610X-Q1 |

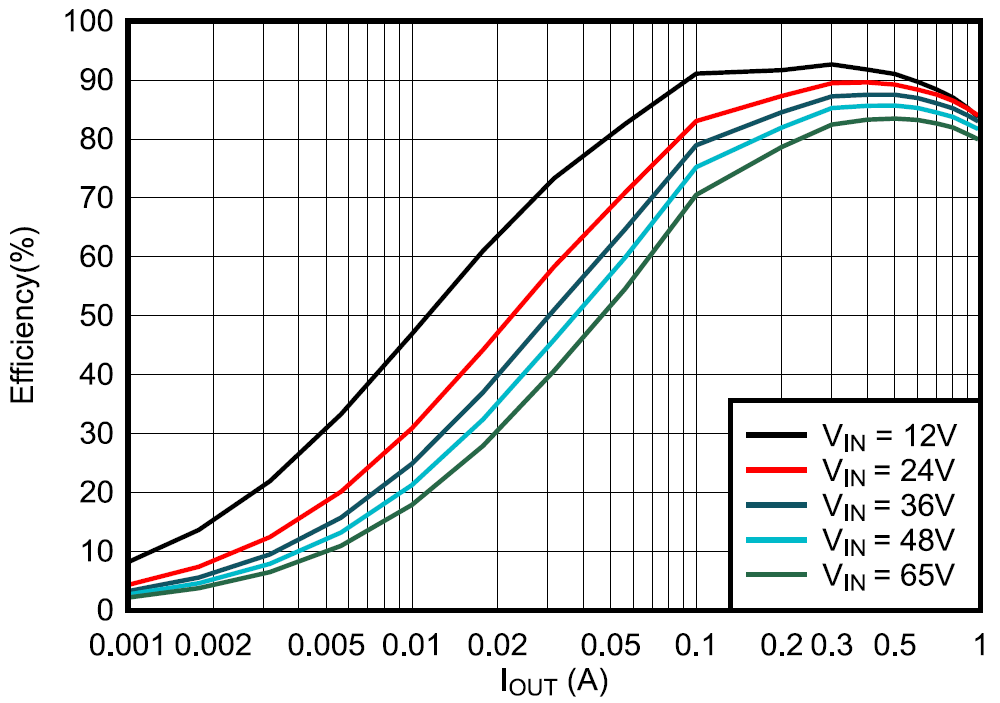

| fSW = 400kHz | VOUT = 5V | LMR51610X-Q1 |
| fSW = 400kHz | VOUT = 12V | LMR51610X-Q1 |

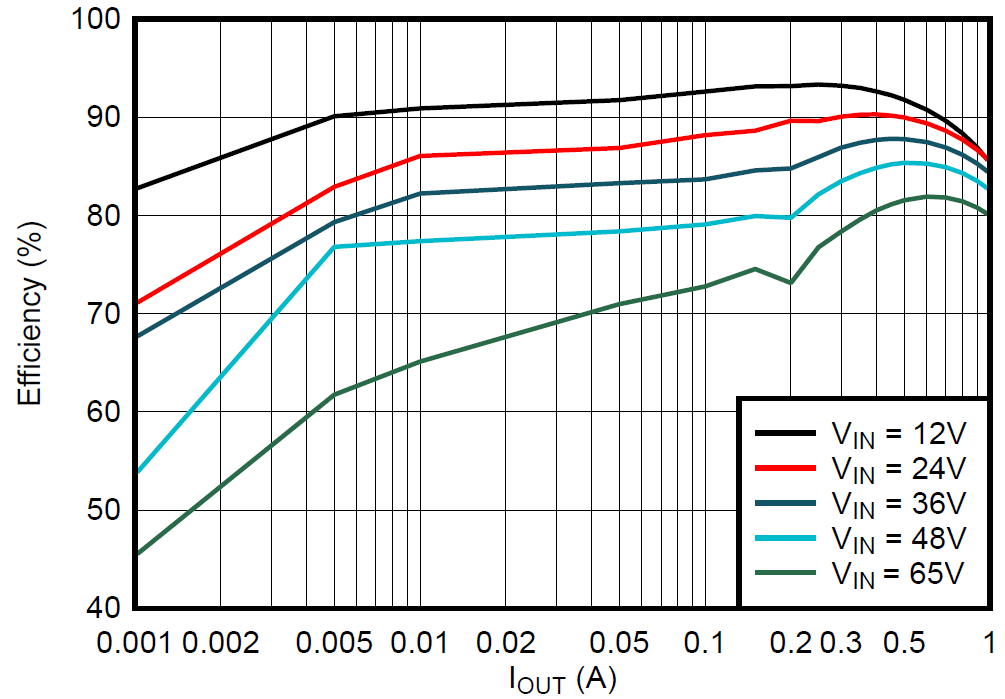

| fsw = 400kHz | VOUT = 5V | LMR51610X-Q1 |
Figure 6-9 VIN Quiescent Current Versus Temperature
Figure 6-11 Reference Voltage Versus Temperature
| fSW =400kHz | VOUT = 3.3V | LMR51610XF-Q1 |
| fSW = 400kHz | VOUT = 5V | LMR51610XF-Q1 |
| fSW = 400kHz | VOUT = 12V | LMR51610XF-Q1 |
| fSW = 400kHz | VOUT = 3.3V | LMR51610X-Q1 |
Figure 6-10 VIN UVLO Versus Temperature
Figure 6-12 HS and LS Current Limit Versus Temperature
