8.2.2.9 Replacing Non Sync Buck Converter
The LMR516xx-Q1 can also be used to replace asynchronous buck converters, which need a rectifying diode in the application circuit. The design works fine with or without a rectifying diode connected to the switch node of the LMR516xx-Q1 as shown in Figure 8-2.

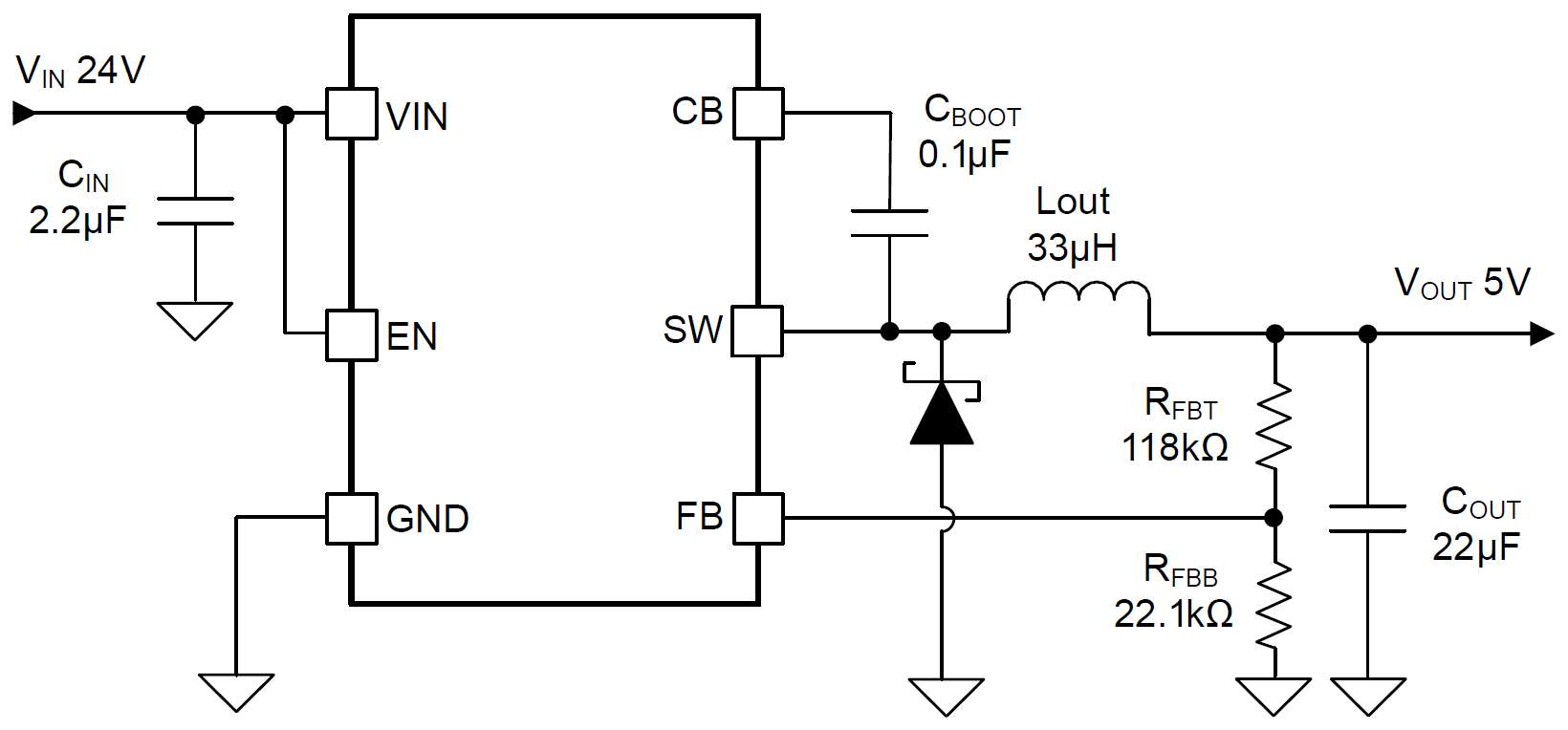

Figure 8-2 Replacing Non-Sync Buck Converter
