7.6 Typical Characteristics
TA= 25°C, VIN = 14 V unless otherwise specified
VO = 32 V (9 LEDs)

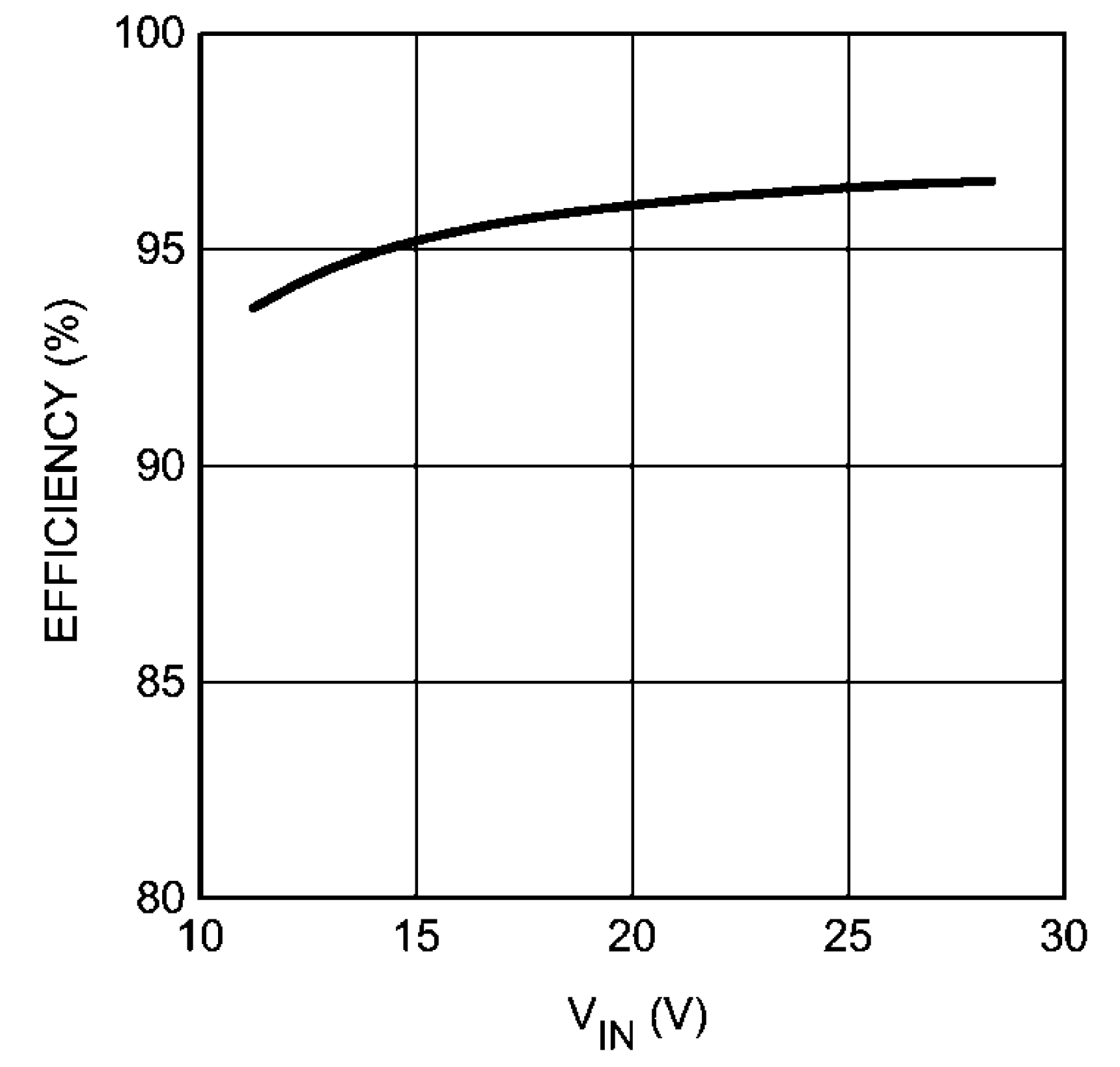

Figure 1. Boost Efficiency vs. Input Voltage
VO = 32V (9 LEDs)

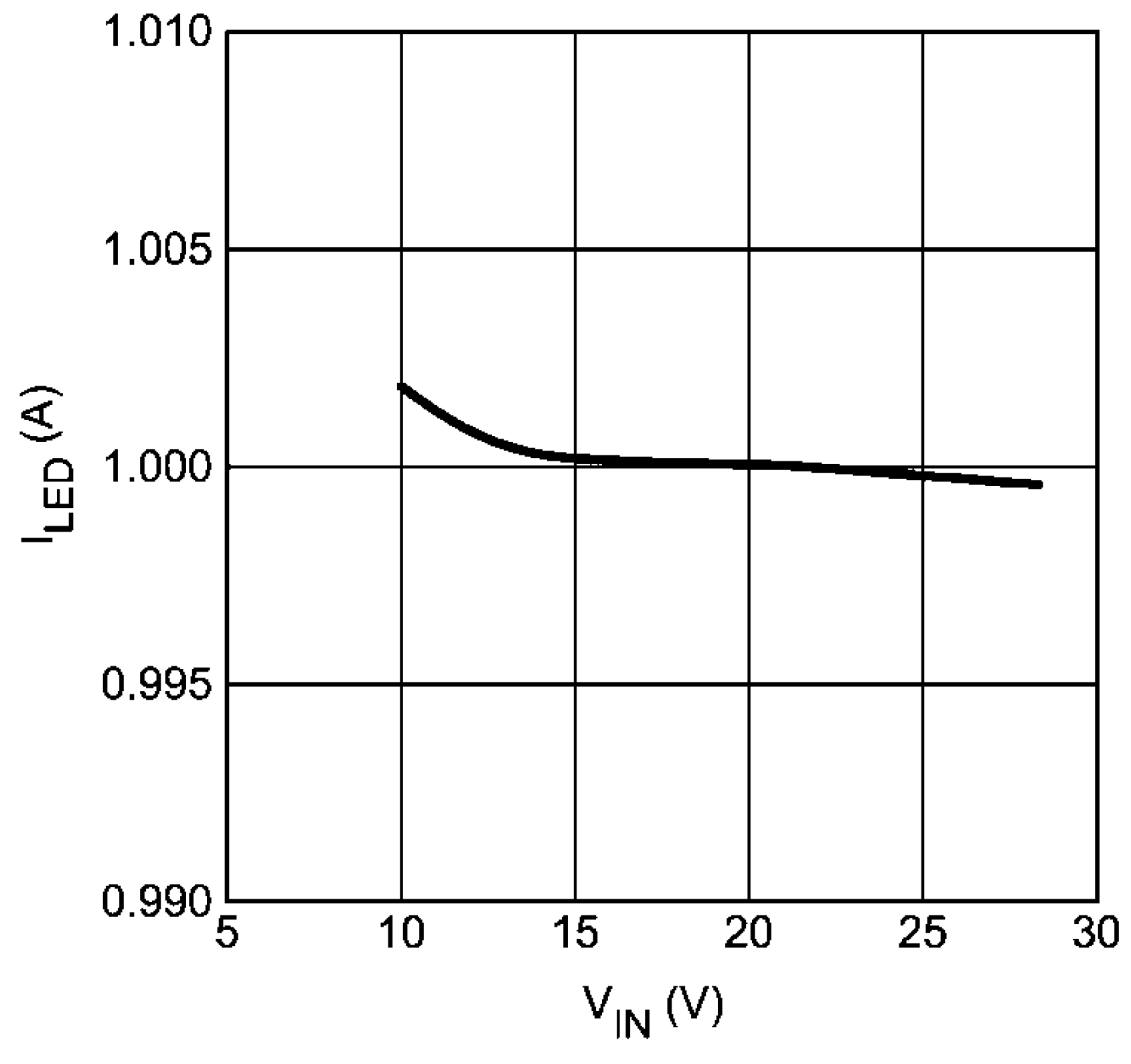

Figure 3. Boost LED Current vs. Input Voltage
VO = 21 V (6 LEDs), VIN = 24 V

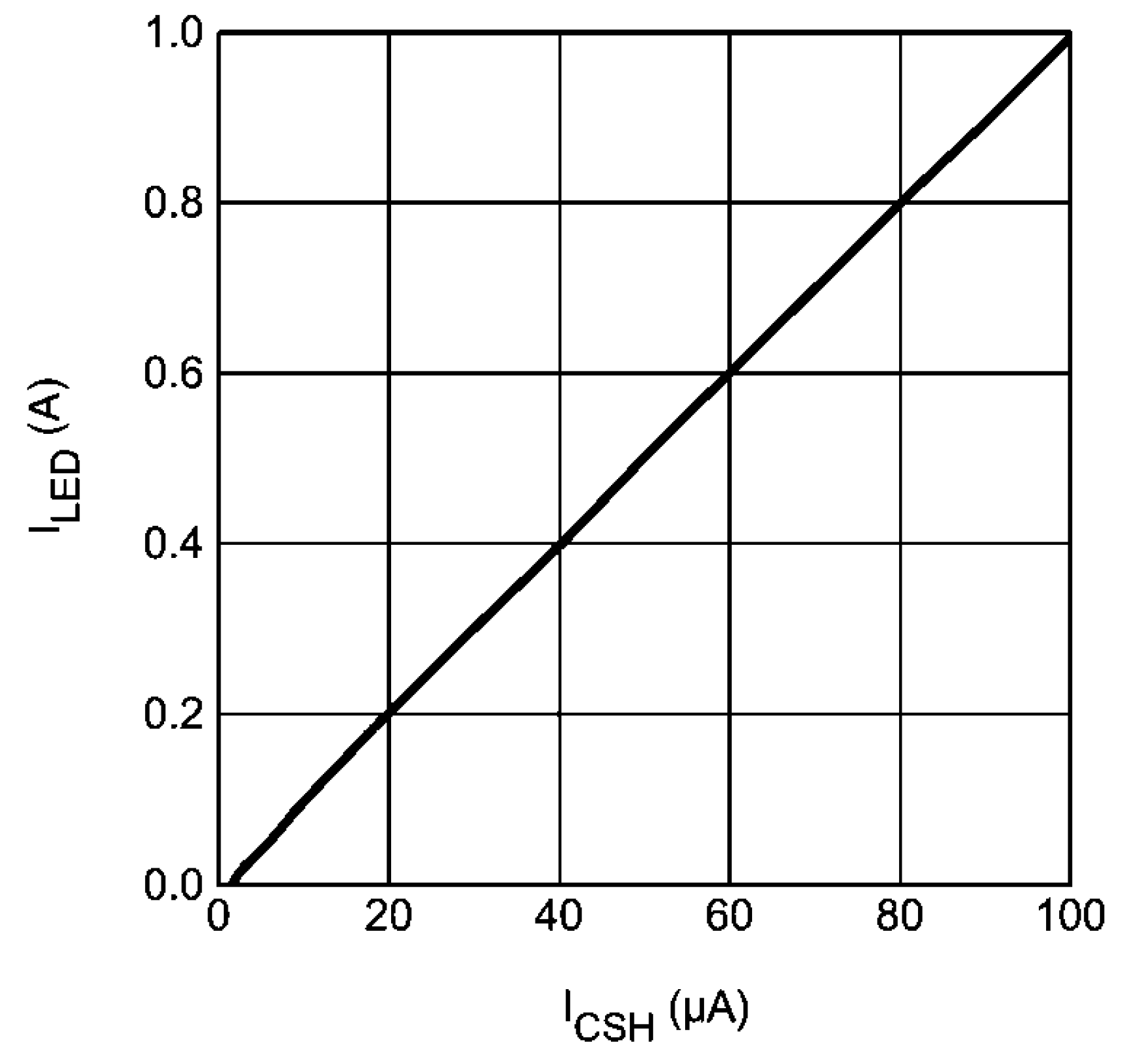

Figure 5. Analog Dimming
Figure 9. VRCT vs Junction Temperature
Figure 11. tON(min) vs Junction Temperature
VO = 21 V (6 LEDs)
Figure 2. Buck-Boost Efficiency vs. Input Voltage
VO = 21 V (6 LEDs)

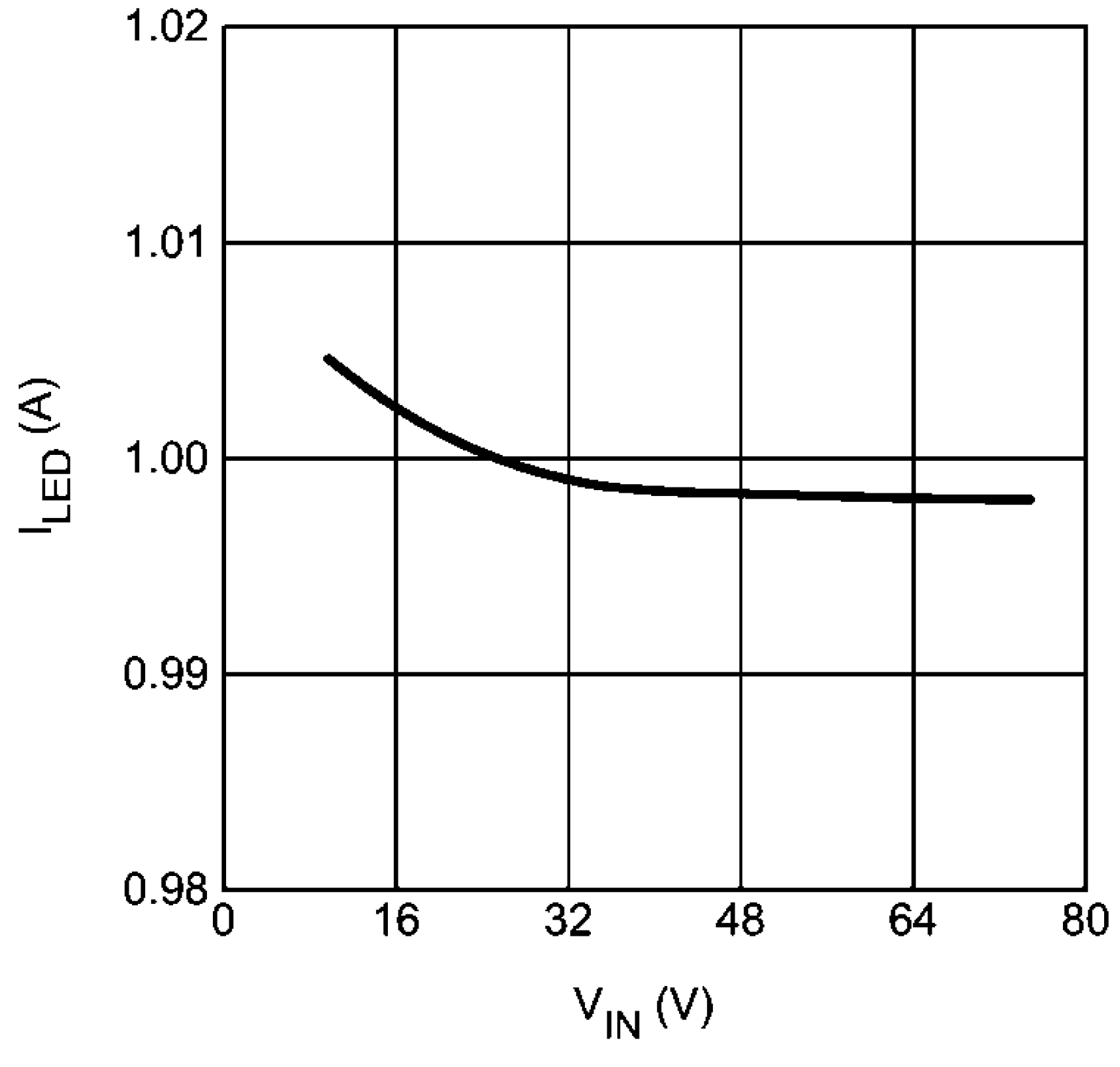

Figure 4. Buck-Boost LED Current vs. Input Voltage
VO = 32 V (9 LEDs), VIN = 24 V

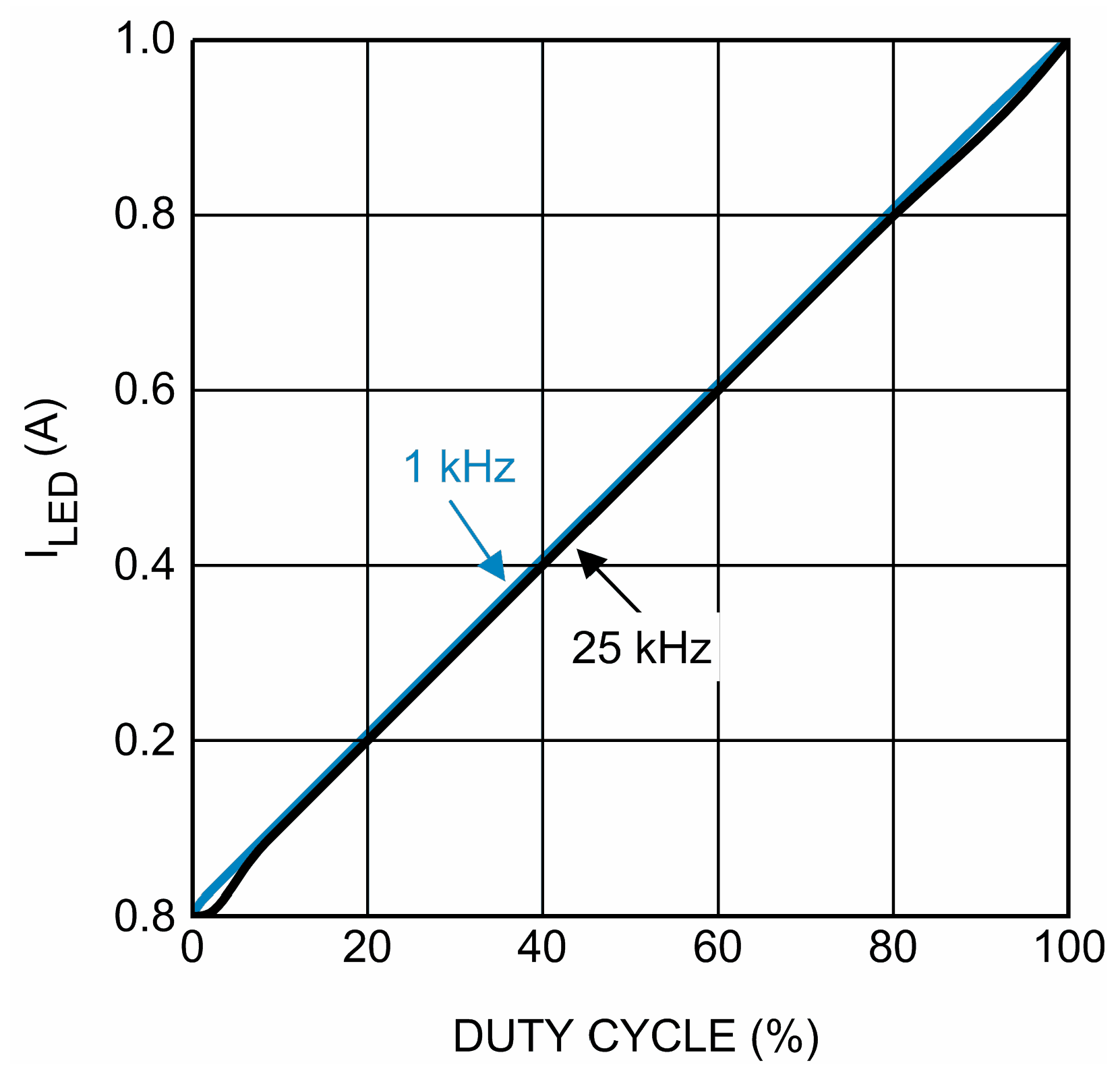

Figure 6. PWM Dimming

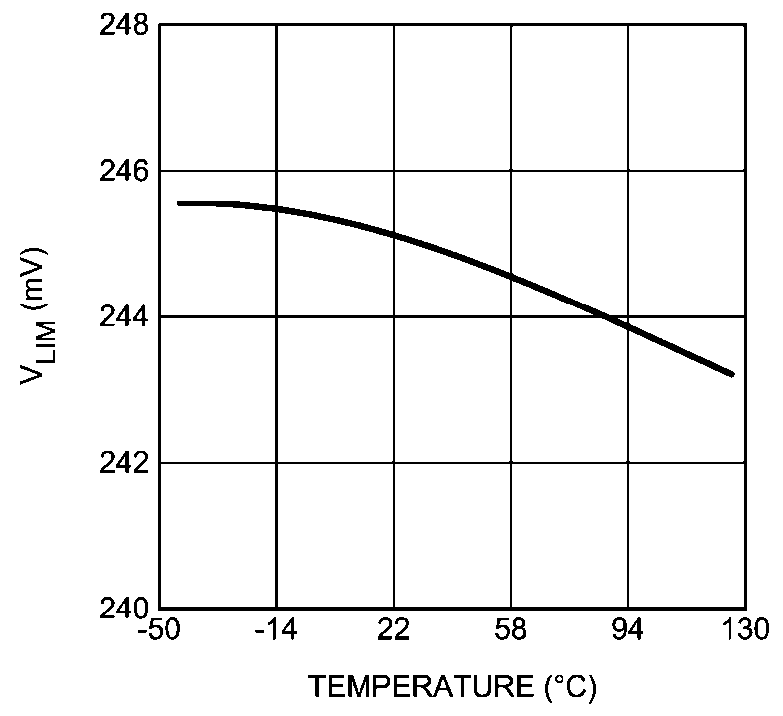

Figure 10. VLIM vs Junction Temperature
