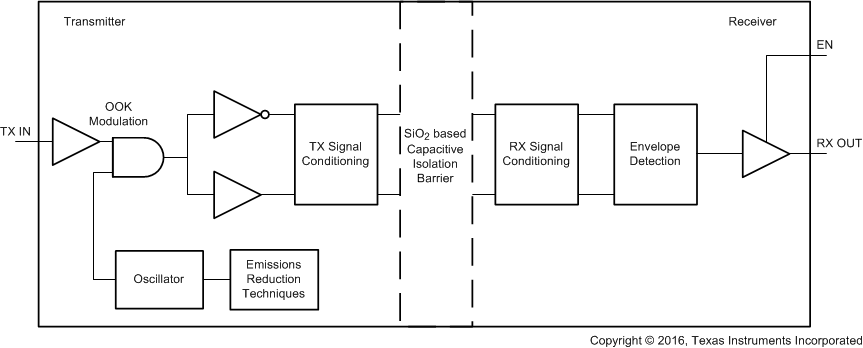

8.2 Functional Block Diagram
Figure 8-1 Conceptual Block Diagram of a Digital Capacitive Isolator#SLLSEP46139 shows a conceptual detail of how the ON-OFF keying scheme works.

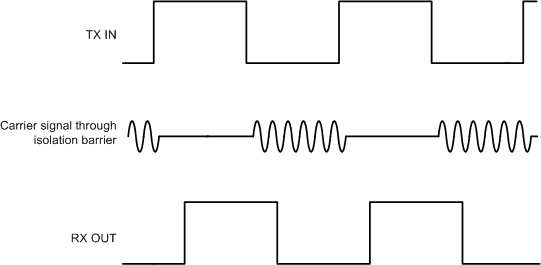

Figure 8-2 On-Off Keying (OOK) Based Modulation Scheme
