9.2.3 Application Curve
The following typical eye diagrams of the ISO6731-Q1 family of devices indicates low jitter and wide open eye at the maximum data rate of 50 Mbps.
Figure 9-3 Eye

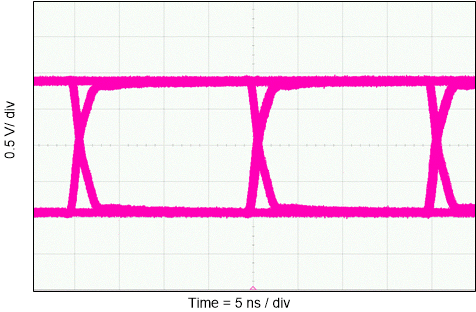

Diagram at 50 Mbps PRBS 216 – 1, 5 V and 25°C

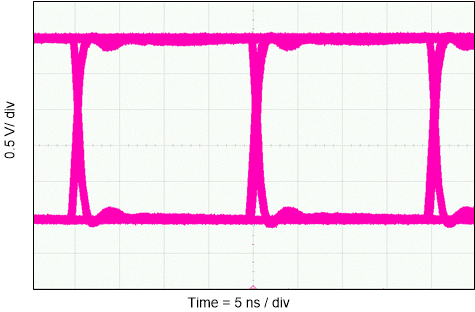

Figure 9-5 Eye
Diagram at 50 Mbps PRBS 216 – 1, 2.5 V and 25°C

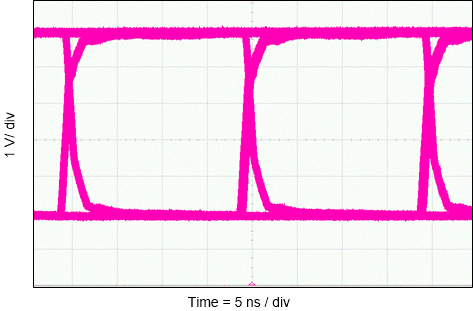

Figure 9-4 Eye
Diagram at 50 Mbps PRBS 216 – 1, 3.3 V and 25°C

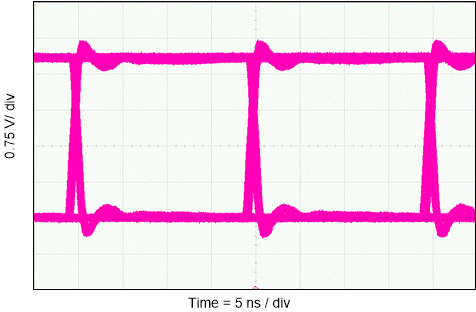

Figure 9-6 Eye
Diagram at 50 Mbps PRBS 216 – 1, 1.8 V and 25°C
