7.12 Typical Characteristics

V_CC2 = 30 V

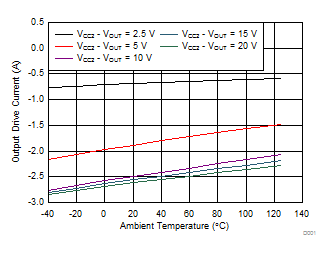

Figure 7-4 Output High Drive Current vs Temperature

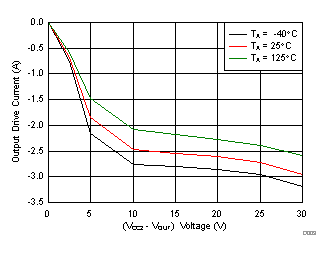

Figure 7-6 Output High Drive Current vs Output Voltage

Unipolar: V_CC2 – V_EE2 = V_CC2 – GND2

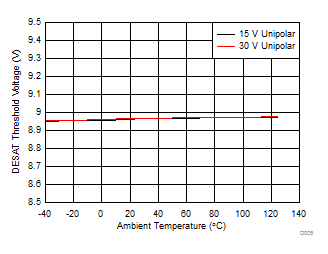

Figure 7-8 DESAT Threshold Voltage vs Temperature

V_CC2 = 30 V

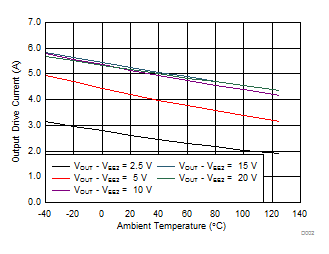

Figure 7-5 Output Low Drive Current vs Temperature

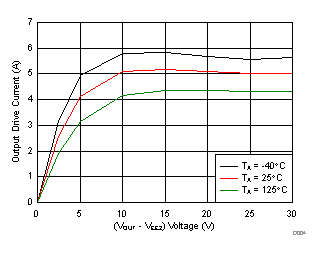

Figure 7-7 Output Low Drive Current vs Output Voltage

C_L = 1 nF	R_G = 0 Ω
V_CC2 – V_EE2 = V_CC2 – GND2 = 20 V

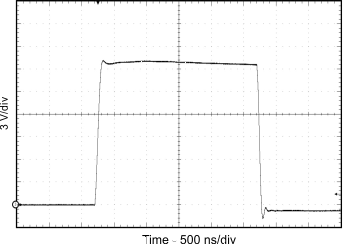

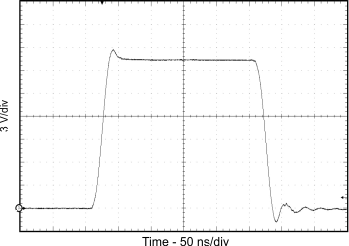

Figure 7-9 OUT Transient Waveform

C_L = 10 nF	R_G = 0 Ω
V_CC2 – V_EE2 = V_CC2 – GND2 = 20 V

Figure 7-11 OUT Transient Waveform

C_L = 100 nF	R_G = 0 Ω
V_CC2 – V_EE2 = V_CC2 – GND2 = 20 V

Figure 7-13 OUT Transient Waveform

C_L = 100 nF	R_G = 10 Ω
V_CC2 – V_EE2 = V_CC2 – GND2 = 20 V

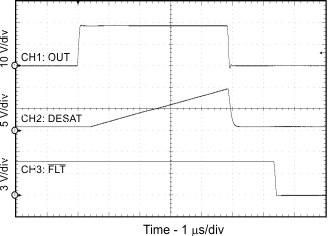

Figure 7-15 OUT Transient Waveform DESAT and FLT

IN+ = Low

IN– = Low

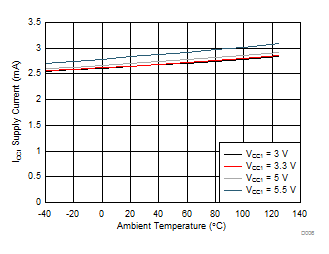

Figure 7-17 I_CC1 Supply Current vs Temperature

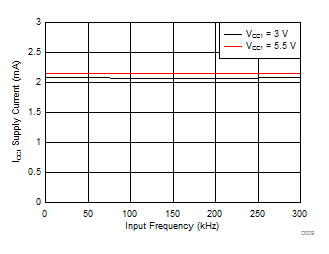

Figure 7-19 I_CC1 Supply Current vs Input Frequency

R_G = 10 Ω, 20 kHz

Figure 7-21 I_CC2 Supply Current vs Load Capacitance

C_L = 1 nF

R_G = 0 Ω

V_CC2 = 15 V

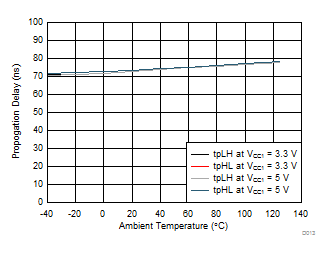

Figure 7-23 V_CC2 Propagation Delay vs Temperature

R_G = 0 Ω

V_CC1 = 5 V

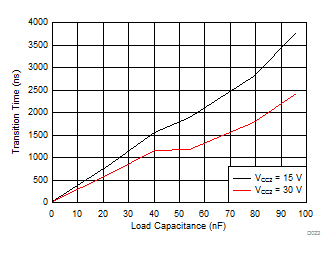

Figure 7-25 t_r Rise Time vs Load Capacitance

R_G = 10 Ω

V_CC1 = 5 V

Figure 7-27 t_r Rise Time vs Load Capacitance

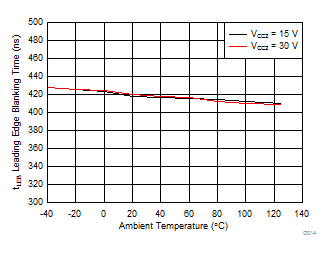

Figure 7-29 Leading Edge Blanking Time With Temperature

C_L = 1 nF

Figure 7-31 DESAT Sense to FLT Low Delay vs Temperature

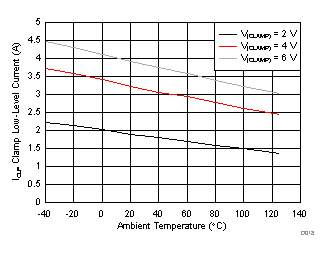

Figure 7-33 Miller Clamp Current vs Temperature

Figure 7-35 V_{CLP_CLAMP} - Short Circuit Clamp Voltage on Clamp Across Temperature

V_CC2 = 15 V

DESAT = 6 V

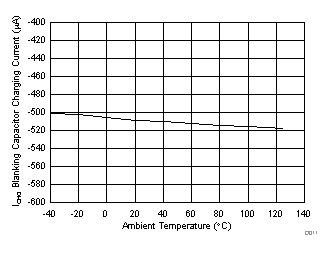

Figure 7-37 Blanking Capacitor Charging Current vs Temperature

C_L = 1 nF	R_G = 10 Ω
V_CC2 – V_EE2 = V_CC2 – GND2 = 20 V

Figure 7-10 OUT Transient Waveform

C_L = 10 nF	R_G = 10 Ω
V_CC2 – V_EE2 = V_CC2 – GND2 = 20 V

Figure 7-12 OUT Transient Waveform

C_L = 100 nF	R_G = 10 Ω
V_CC2 – V_EE2 = V_CC2 – GND2 = 20 V

Figure 7-14 OUT Transient Waveform

IN+ = High

IN– = Low

Figure 7-16 I_CC1 Supply Current vs Temperature

Input Frequency = 1 kHz

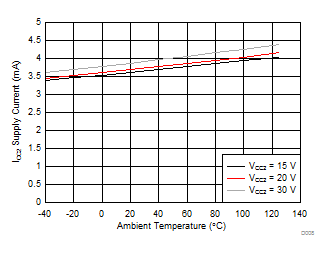

Figure 7-18 I_CC2 Supply Current vs Temperature

no C_L

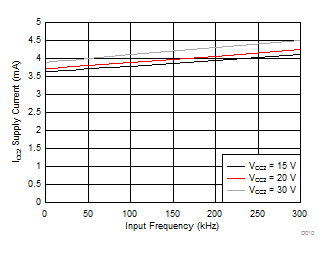

Figure 7-20 I_CC2 Supply Current vs Input Frequency

C_L = 1nF

R_G = 0 Ω

V_CC1 = 5 V

Figure 7-22 V_CC1 Propagation Delay vs Temperature

R_G = 10 Ω

V_CC1 = 5 V

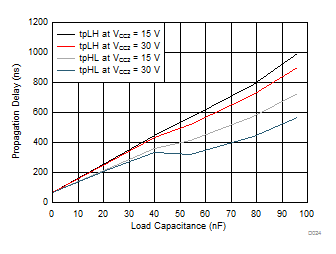

Figure 7-24 Propagation Delay vs Load Capacitance

R_G = 0 Ω

V_CC1 = 5 V

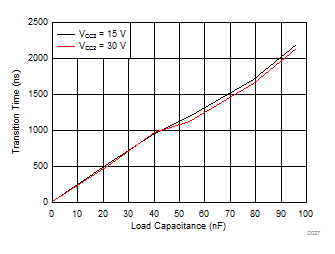

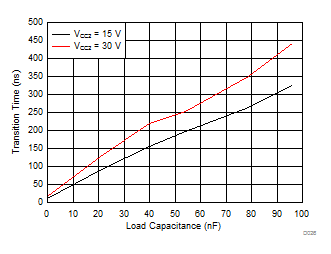

Figure 7-26 t_f Fall Time v. Load Capacitance

R_G = 10 Ω

V_CC1 = 5 V

Figure 7-28 t_f Fall Time vs Load Capacitance

C_L = 10 nF

Figure 7-30 DESAT Sense to V_OUT 10% Delay vs Temperature

Figure 7-32 Reset to Fault Delay Across Temperature

Figure 7-34 Active Pulldown Voltage vs Temperature

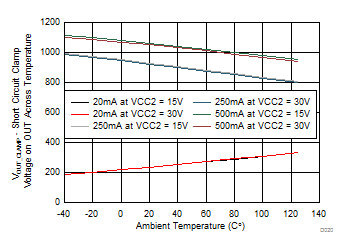

Figure 7-36 V_{OUT_CLAMP} - Short Circuit Clamp Voltage on OUT Across Temperature
