5.3 Typical MOSFET Characteristics
TA = 25°C (unless otherwise stated)

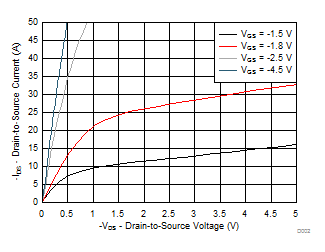

Figure 5-1 Saturation Characteristics

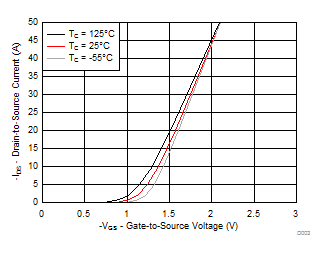

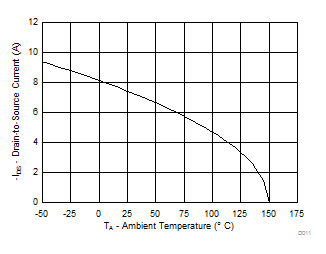

Figure 5-3 Maximum Drain Current vs Temperature

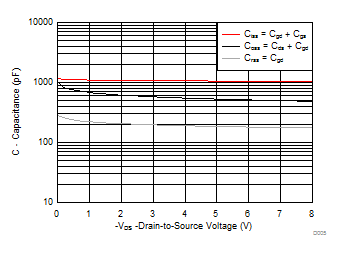

Figure 5-5 Capacitance
Figure 5-7 On-State Resistance vs Gate-to-Source Voltage

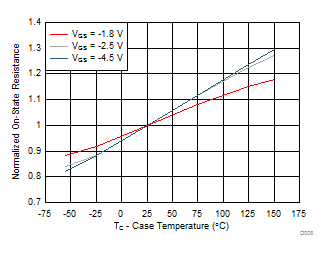

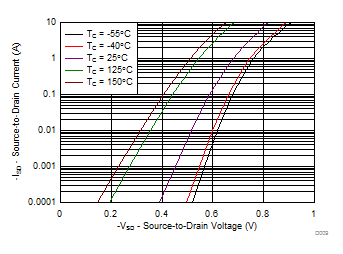

Figure 5-9 Typical Diode Forward Voltage

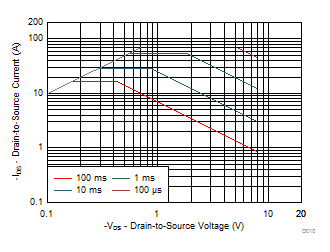

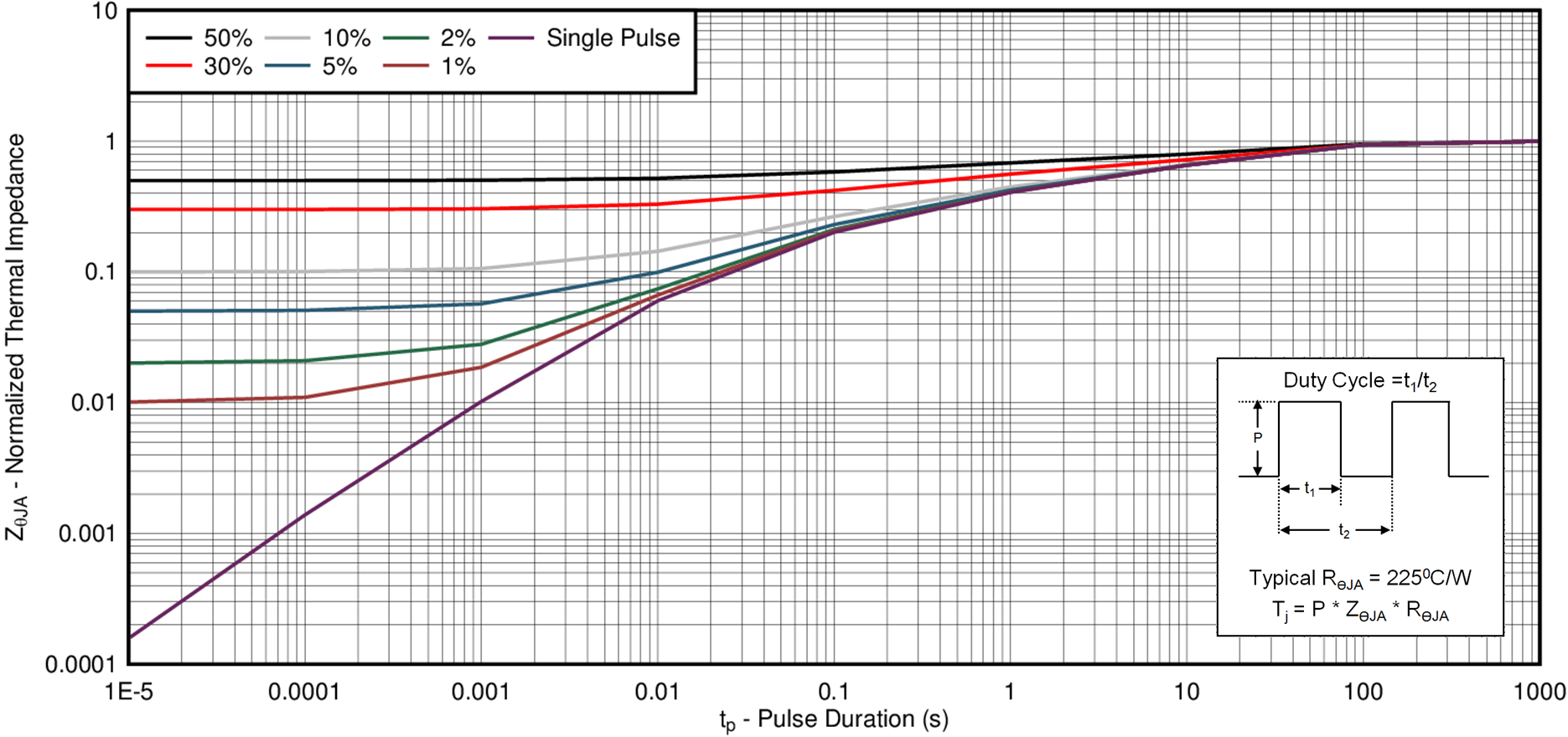

Figure 5-11 Transient Thermal Impedance
| VDS = –5 V |

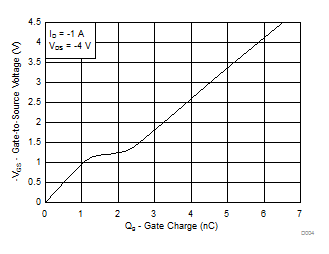

| ID = –1 A | VDS = –4 V |
| ID = –250 μA |
| ID = –1 A |
| Single pulse, typical RθJA = 225°C/W |
