6 Parameter Measurement Information

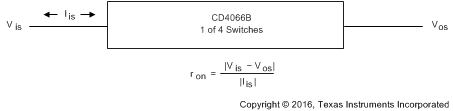

Figure 6-1 Determination of ron as a Test Condition for Control-Input
High-Voltage (VIHC) Specification
Figure 6-2 Channel On-State Resistance Measurement Circuit
Figure 6-3 Typical On Characteristics for One of Four Channels

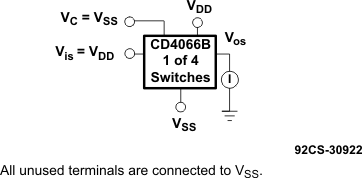

Figure 6-4 Off-Switch Input or Output Leakage
Figure 6-5 Propagation Delay Time Signal Input (Vis) to Signal Output
(Vos)

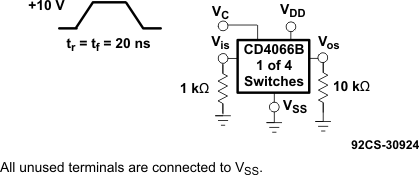

Figure 6-6 Crosstalk-Control Input to Signal Output
All unused
pins are connected to VSS.
Delay is
measured at Vos level of +10% from ground (turn-on) or on-state
output level (turn-off).

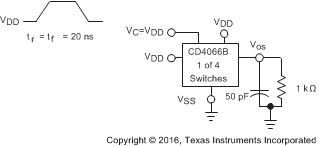

Figure 6-7 Propagation Delay, tPLH, tPHL Control-Signal
Output
All unused
pins are connected to VSS.

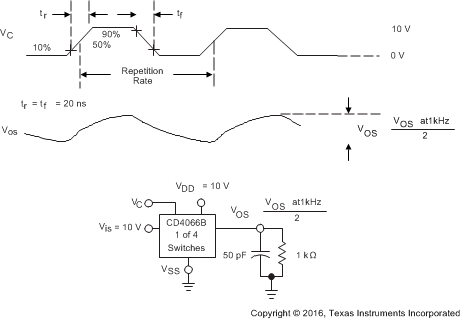

Figure 6-8 Maximum Allowable Control-Input Repetition Rate

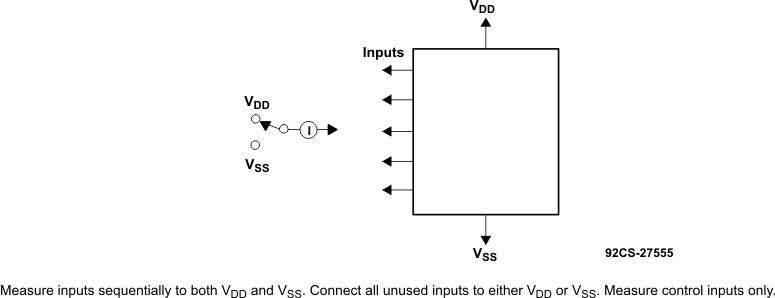

Figure 6-9 Input
Leakage-Current Test Circuit

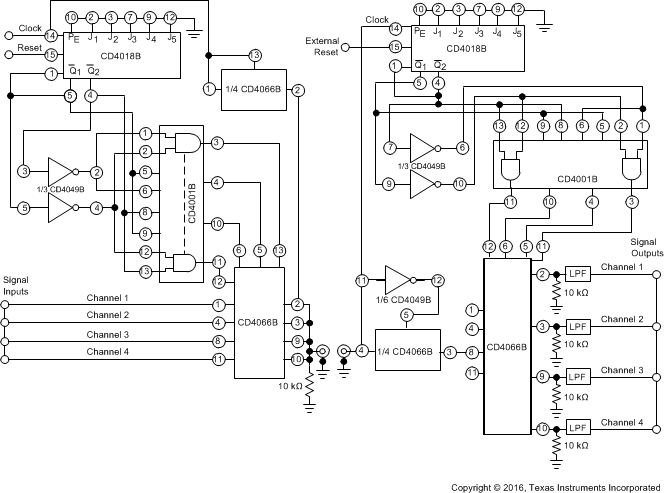

Figure 6-10 Four-Channel PAM Multiplex System Diagram
