2.3 Power Factor and iTHD Versus Load, VAC and Frequency
The power factor value was measured by varying the converter output power in the whole load range, for different VAC, repeated at 400-Hz and 800-Hz mains frequency.

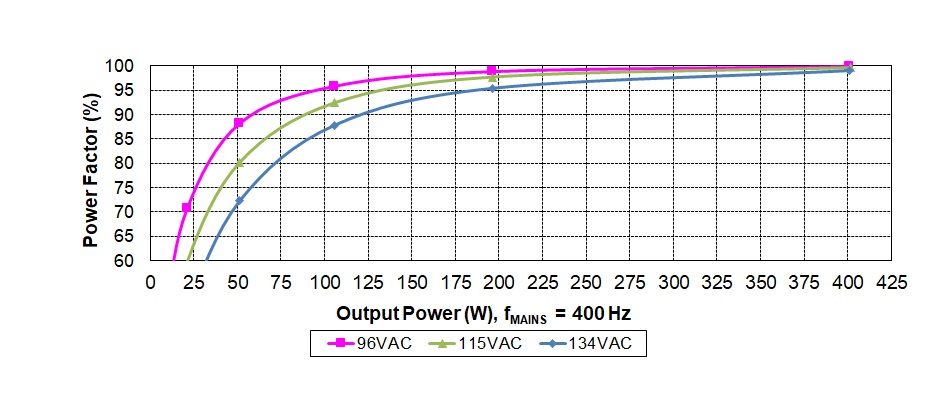

Figure 2-2 Power Factor Versus Output
Power at 400 Hz

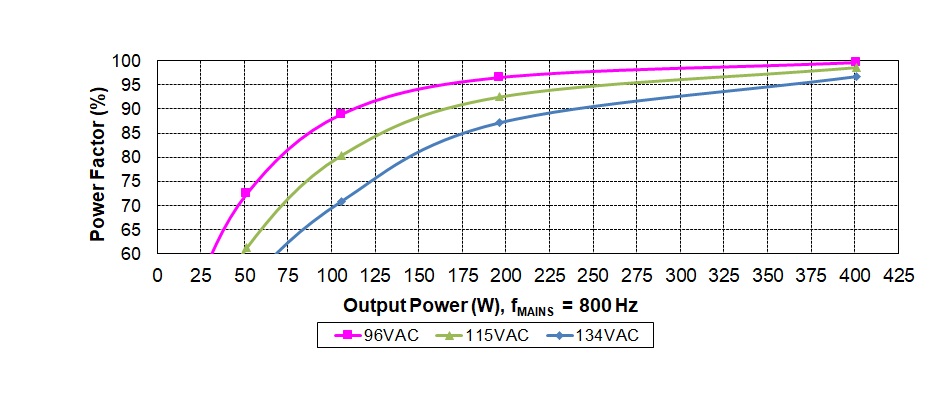

Figure 2-3 Power Factor Versus Output
Power at 800 Hz

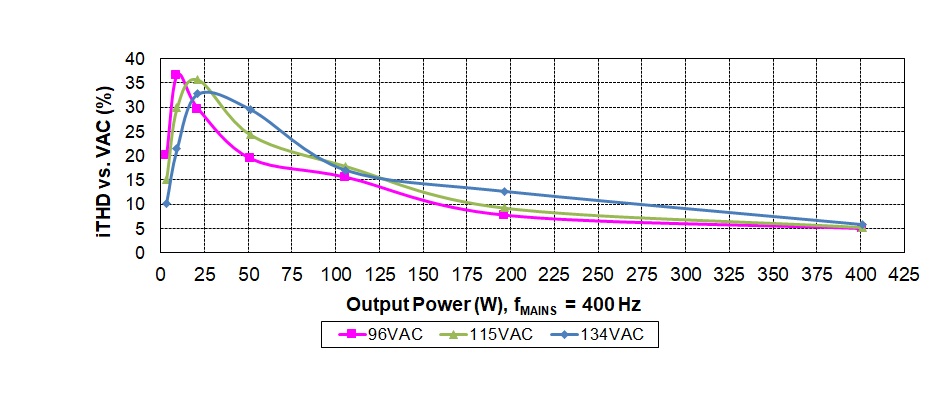

Figure 2-4 iTHD Versus Output Power at
400 Hz

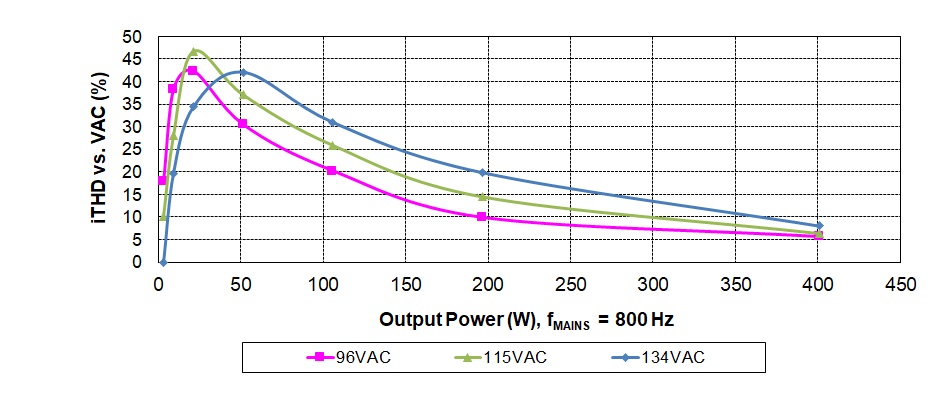

Figure 2-5 iTHD Versus Output Power at
800 Hz
