2 Hardware
The IWR6843LEVM includes four receivers and three transmitters wide field of antennas on the FR4 PCB substrate.
The IWR6843 operates at a 4-GHz bandwidth from 60 to 64 GHz. The IWR6843LEVM has an antenna gain of ~5-6 dBi across different antenna pairs.

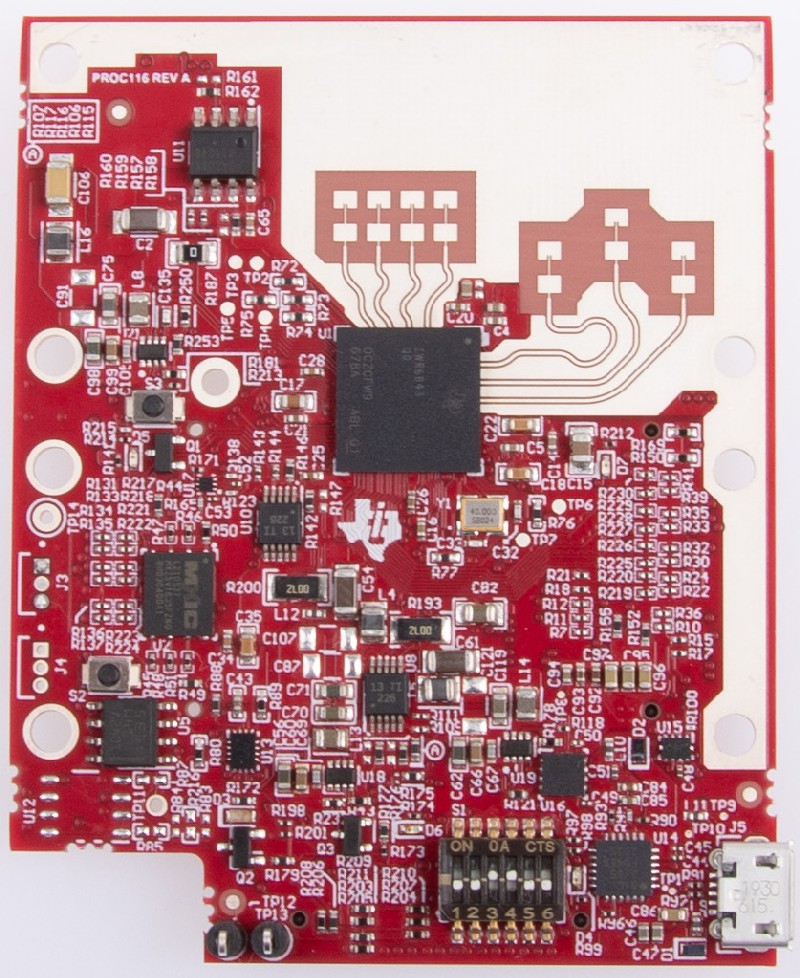

Figure 2-1 IWR6843LEVM Top View

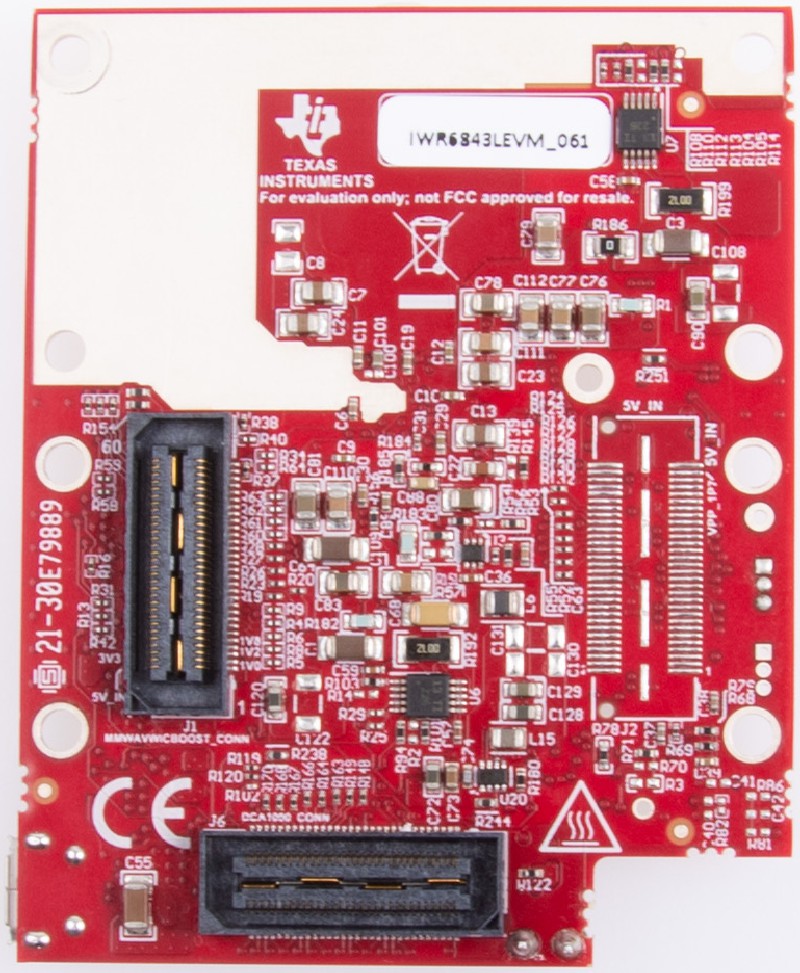

Figure 2-2 IWR6843LEVM Bottom
View

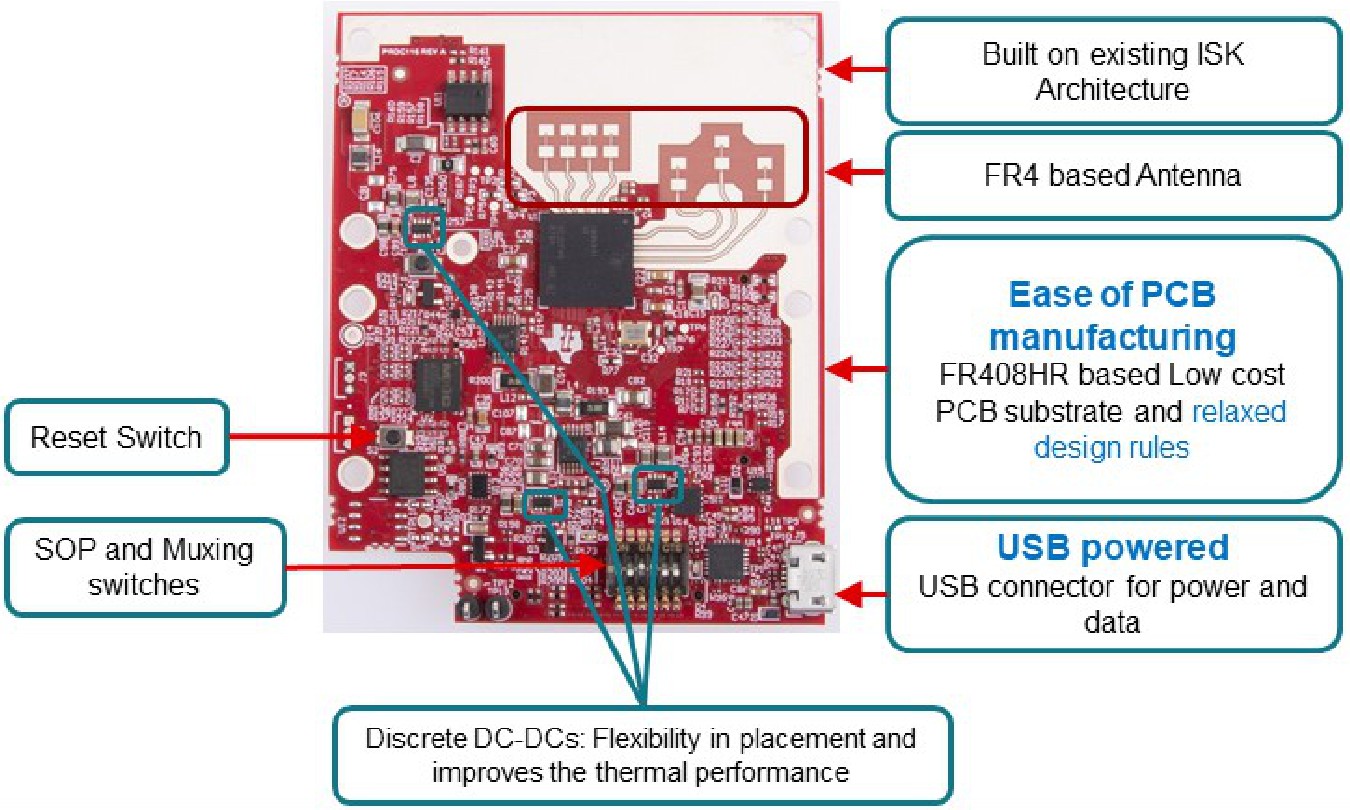

Figure 2-3 Salient features of EVM (top
side)

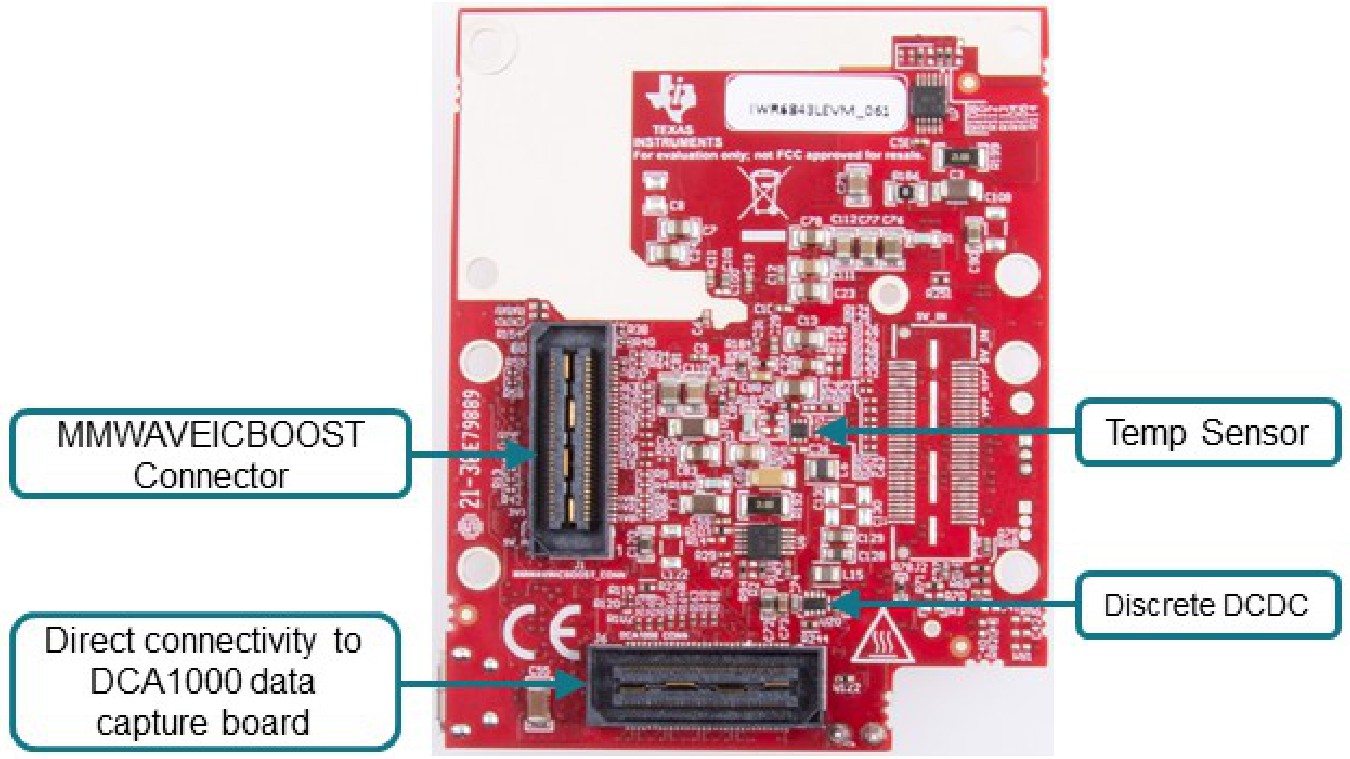

Figure 2-4 Salient features of EVM
(bottom side)
