5 TPS542A52EVM-059 PCB Layout
The PCB layout of the TPS542A52EVM-059 is shown in Figure 5-1 through Figure 5-8. The top, internal, and bottom layers are all 2 oz. copper.

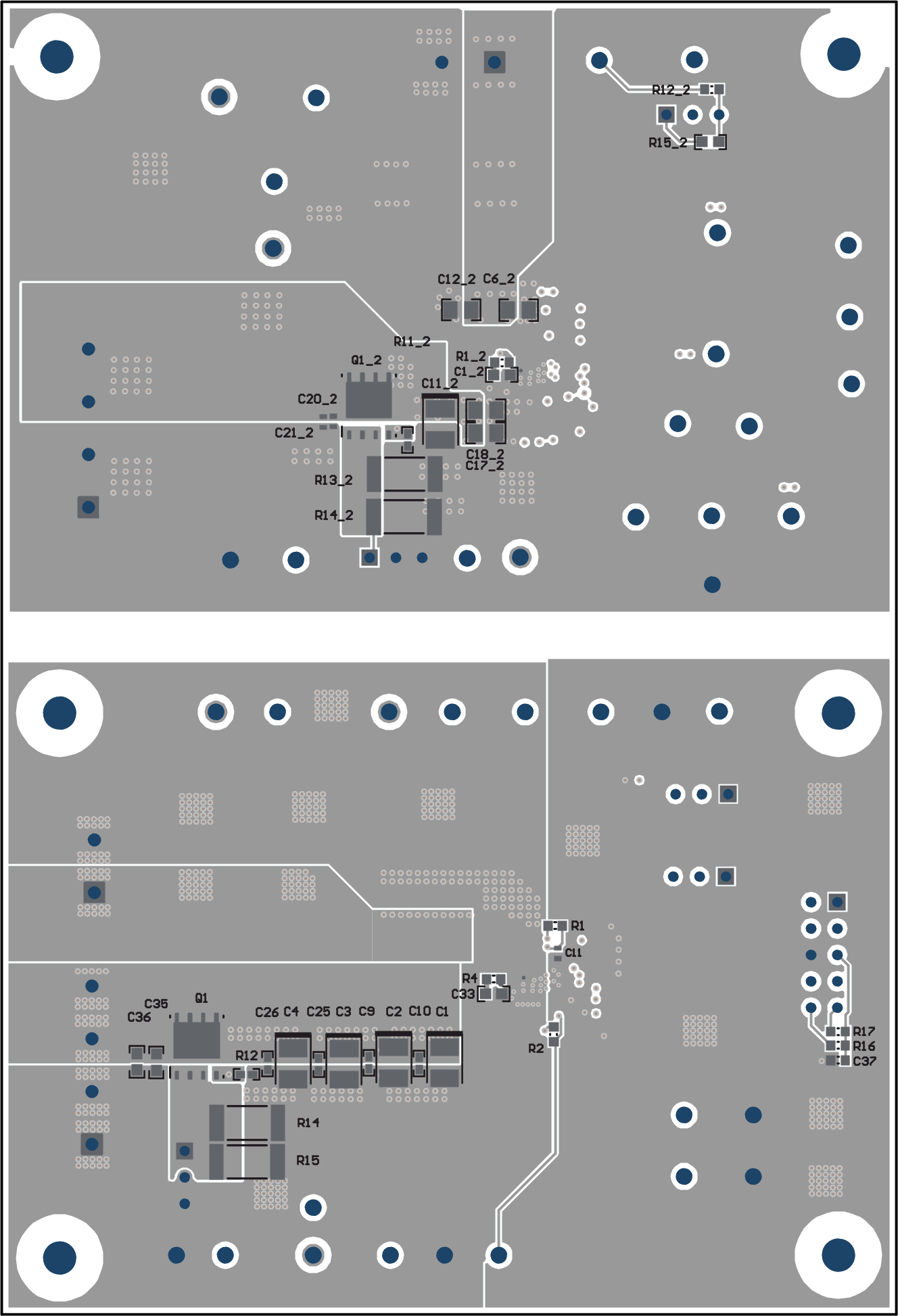

Figure 5-1 Top-Side Composite
View
Figure 5-2 Bottom-Side Composite View
(Viewed From Bottom)
Figure 5-3 Top-Side Layout (Top-Down
View)

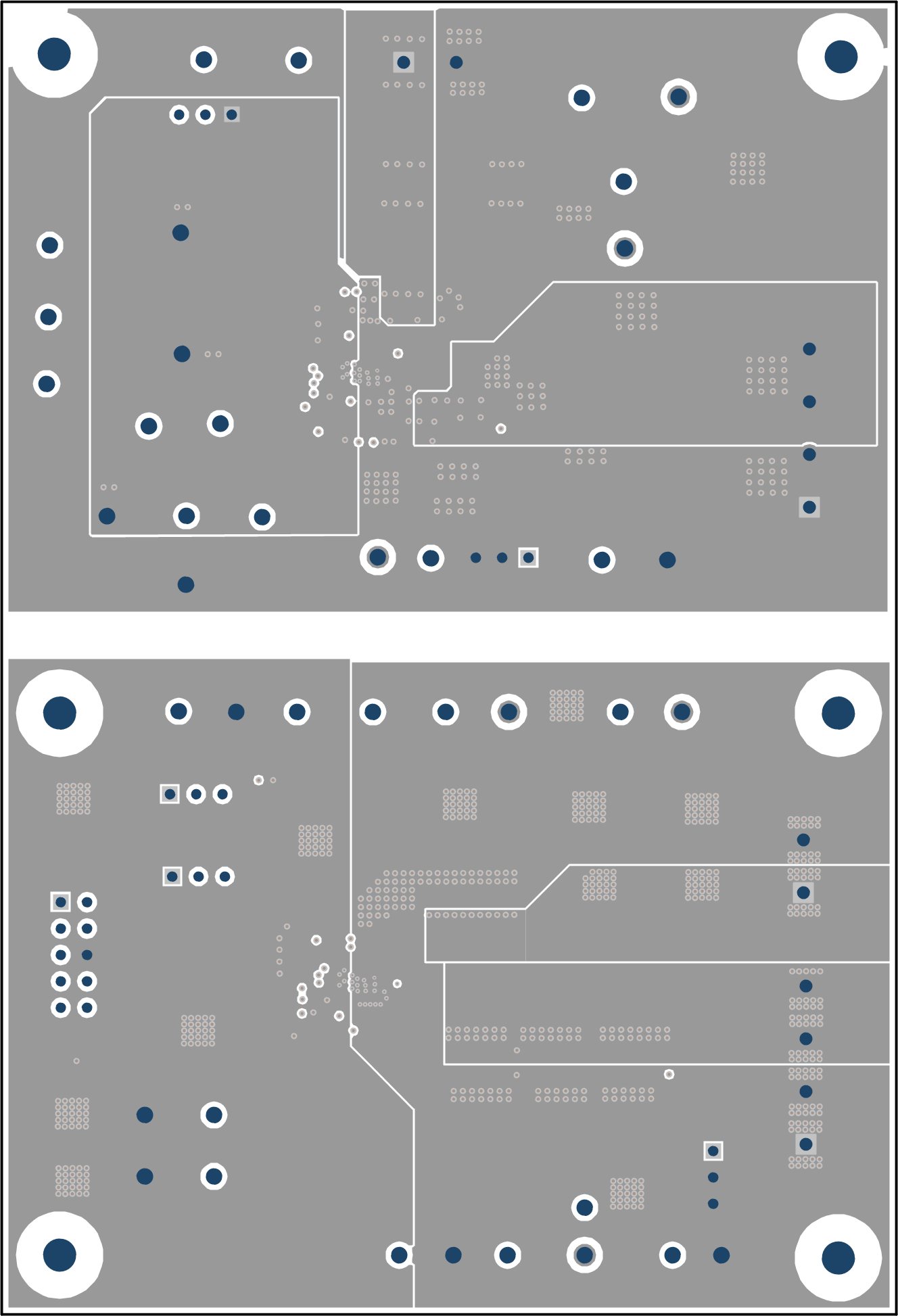

Figure 5-4 Internal Layer-1 Layout
(Top-Down View)

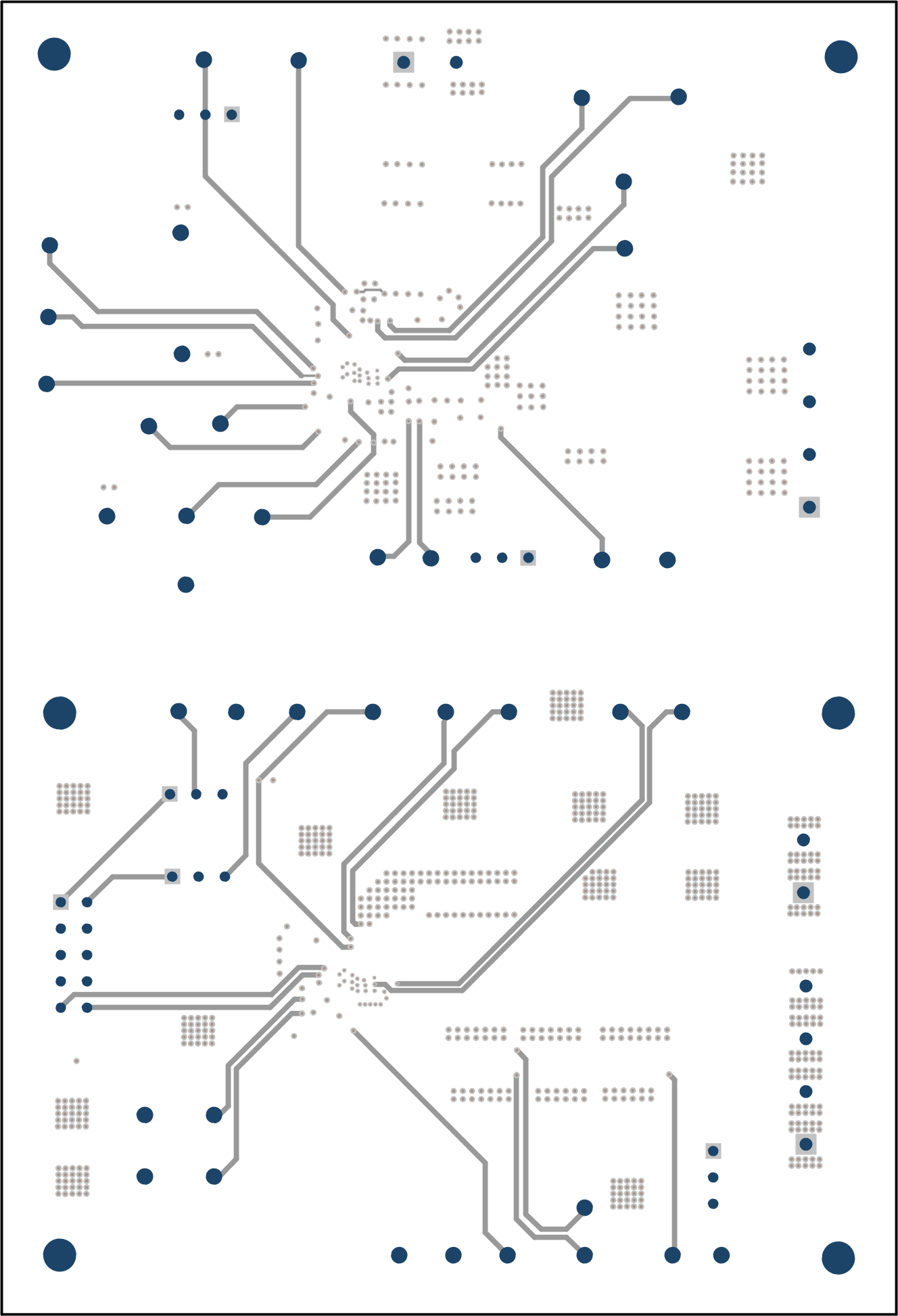

Figure 5-5 Internal Layer-2 Layout
(Top-Down View)

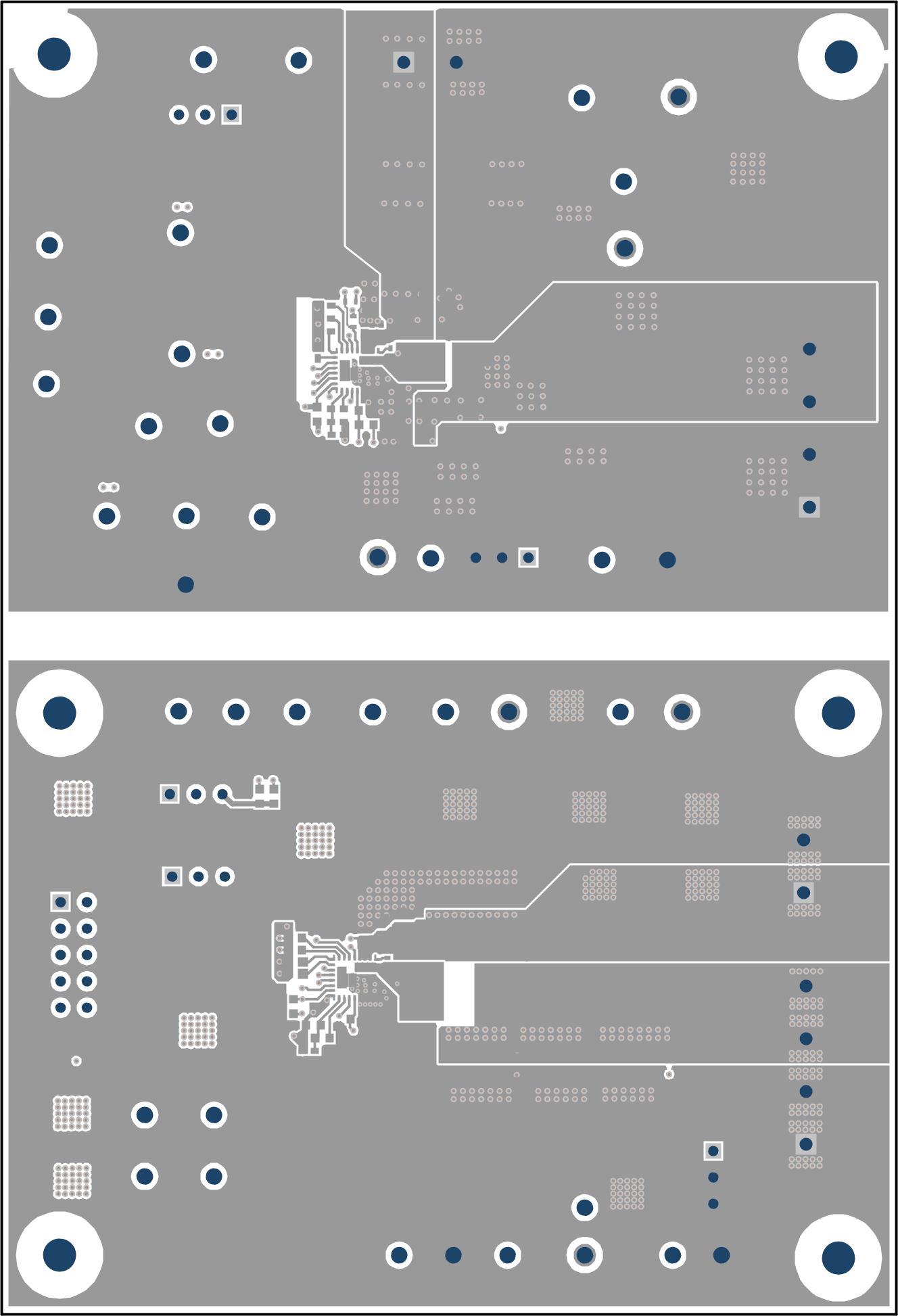

Figure 5-6 Internal Layer-3 Layout
(Top-Down View)

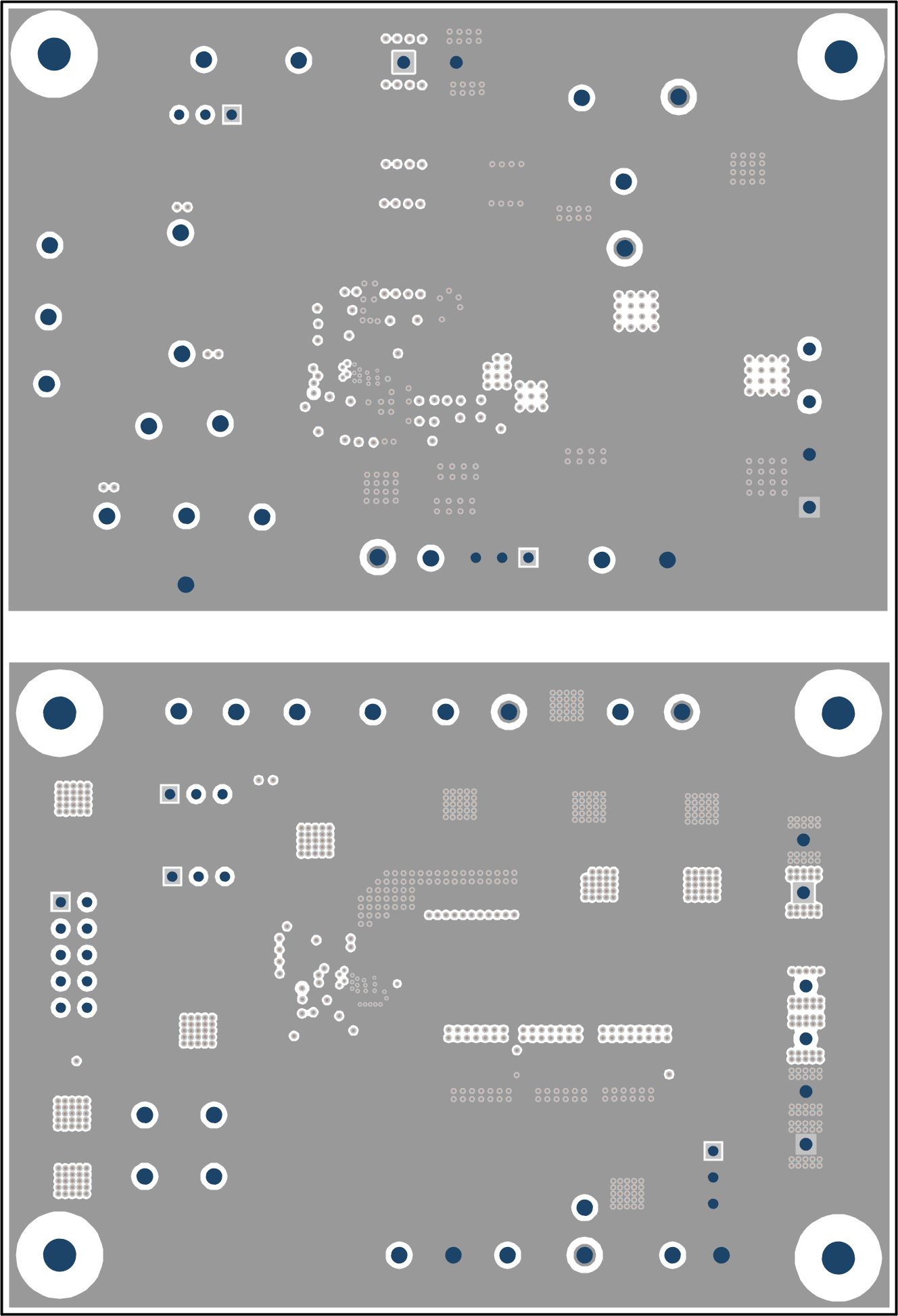

Figure 5-7 Internal Layer-4 Layout
(Top-Down View)

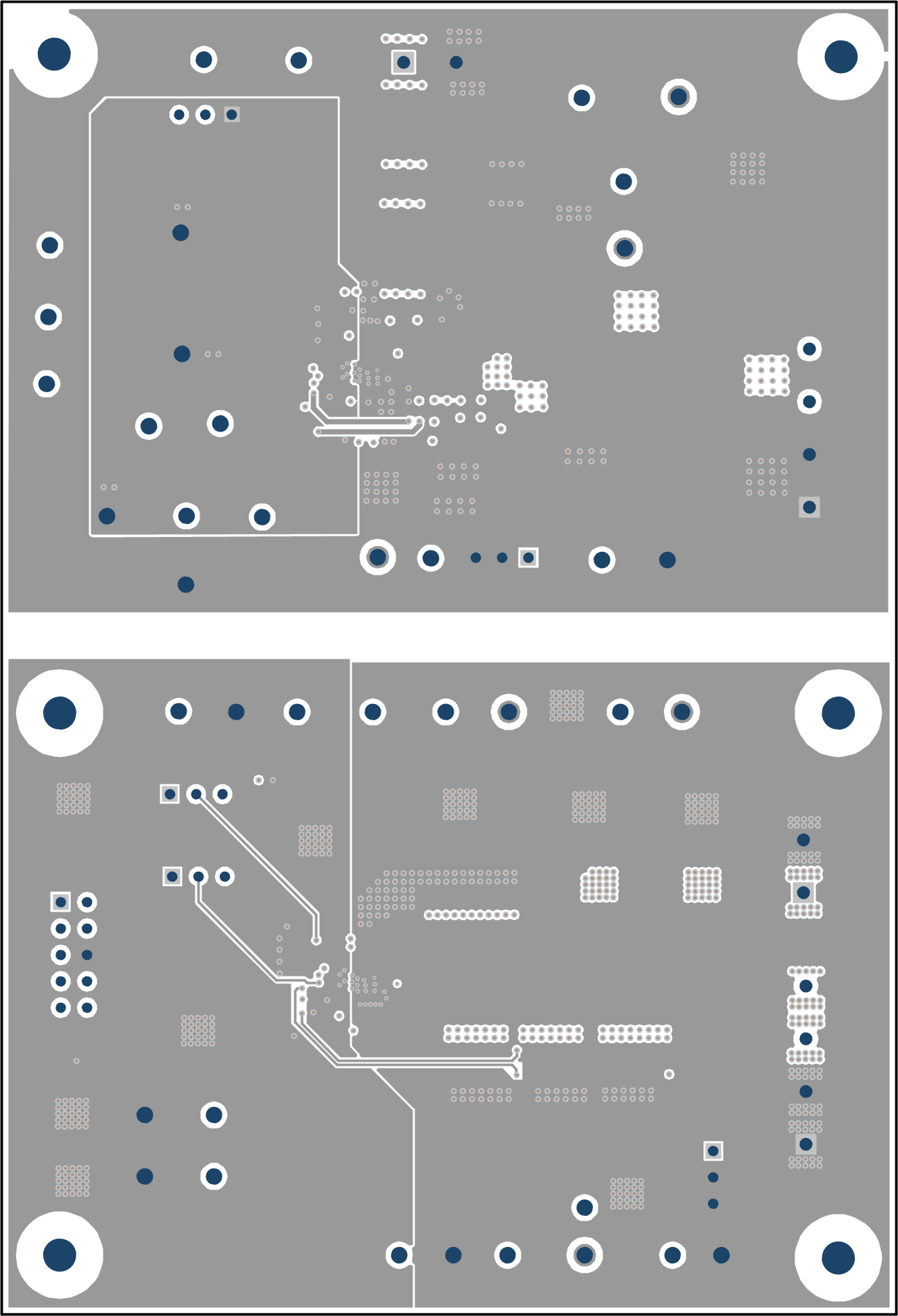

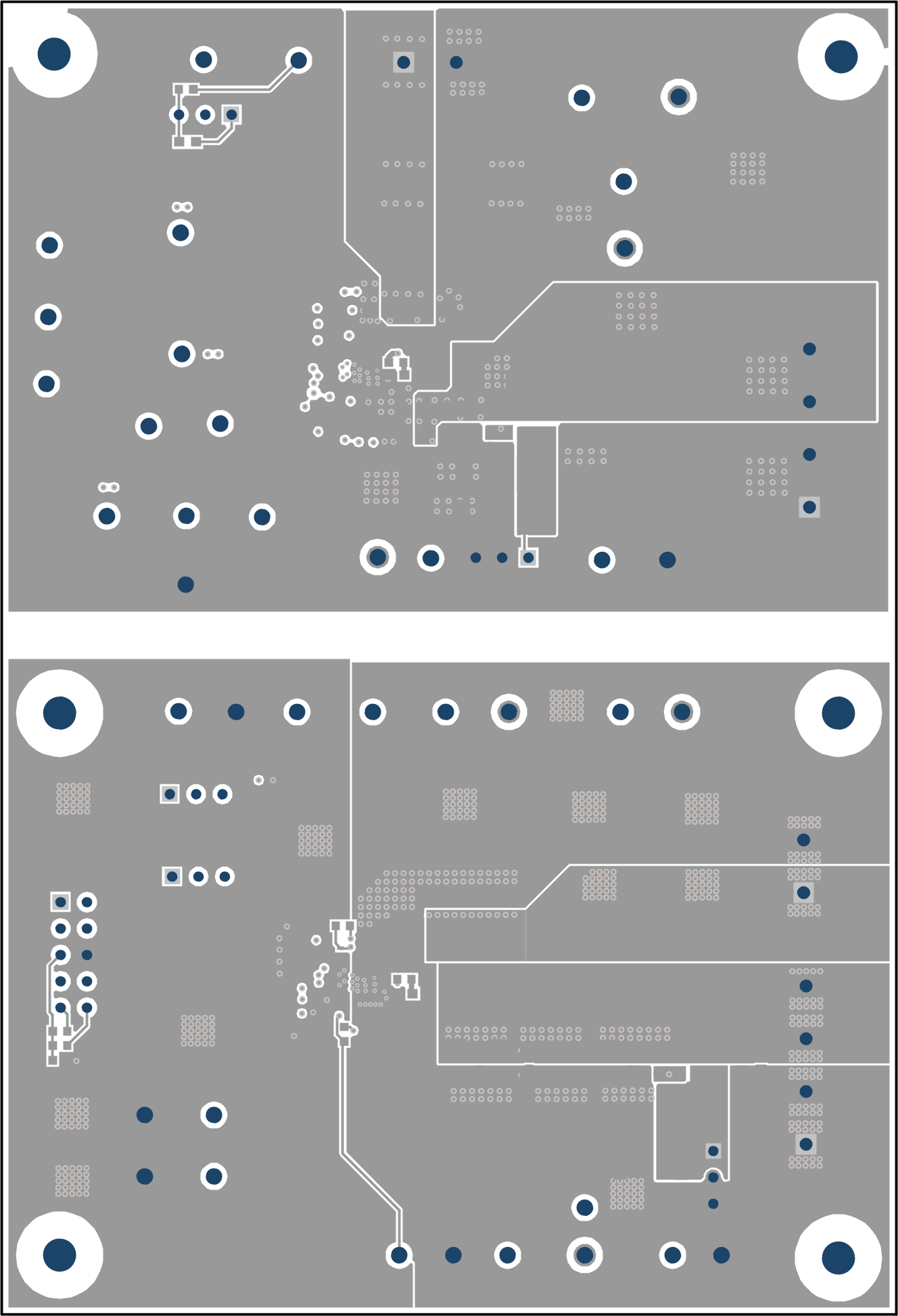

Figure 5-8 Bottom-Side Layout (Top-Down
View)
