RMS and mean voltage

RMS voltage

General relationship

Equation 42.

V_{RMS} = \sqrt{\frac{1}{(T_{2} ? T_{1})} \int_{T 1}^{T 2} {[V (t)]}^{2} dt}

Where

V(t) = continuous function of time

t = time in seconds

T₁ ≤ t ≤ T₂ = the time interval that the function is defined over

Mean voltage

General relationship

Equation 43.

V_{MEAN} = \frac{1}{(T_{2} ? T_{1})} \int_{T 1}^{T 2} V (t) dt

Where

V(t) = continuous function of time

t = time in seconds

T₁ ≤ t ≤ T₂ = the time interval that the function is defined over

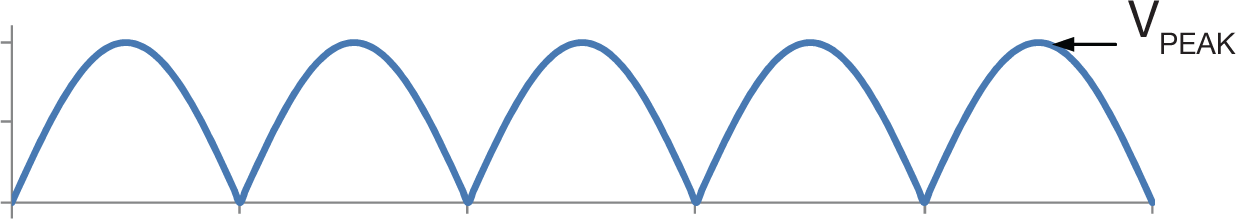

RMS for full wave rectified sine wave

Equation 44.

V_{RMS} = \frac{V_{PEAK}}{\sqrt{2}}

Mean for full wave rectified sine wave

Equation 45.

V_{MEAN} = \frac{2 \times V_{PEAK}}{π}

Figure 16 Full wave rectified sine wave

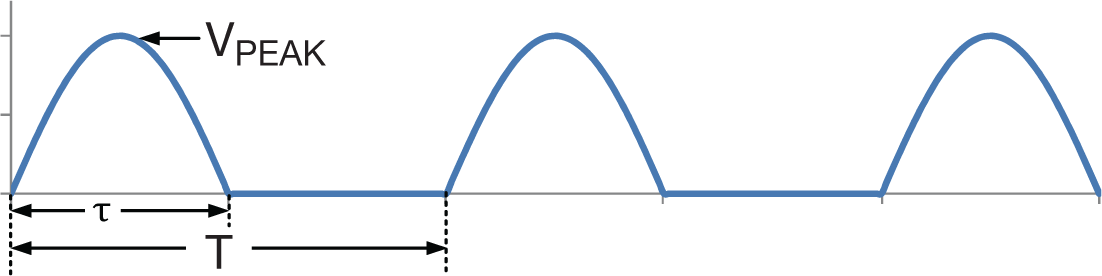

RMS for a half-wave rectified sine wave

Equation 46.

V_{RMS} = V_{PEAK} \sqrt{\frac{τ}{2 T}}

Mean for a half-wave rectified sine wave

Equation 47.

V_{MEAN} = \frac{2 \cdot V_{PEAK}}{π} (\frac{τ}{T})

Figure 17 Half-wave rectified sine wave

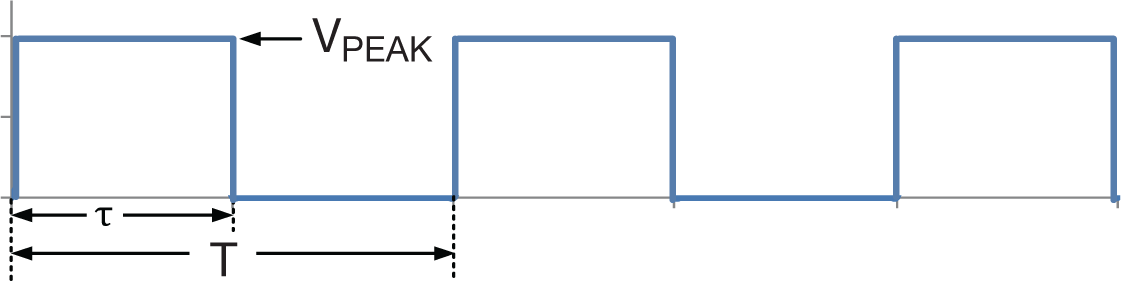

RMS for a square wave

Equation 48.

V_{RMS} = V_{PEAK} \sqrt{\frac{τ}{T}}

Mean for a square wave

Equation 49.

V_{MEAN} = V_{PEAK} (\frac{τ}{T})

Figure 18 Square wave

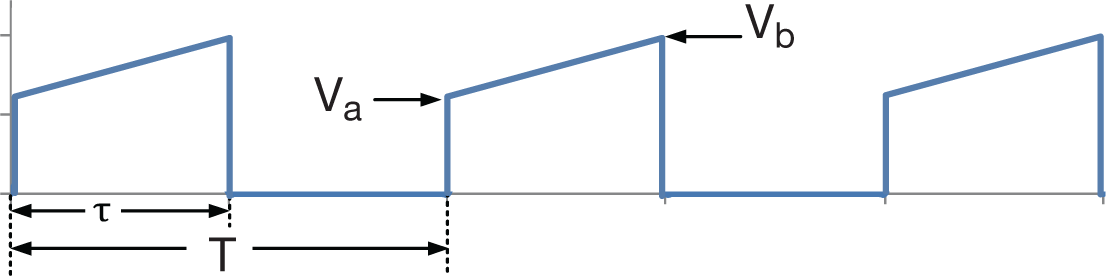

RMS for a trapezoid

Equation 50.

V_{RMS} = \sqrt{(\frac{V_{a}^{2} + V_{a} \cdot V_{b} + V_{b}^{2}}{3}) (\frac{τ}{T})}

Mean for a trapezoid

Equation 51.

V_{MEAN} = \frac{τ}{2 T} (V_{a} + V_{b})

Figure 19 Trapezoidal wave

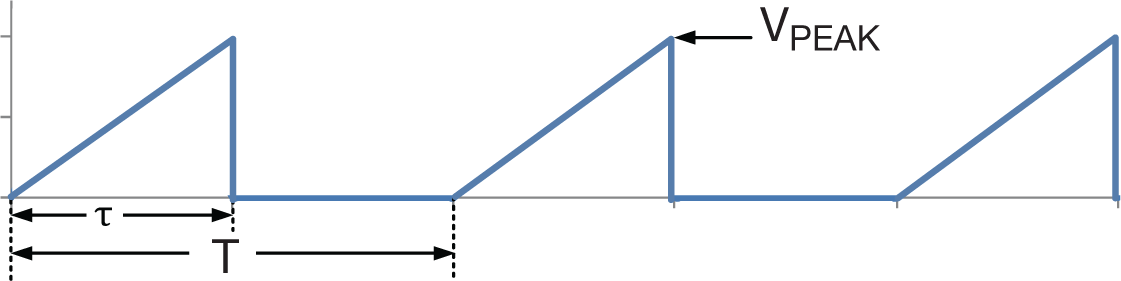

RMS for a triangle wave

Equation 52.

V_{RMS} = V_{PEAK} \sqrt{\frac{τ}{3 T}}

Mean for a triangle wave

Equation 53.

V_{MEAN} = \frac{τ}{2 T} V_{PEAK}

Figure 20 Triangle wave
