3 Test Results
The TPSM8291xEVM was used to take all the data in the TPSM8291x 3-V to 17-V, 2-A/3-A Low Noise and Low Ripple Buck Power Module with Integrated Ferrite Bead Filter Compensation data sheet. See the device data sheet for the performance of this EVM.

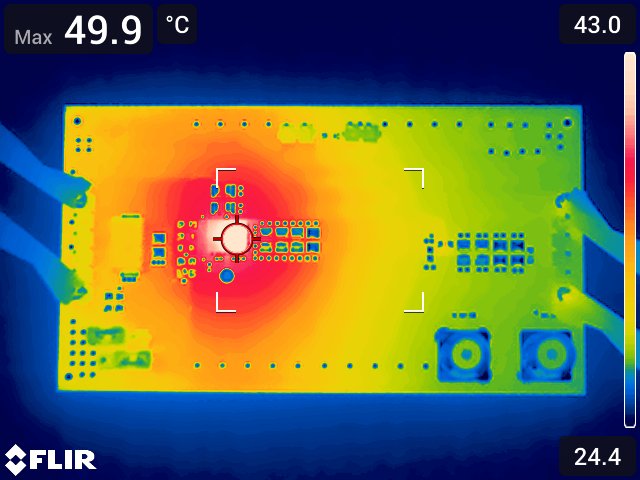

Figure 3-1 Thermal Performance
(VIN = 12 V, VOUT = 1.2 V, IOUT = 3000 mA, J6
to GND)
