SLVUCG4 October 2022 TPSM82912 , TPSM82913
4 Board Layout
This section provides the EVM board layout and illustrations in Figure 4-1 through Figure 4-5. The Gerbers are available on the EVM product page.

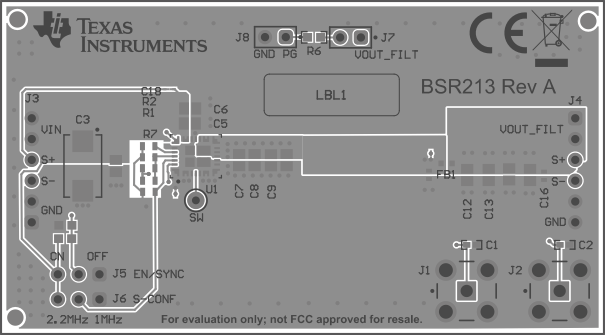

Figure 4-1 Top Assembly

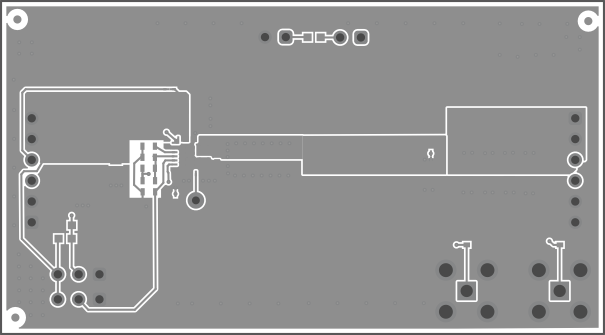

Figure 4-2 Top Layer.

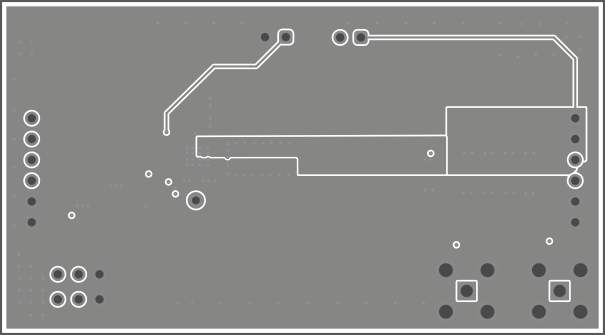

Figure 4-3 Internal Layer 1 .

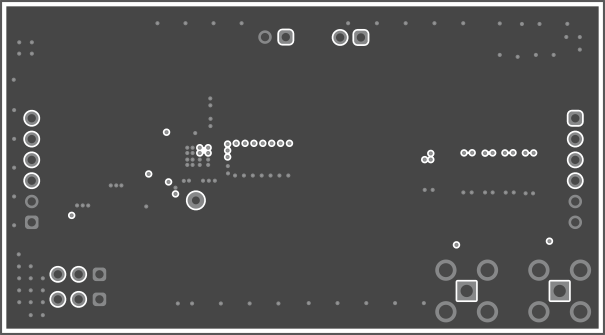

Figure 4-4 Internal Layer
2.

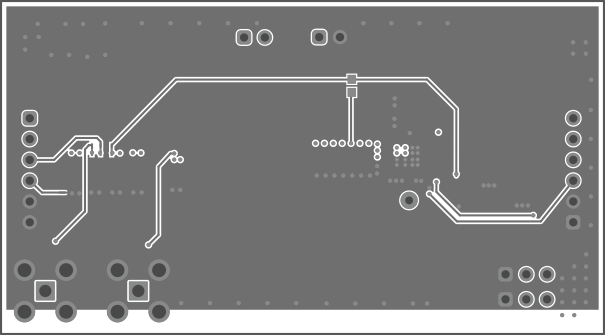

Figure 4-5 Bottom Layer
