SLVU938A July 2013 – August 2021 TPS54625
4.7 Output Voltage Ripple
The TPS54625EVM-608 output voltage ripple is shown in Figure 4-7, Figure 4-8, and Figure 4-9. The output currents are as indicated.

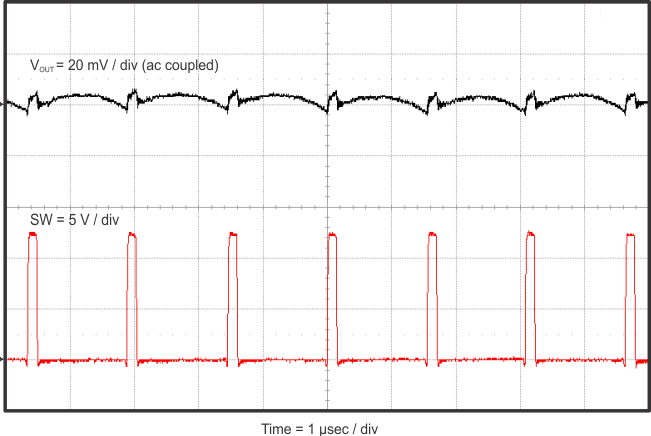

Figure 4-7 TPS54625EVM-608 Output Voltage Ripple, IOUT = 6.5 A

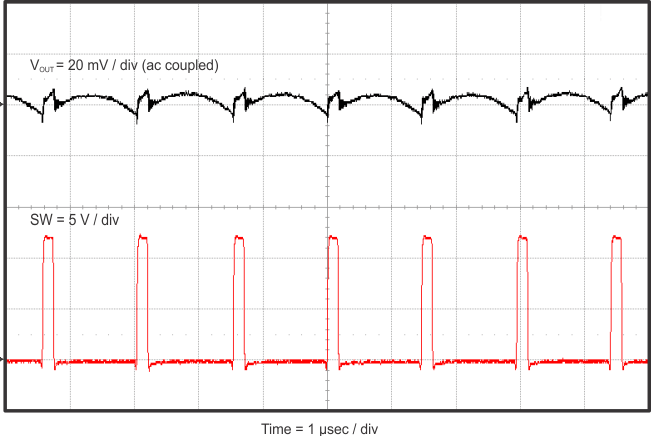

Figure 4-8 TPS54625EVM-608 Output Voltage Ripple, IOUT = 1 A

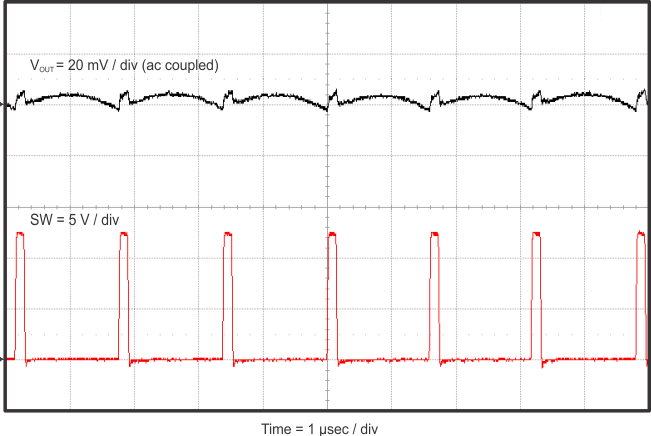

Figure 4-9 TPS54625EVM-608 Output Voltage Ripple, IOUT = 0 A
