SLVU938A July 2013 – August 2021 TPS54625
4.6 Load Transient Response
The TPS54625EVM-608 response to load transient is shown in Figure 4-5 and Figure 4-6. The current steps and slew rates are indicated in the figures. Total peak-to-peak voltage variation is as shown.

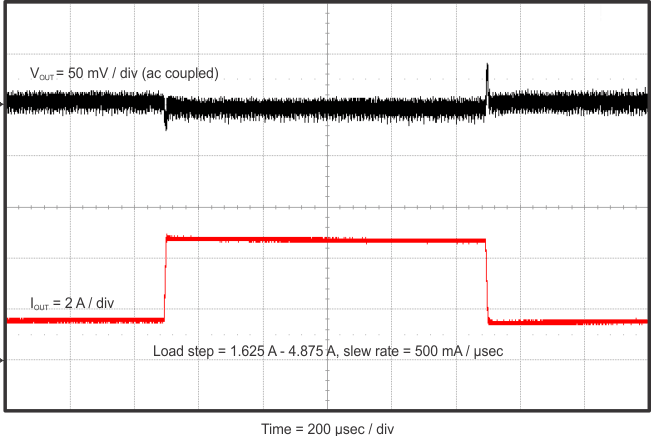

Figure 4-5 TPS54625EVM-608 Load Transient Response, 25% to 75% Load Step

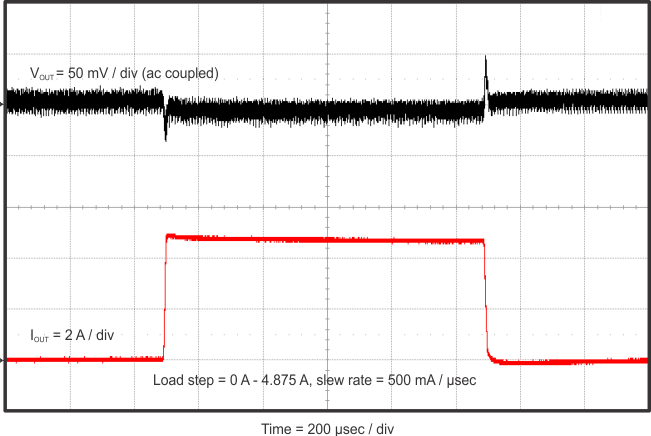

Figure 4-6 TPS54625EVM-608 Load Transient Response, No Load to 75% Load Step
