4.9 Start-Up
The TPS54628EVM-052 start-up waveforms relative to VIN and EN are shown in Figure 4-10 and Figure 4-11. RLOAD = 1 Ω.

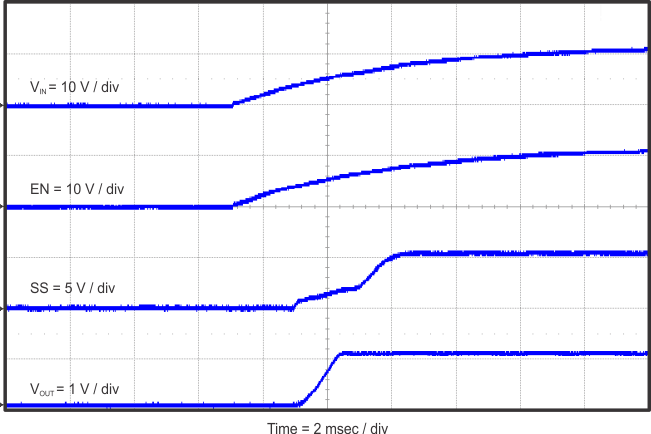

Figure 4-10 TPS54628EVM-052 Start-Up Relative to VIN with SS

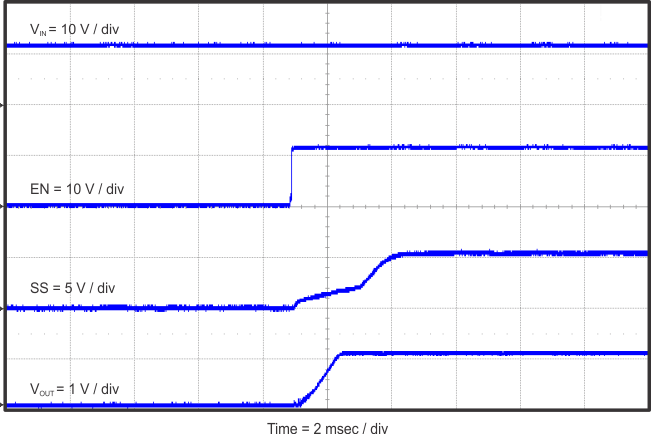

Figure 4-11 TPS54628EVM-052 Start-Up Relative to EN with SS
