SLVU888A April 2013 – August 2021 TPS54628
4.10 Shut-Down
The TPS54628EVM-052 shut-down waveforms relative to VIN and EN are shown in Figure 4-12 and Figure 4-13. RLOAD = 1 Ω.
Figure 4-12 TPS54628EVM-052 Shut-Down Relative to VIN with SS

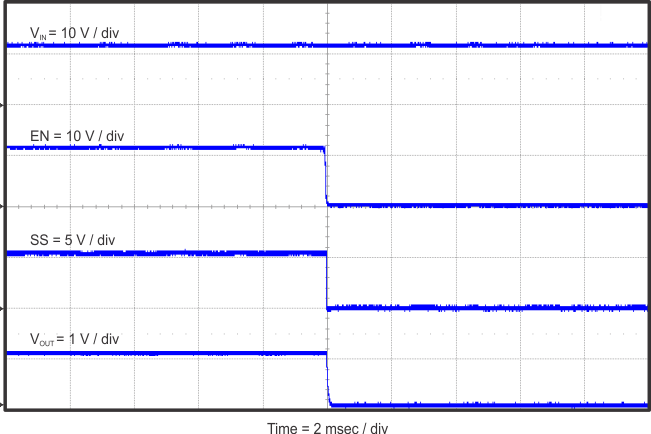

Figure 4-13 TPS54628EVM-052 Shut-Down Relative to EN with SS
