4.10 Shut-Down
The TPS54339EVM-056 shut-down waveforms relative to VIN and EN are shown in Figure 4-11 and Figure 4-12. RLOAD = 1 Ω.

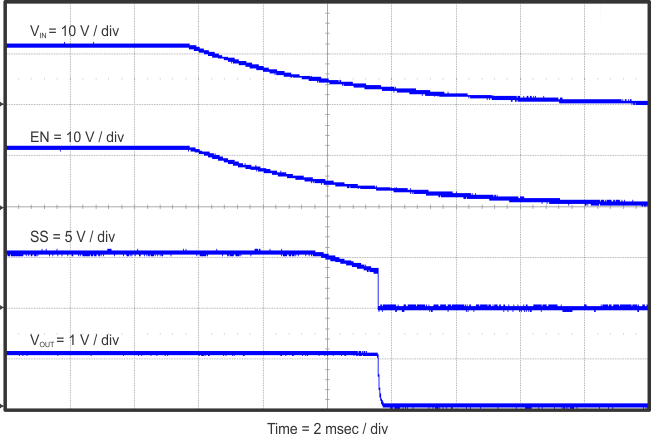

Figure 4-11 TPS54339EVM-056 Shut-Down Relative to VIN with SS

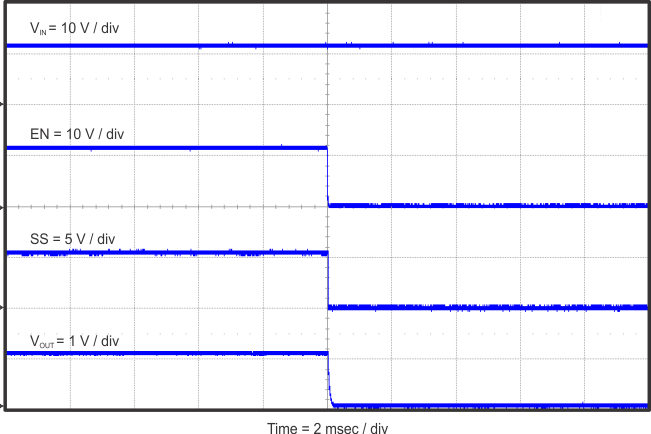

Figure 4-12 TPS54339EVM-056 Shut-Down Relative to EN with SS
