SLVU836A January 2013 – October 2021 TPS54339
4.9 Start-Up
The TPS54339EVM-056 start-up waveforms relative to VIN and EN are shown in Figure 4-9 and Figure 4-10. RLOAD = 1 Ω.

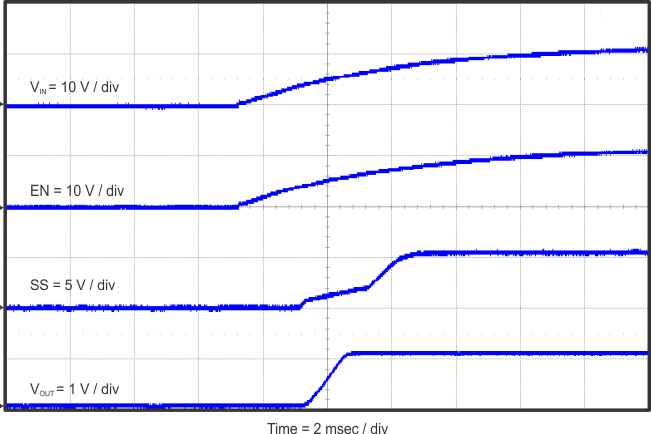

Figure 4-9 TPS54339EVM-056 Start-Up Relative to VIN with SS

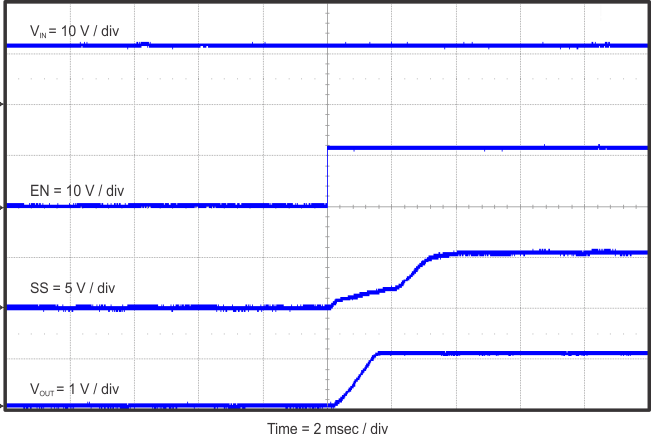

Figure 4-10 TPS54339EVM-056 Start-Up Relative to EN with SS
