4.9.1 Converter 1 Start-Up

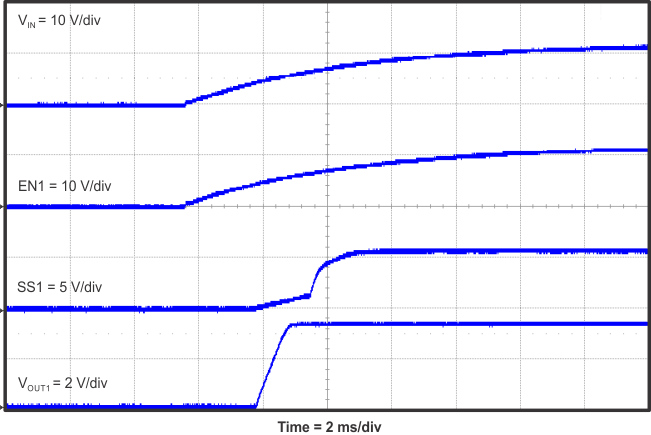

The TPS542951EVM start-up waveform of converter 1 relative to VIN is shown in Figure 4-16.
Figure 4-16 TPS542951EVM Converter 1 Start-Up Relative to VINThe TPS542951EVM start-up waveform of converter 1 relative to EN1 is shown in Figure 4-17.
Figure 4-17 TPS542951EVM Start-Up Relative to EN1
