4.9.2 Converter 2 Start-Up

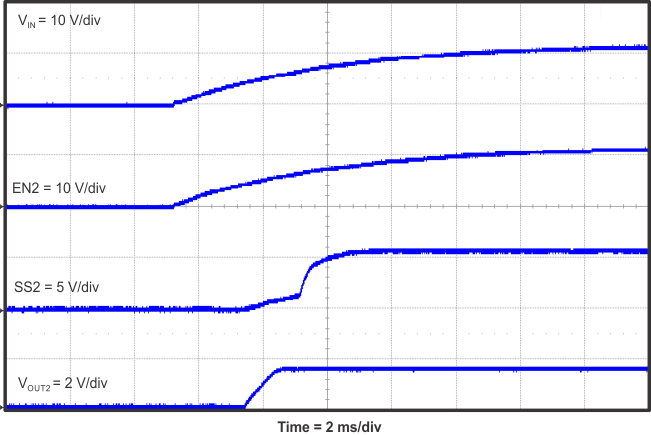

The TPS542951EVM start-up waveform of converter 2 relative to VIN is shown in Figure 4-18.
Figure 4-18 TPS542951EVM Converter 2 Start-Up Relative to VINThe TPS542951EVM start-up waveform of converter 2 relative to EN2 is shown in Figure 4-19.
Figure 4-19 TPS542951EVM Start-Up Relative to EN2
