4.10 Start-Up and Shut-Down
The TPS54428EVM-052 start-up and shut-down waveforms relative to VIN with no load are shown in Figure 4-12 and Figure 4-13.

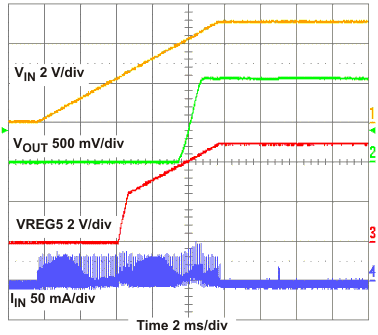

Figure 4-12 TPS54428EVM-052 Start-Up Relative to VIN

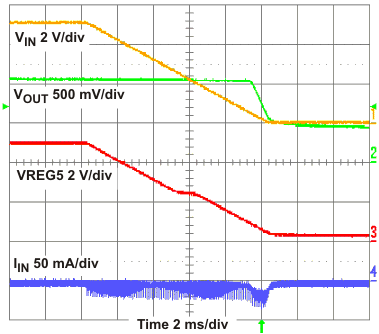

Figure 4-13 TPS54428EVM-052 Shut-down Relative to VINThe TPS54428EVM-052 start-up and shut-down waveforms relative to enable (EN) with no load are shown in Figure 4-14 and Figure 4-15.

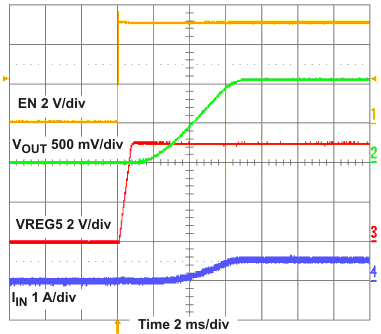

Figure 4-14 TPS54428EVM-052 Start-Up Relative to EN

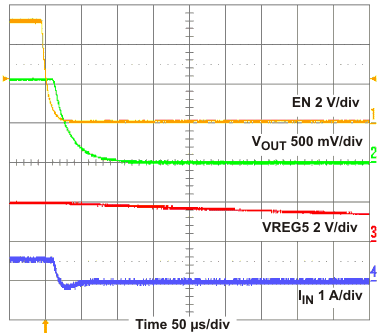

Figure 4-15 TPS54428EVM-052 Shut-down Relative to EN
