SLVU578A December 2011 – September 2021 TPS54428
4.7 Load Transient Response
The TPS54428EVM-052 response to load transient steps are shown in Figure 4-6 and Figure 4-7. Total peak-to-peak voltage variation is as shown.
Figure 4-6 TPS54428EVM-052 Load Transient Response, 1 A to 3 A

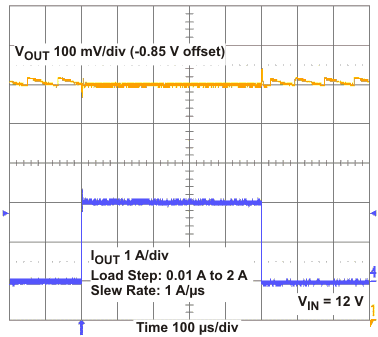

Figure 4-7 TPS54428EVM-052 Load Transient Response, 0.01 A to 2 A
