SLUUCM7 October 2022 TPS563300
4.4 Output Voltage Ripple
The TPS563300EVM output voltage ripple is shown in Figure 4-4, Figure 4-5, Figure 4-6, Figure 4-7, Figure 4-8 and Figure 4-9. The output currents are as indicated and all waveforms are with 20-MHz scope bandwidth.

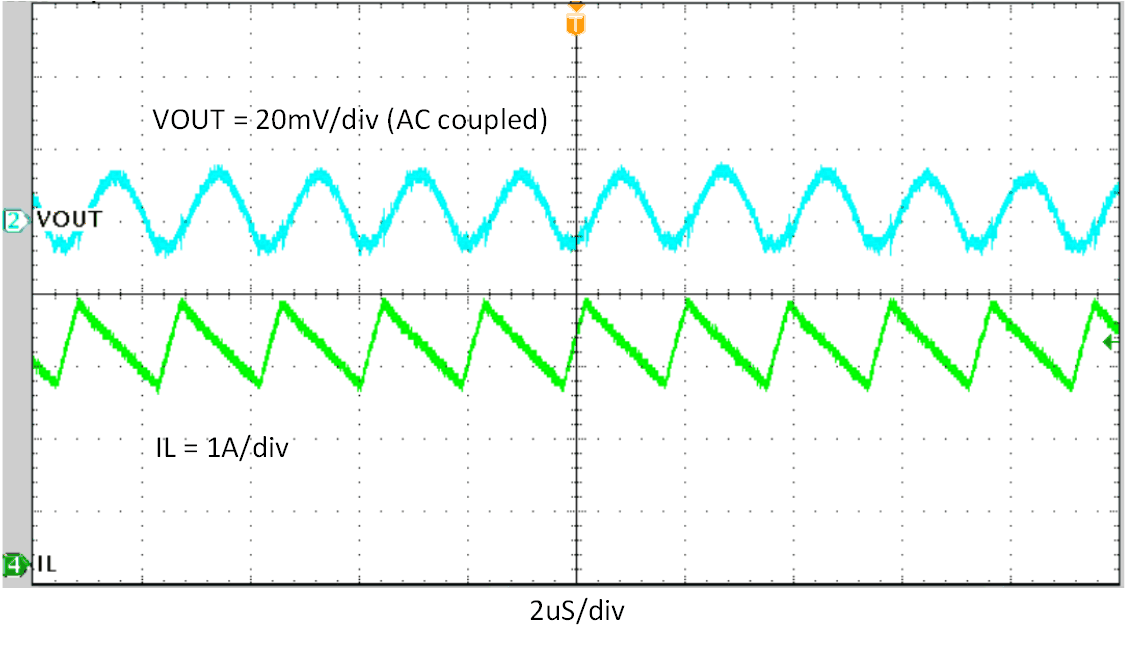

Figure 4-4 TPS563300EVM Output
Voltage Ripple, IOUT = 3 A

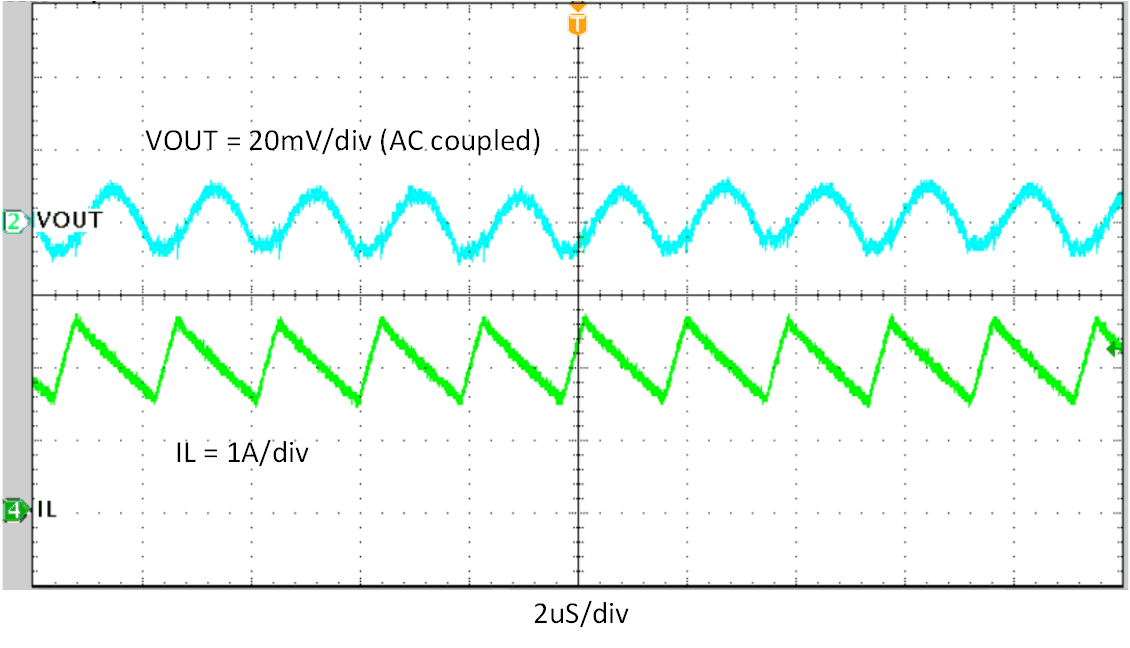

Figure 4-5 TPS563300EVM Output
Voltage Ripple, IOUT = 2 A
Figure 4-6 TPS563300EVM Output
Voltage Ripple, IOUT = 1 A

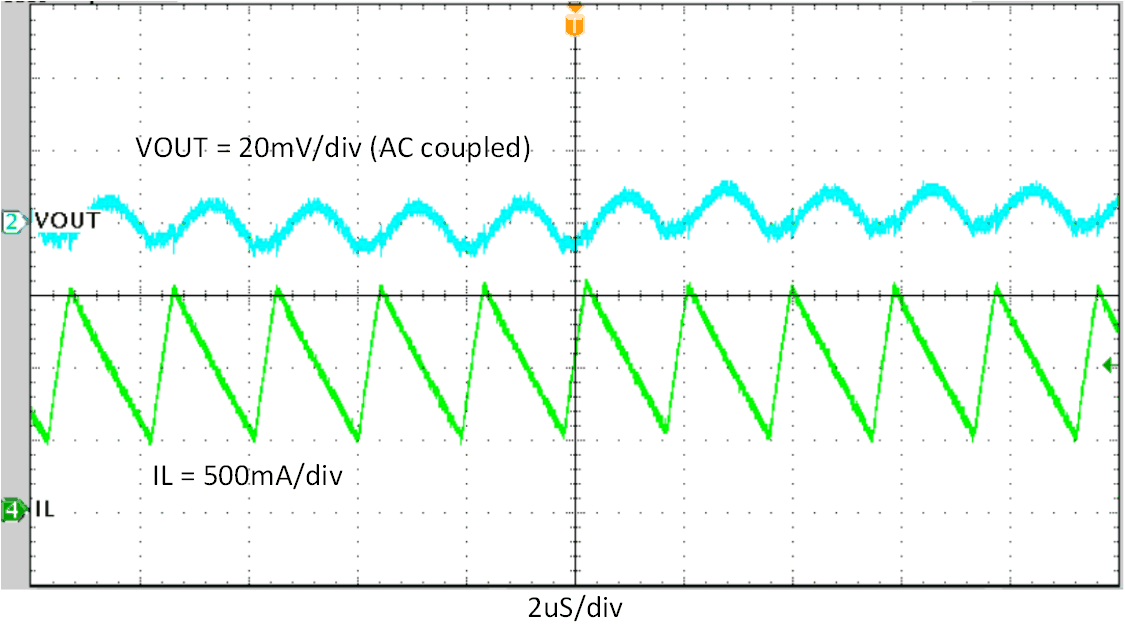

Figure 4-7 TPS563300EVM Output Voltage Ripple, IOUT = 500 mA

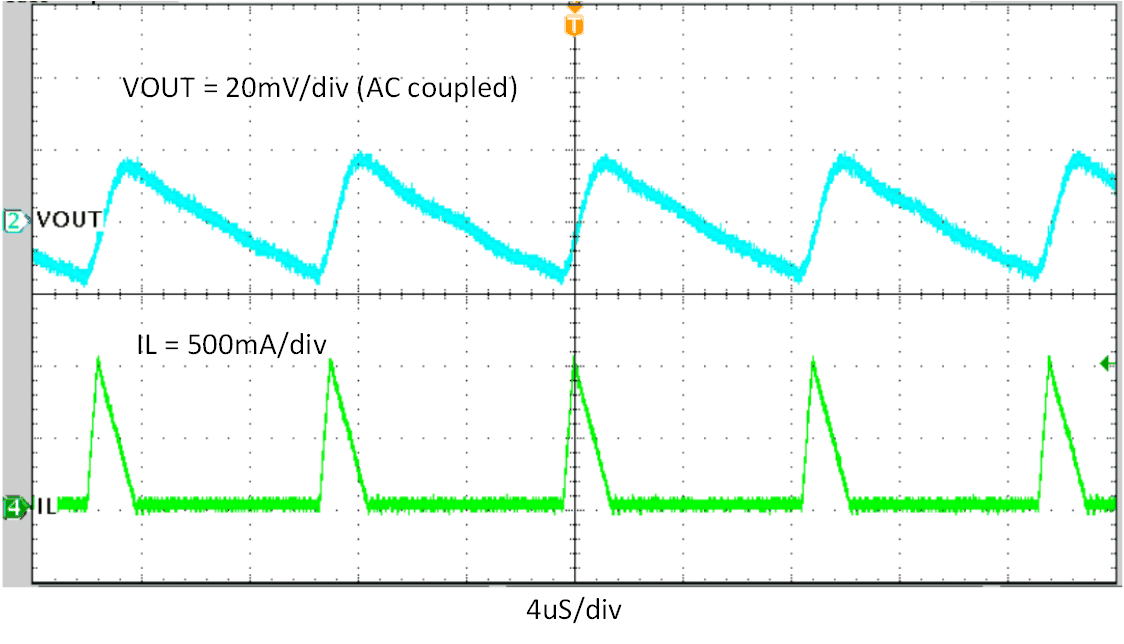

Figure 4-8 TPS563300EVM Output Voltage Ripple, IOUT = 100 mA

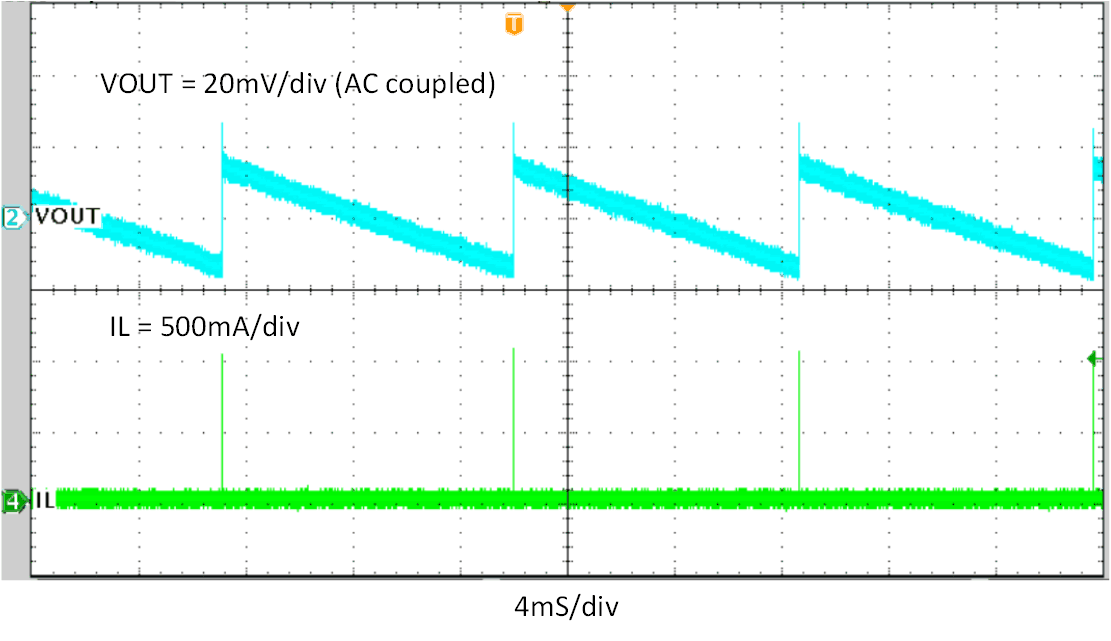

Figure 4-9 TPS563300EVM Output Voltage Ripple, IOUT = 0 A
