4.3 Load Transient Response
The TPS563300EVM response to load transient is shown in Figure 4-2 and Figure 4-3. The current steps and slew rates are indicated in the figures with 20-MHz scope bandwidth. Total peak-to-peak voltage variation is as shown.

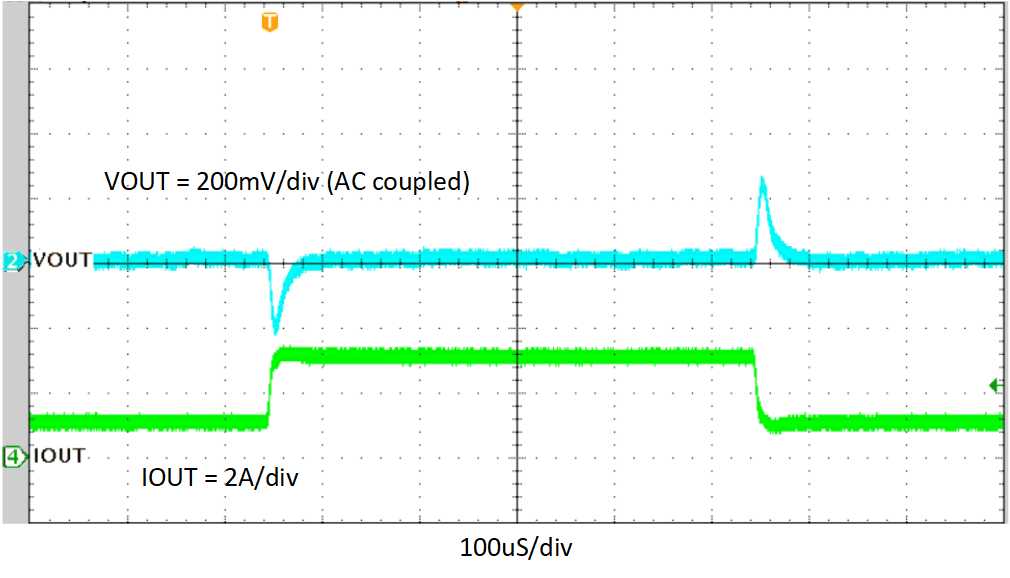

Figure 4-2 TPS563300EVM Load
Transient Response, 1-A – 3-A Load Step, 0.8 A/μs
Figure 4-3 TPS563300EVM Load Transient Response, 0.5-A – 2.5-A Load Step, 0.8 A/μs
