ZHCSIU2K June 2001 – November 2023 UCC27323 , UCC27324 , UCC27325 , UCC37323 , UCC37324 , UCC37325
PRODUCTION DATA

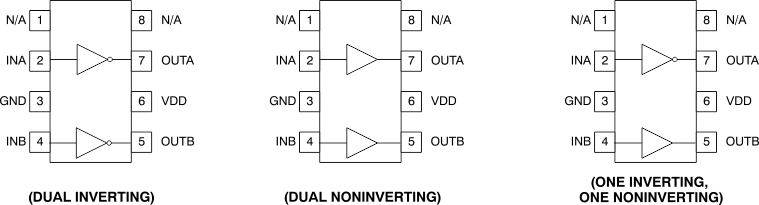

Figure 5-1 D, DGN Package8-Pin SOIC, MSOP With
PowerPADTop View| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | NO. | |||
| GND | 3 | — | Common ground: This ground should be connected very closely to the source of the power MOSFET which the driver is driving. | |
| INA | 2 | I | Input A: Input signal of the A driver which has logic compatible threshold and hysteresis. If not used, this input must be tied to either VDD or GND; it must not be left floating. | |
| INB | 4 | I | Input B: Input signal of the A driver which has logic compatible threshold and hysteresis. If not used, this input must be tied to either VDD or GND; it must not be left floating. | |
| N/C | 1 | — | No Internal Connection | |
| N/C | 8 | — | No Internal Connection | |
| OUTA | 7 | O | Driver output A: The output stage is capable of providing 4-A drive current to the gate of a power MOSFET. | |
| OUTB | 5 | O | Driver output B: The output stage is capable of providing 4-A drive current to the gate of a power MOSFET. | |
| VDD | 6 | I | Supply: Supply voltage and the power input connection for this device. | |
