6.8 Typical Characteristics
Unless otherwise specified VVDD=VHB = 12 V, VHS=VVSS = 0 V, No load on outputs
A.

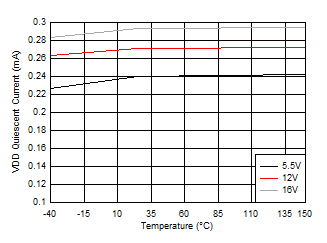

Figure 6-1 VDD Quiescent Current| VHI = VLI = 0 V |

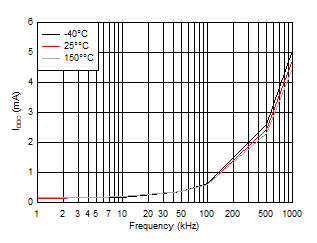

Figure 6-3 VDD Operating Current
A.

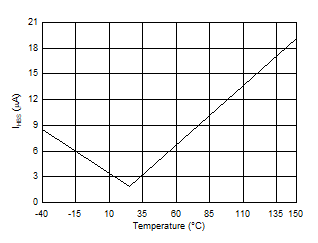

Figure 6-5 HB to VSS Quiescent Current| VHB=VHS=100V |

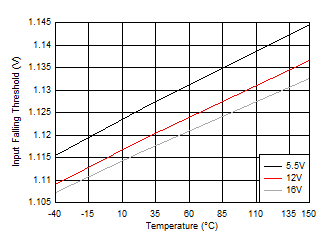

Figure 6-7 Input Falling Threshold

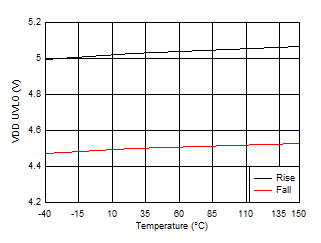

Figure 6-9 VDD UVLO Threshold

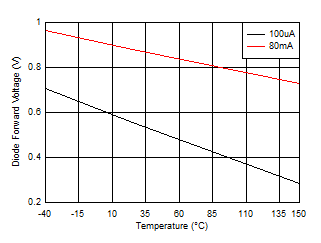

Figure 6-11 Boot Diode Forward Voltage Drop
A.

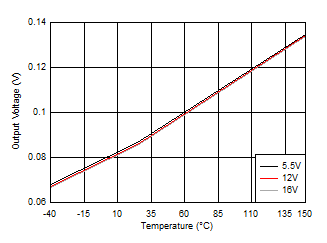

Figure 6-13 LO Low Output Voltage (VLOL)| IO=100mA |
A.

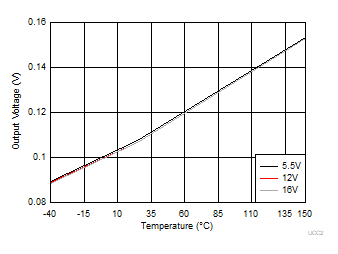

Figure 6-15 HO Low Output Voltage (VHOL)| IO=100mA |
A.
Figure 6-17 LO Rise Time| CL=1800pF |
A.

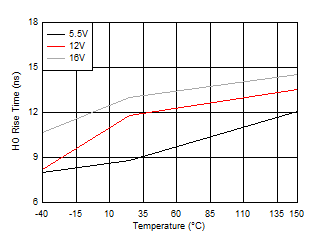

Figure 6-19 HO Rise Time| CL=1800pF |
A.

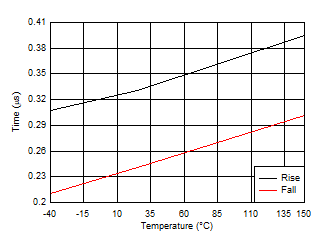

Figure 6-21 LO Rise andamp; Fall Time| CL=100nF |

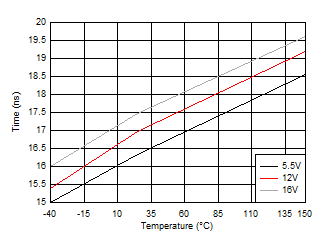

Figure 6-23 HO Rising Propagation Delay (TDHRR)

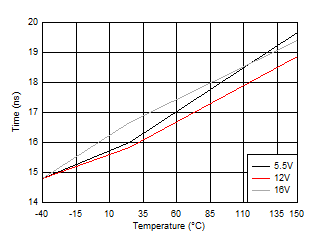

Figure 6-25 LO Rising Propagation Delay (TDLRR)
A.

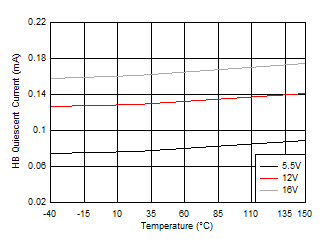

Figure 6-2 HB Quiescent Current| VHI = VLI = 0 V |

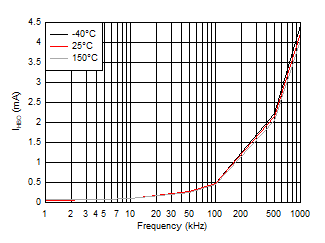

Figure 6-4 HB Operating Current

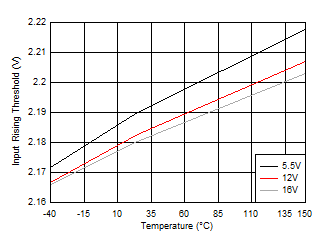

Figure 6-6 Input Rising Threshold

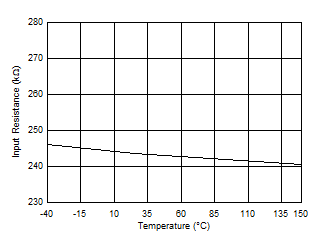

Figure 6-8 Input Pulldown Resistor

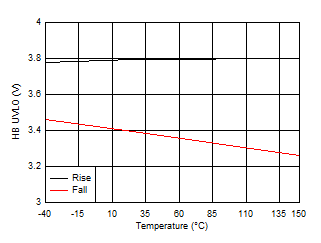

Figure 6-10 HB UVLO Threshold

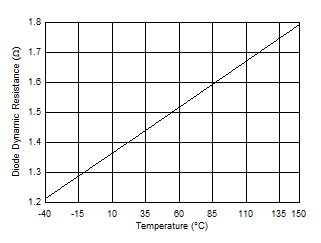

Figure 6-12 Boot Diode Dynamic Resistance
A.

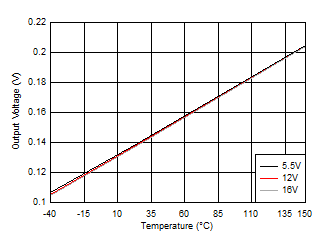

Figure 6-14 LO High Output Voltage (VLOH)| IO=-100mA |
A.

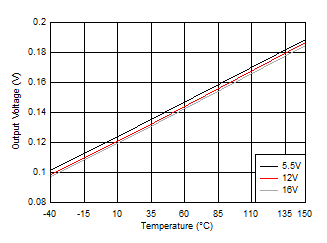

Figure 6-16 HO High Output Voltage (VHOH)| IO=-100mA |
A.

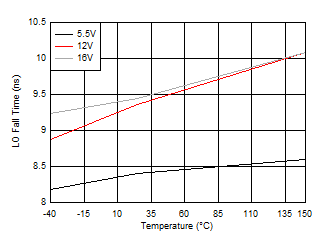

Figure 6-18 LO Fall Time| CL=1800pF |
A.

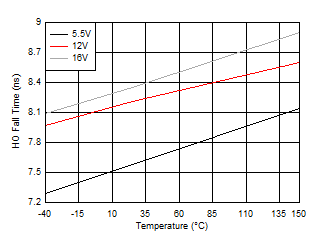

Figure 6-20 HO Fall Time| CL=1800pF |
A.

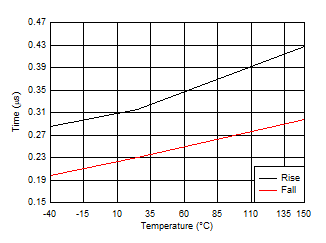

Figure 6-22 HO Rise andamp; Fall Time| CL=100nF |

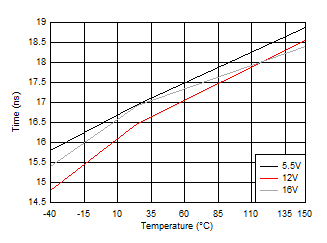

Figure 6-24 HO Falling Propagation Delay (TDHFF)Figure 6-26 LO Falling Propagation Delay (TDLFF)
