7.14 Typical Characteristics

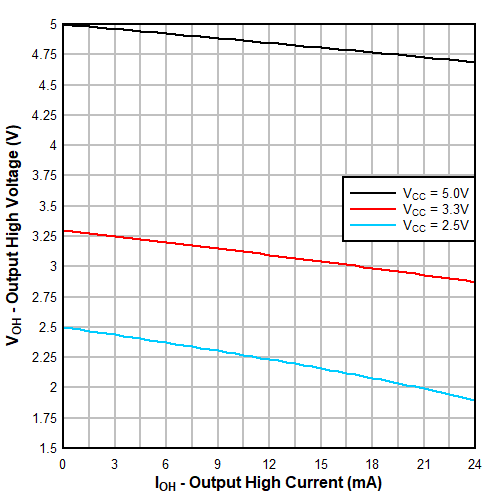

Figure 7-1 Typical
(TA=25°C) Output High Voltage (VOH) vs Source Current
(IOH)

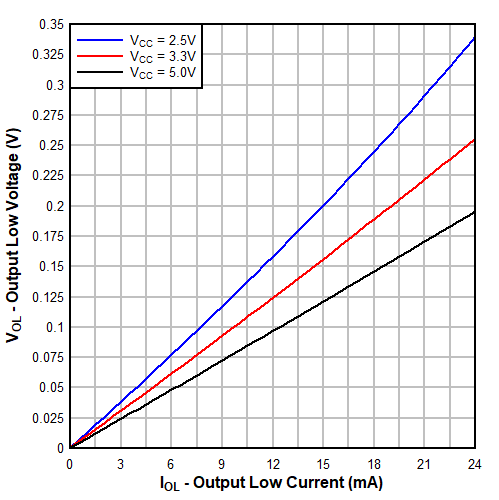

Figure 7-3 Typical
(TA=25°C) Output Low Voltage (VOL) vs Sink Current
(IOL)

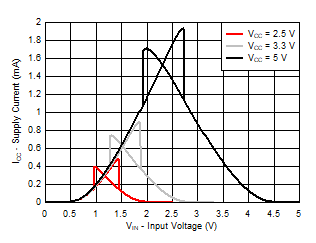

Figure 7-5 Typical
(TA=25°C) Supply Current (ICC) vs Input Voltage
(VIN)

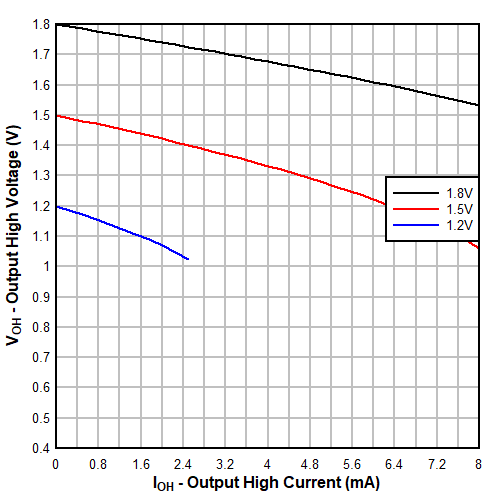

Figure 7-2 Typical
(TA=25°C) Output High Voltage (VOH) vs Source Current
(IOH)

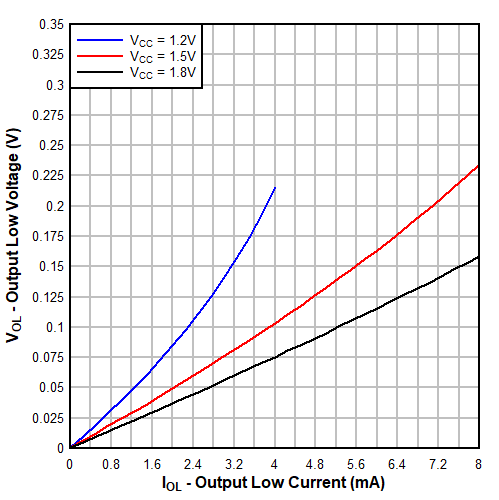

Figure 7-4 Typical
(TA=25°C) Output Low Voltage (VOL) vs Sink Current
(IOL)

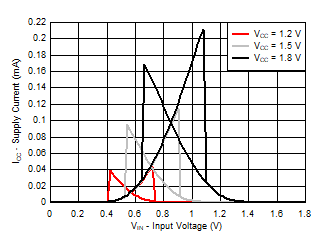

Figure 7-6 Typical
(TA=25°C) Supply Current (ICC) vs Input Voltage
(VIN)
