6 Pin Configuration and Functions—TXU0104-Q1

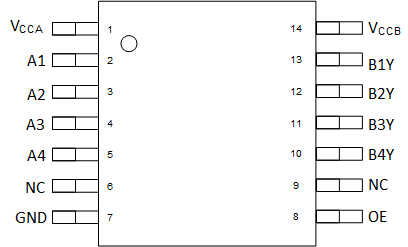

Figure 6-1 PW
Package,14-Pin TSSOPTransparent (Top View)
Figure 6-2 WBQA
Package,14-Pin VQFNTransparent (Top View)Table 6-1 TXU0104-Q1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | PW, WBQA | ||
| A1 | 2 | I | Input A1. Referenced to VCCA. |
| A2 | 3 | I | Input A2. Referenced to VCCA. |
| A3 | 4 | I | Input A3. Referenced to VCCA. |
| A4 | 5 | I | Input A4. Referenced to VCCA. |
| B1Y | 13 | O | Output B1. Referenced to VCCB. |
| B2Y | 12 | O | Output B2. Referenced to VCCB. |
| B3Y | 11 | O | Output B3. Referenced to VCCB. |
| B4Y | 10 | O | Output B4. Referenced to VCCB. |
| GND | 7 | — | Ground |
| OE | 8 | I | Output Enable. Pull to GND to place all outputs in high-impedance mode. Pull to VCCA or VCCB to enable all outputs. |
| NC | 6, 9 | — | No internal connection. |
| VCCA | 1 | — | A-port supply voltage. 1.1 V ≤ VCCA ≤ 5.5 V |
| VCCB | 14 | — | B-port supply voltage. 1.1 V ≤ VCCB ≤ 5.5 V |
| Thermal Pad | — | Thermal pad. May be left floating or grounded (recommended for best thermal and mechanical integrity). | |
(1) I = inpu, O = output
