ZHCSB24F May 2013 – August 2018 TS3DV642
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息
封裝選項
機械數據 (封裝 | 引腳)
- RUA|42
散熱焊盤機械數據 (封裝 | 引腳)
- RUA|42
訂購信息

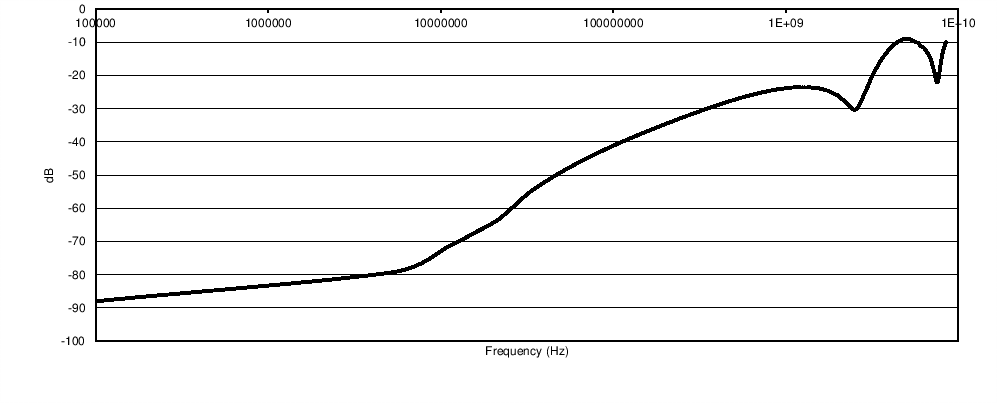

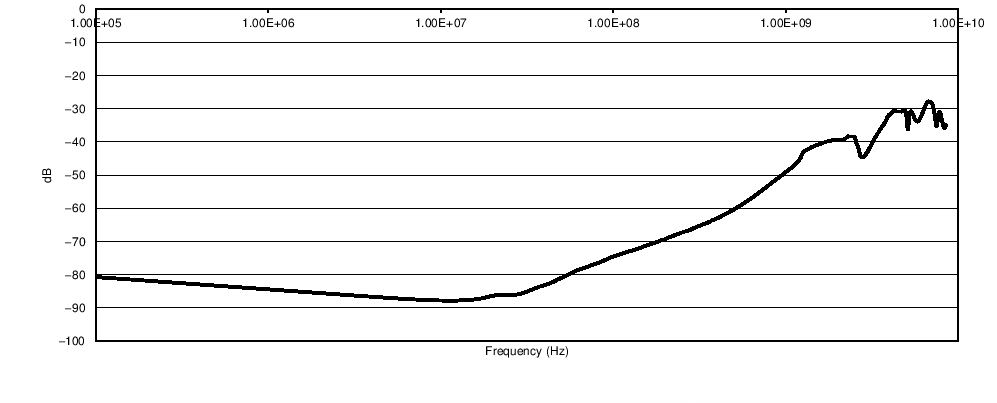

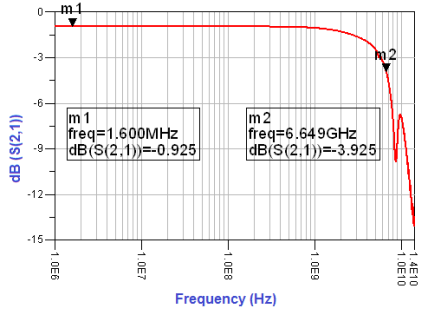

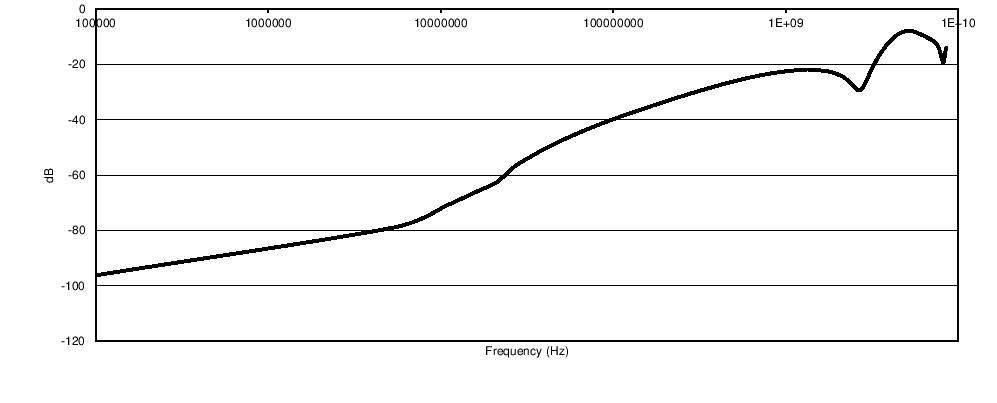

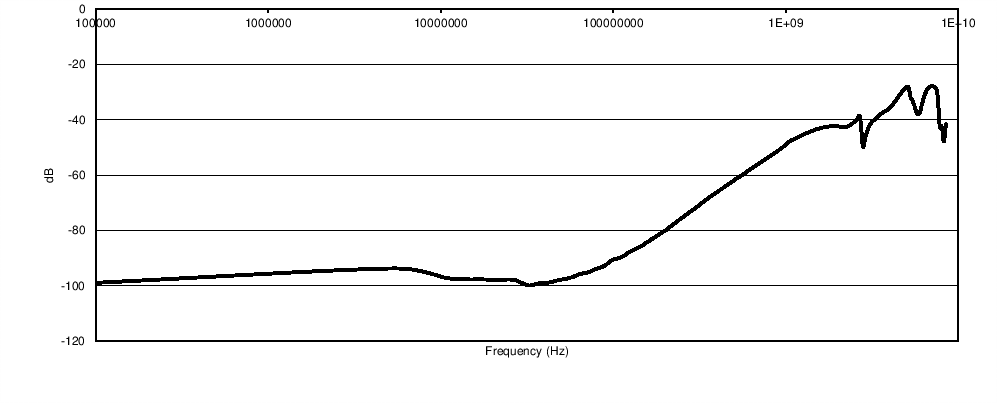

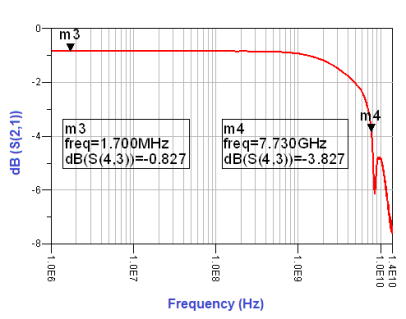

6.8 Typical Characteristics
Figure 7. Return Loss (S11) Characteristics of TS3DV642

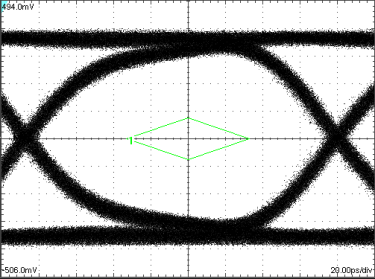

Figure 9. Eye Pattern: 6.0 Gbps, No Device Through Path (Only One Channel Measured at a Time)

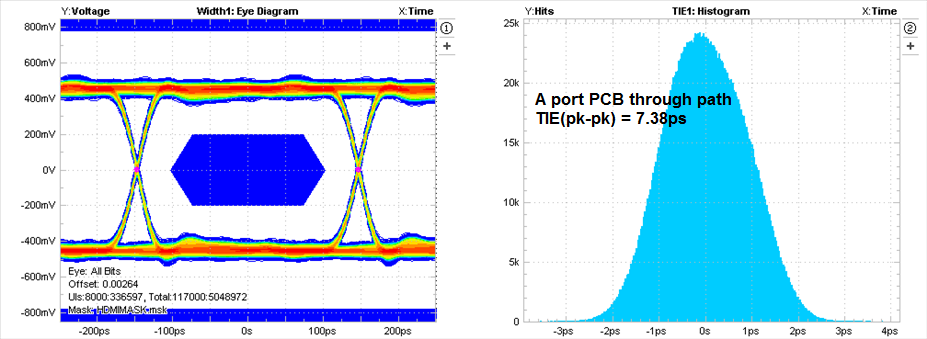

Figure 11. Eye Pattern and Time Interval Error Histogram: 3.4 Gbps, No Device Through Path

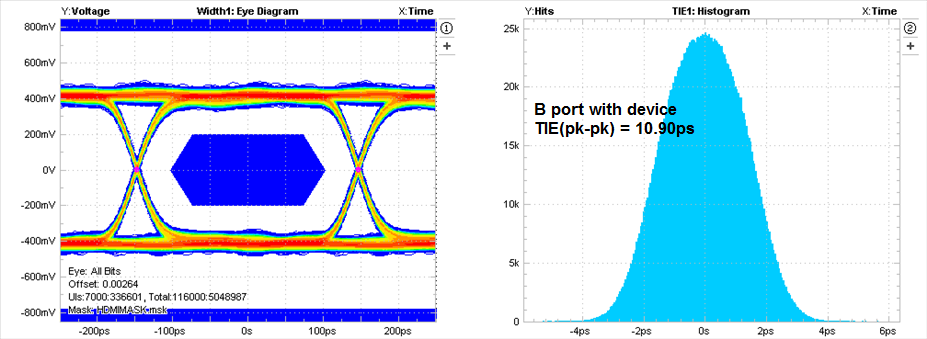

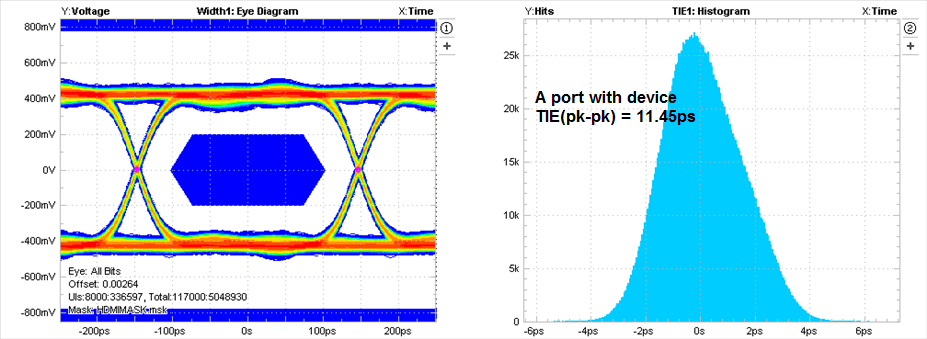

Figure 12. Eye Pattern and Time Interval Error Histogram: 3.4 Gbps Port B, With Device
Figure 13. Eye Pattern and Time Interval Error Histogram: 3.4 Gbps Port B, No Device
