7 Parameter Measurement Information

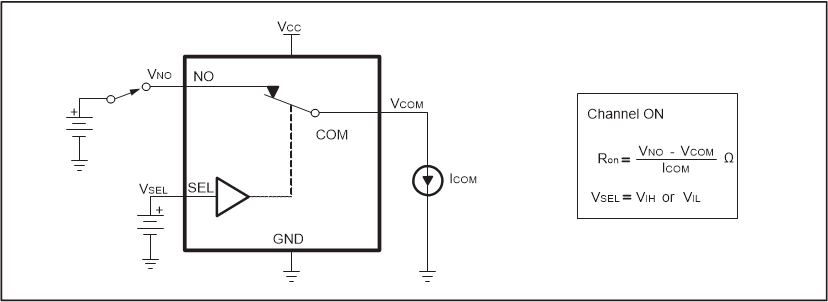

Figure 7. ON-State Resistance (RON)

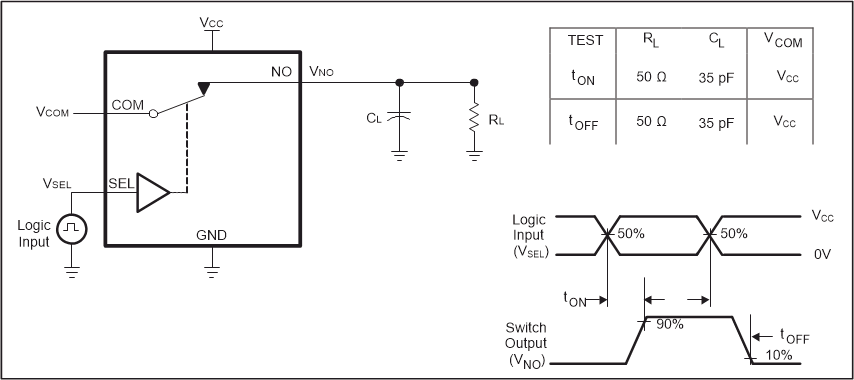

Figure 8. Turn-On (tON) and Turn-Off Time (tOFF)

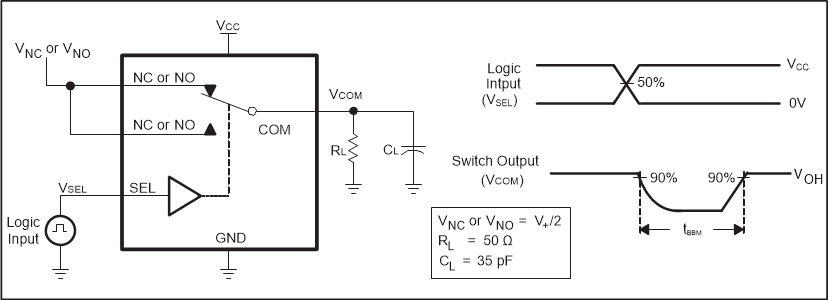

Figure 9. Break-Before-Make Time (tBBM)

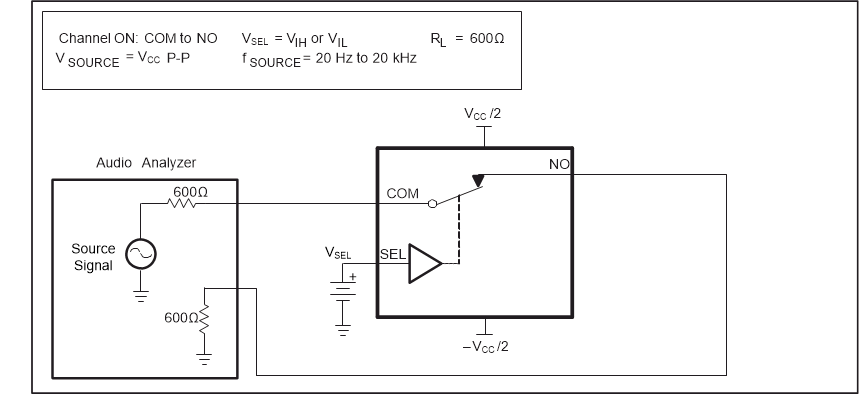

Figure 10. TOTAL HARMONIC DISTORTION (THD)
Figure 11. Crosstalk (XTALK)

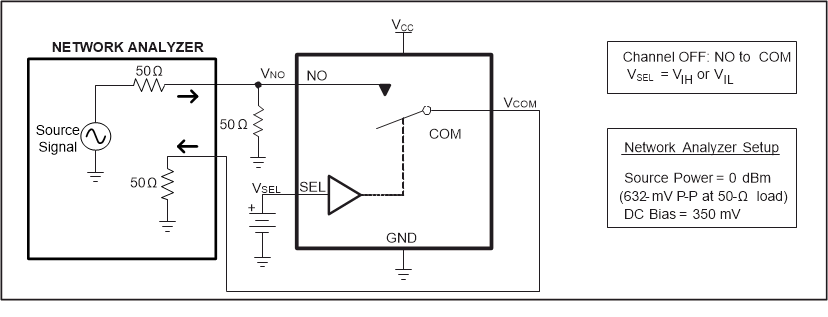

Figure 12. OFF Isolation (OISO)
