8.2.3 Application Curves
| VIN = 12 V | IOUT1 = 3 A | IOUT2 = 3 A |
| VOUT = 1.2 V | COUT = 4 × 100 μF |

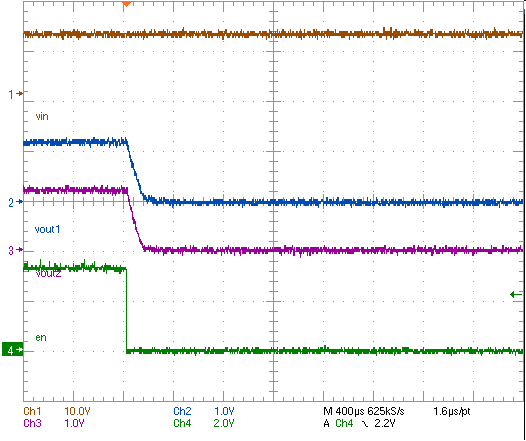

| VIN = 12 V | VOUT = 1.2 V | COUT = 4 ×
100 μF (Nominal) |

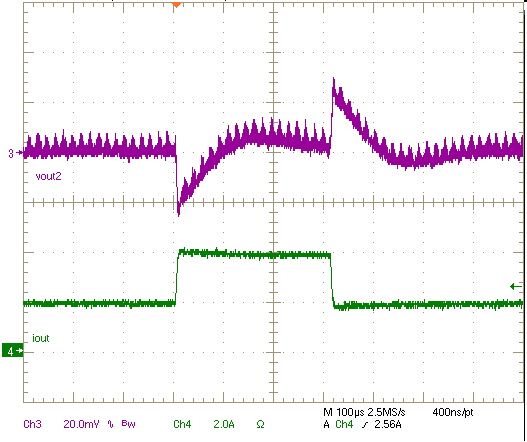

| Slew rate: 1 A/μs | IOUT = 2 A to 4 A |

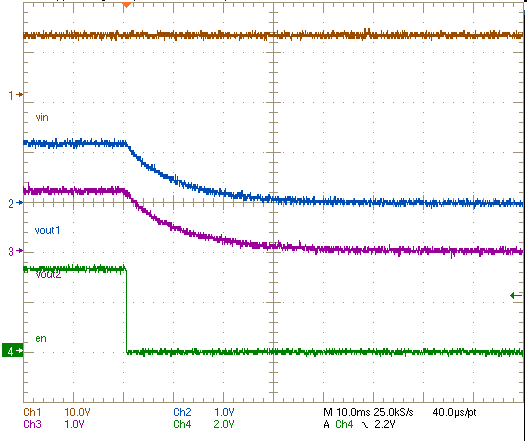

| VIN = 12 V | VOUT = 1.2 V | COUT = 4 × 100 μF (Nominal) |

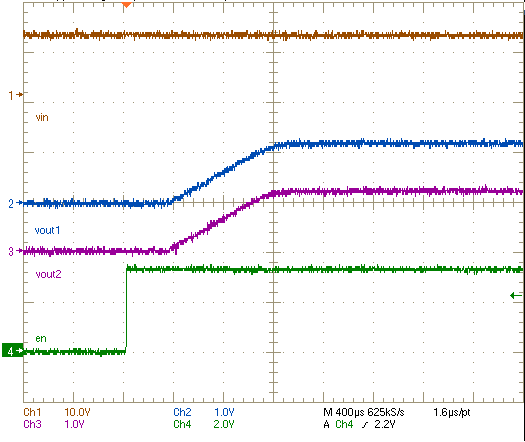

| VIN = 12 V | IOUT1 = 3 A | IOUT2 = 3 A |
| VOUT = 1.2 V | COUT = 4 × 100 μF |

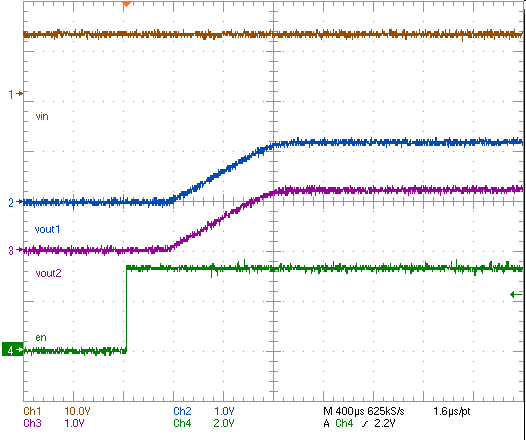

| VIN = 12 V | VOUT = 1.2 V | COUT = 4 ×
100 μF (Nominal) |
| Slew rate: 1 A/μs | IOUT = 2 A to 4 A |
| VIN = 12 V | VOUT = 1.2 V | COUT = 4 ×
100 μF (Nominal) |
