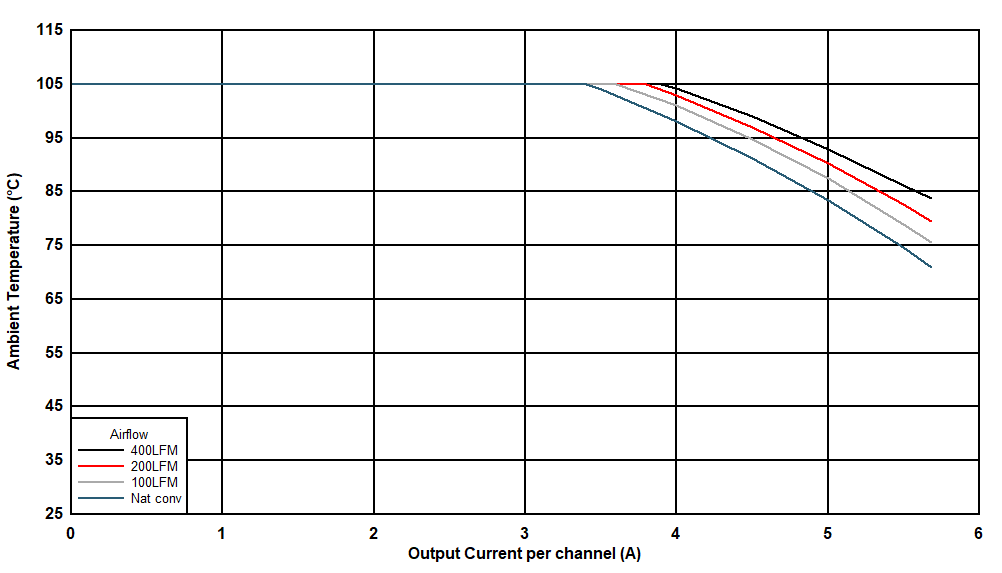

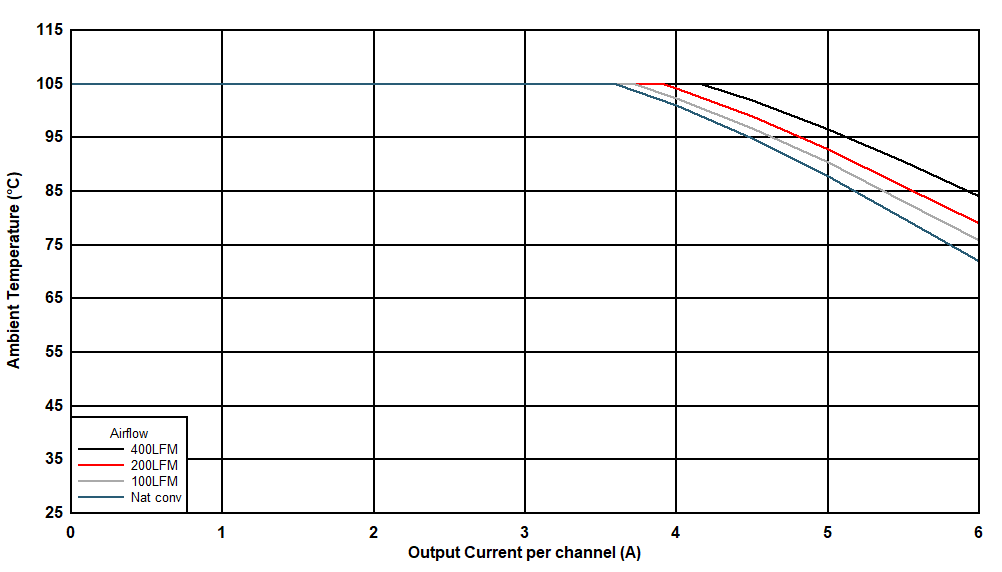

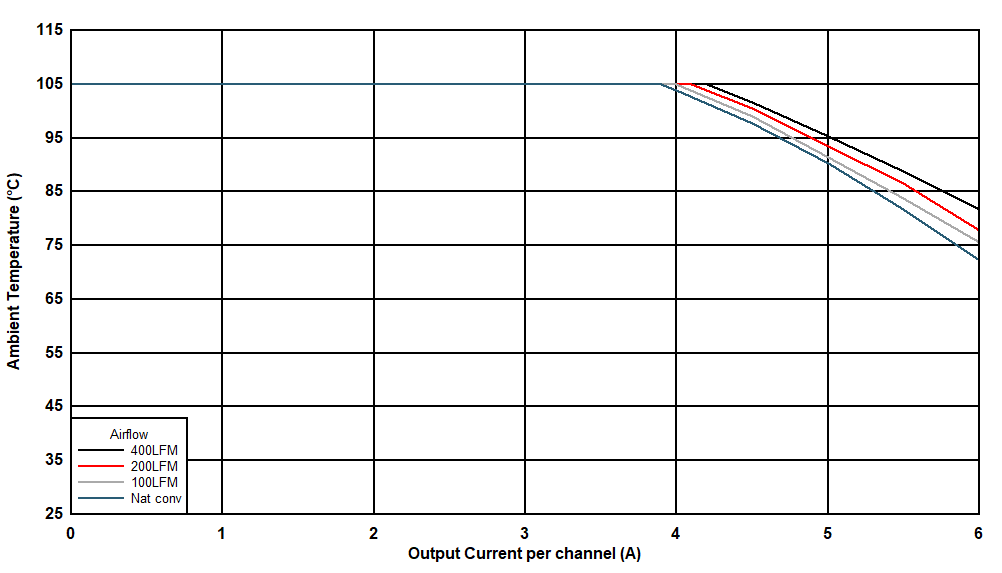

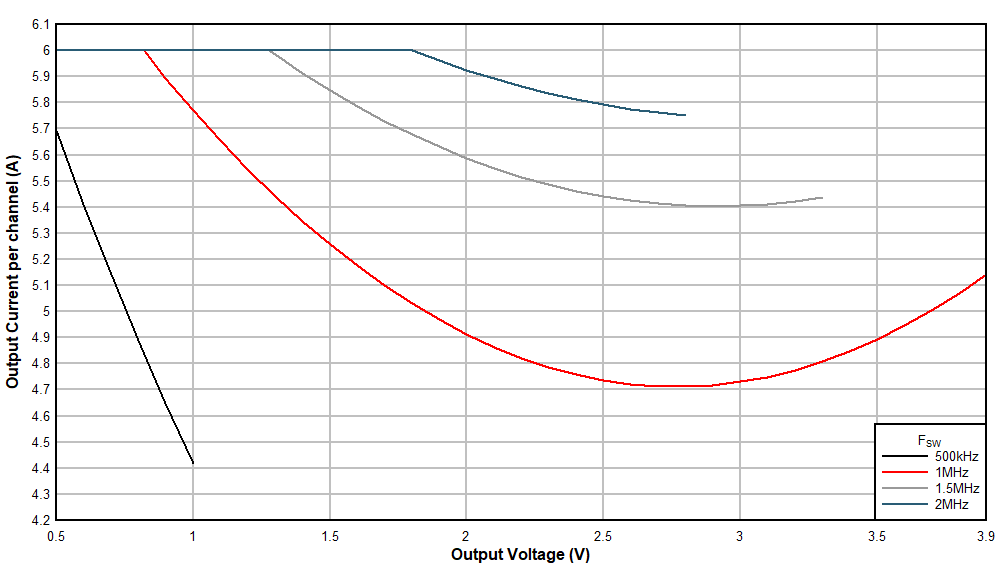

6.7 Typical Characteristics (VIN = 5 V)
TA = 25°C unless otherwise noted

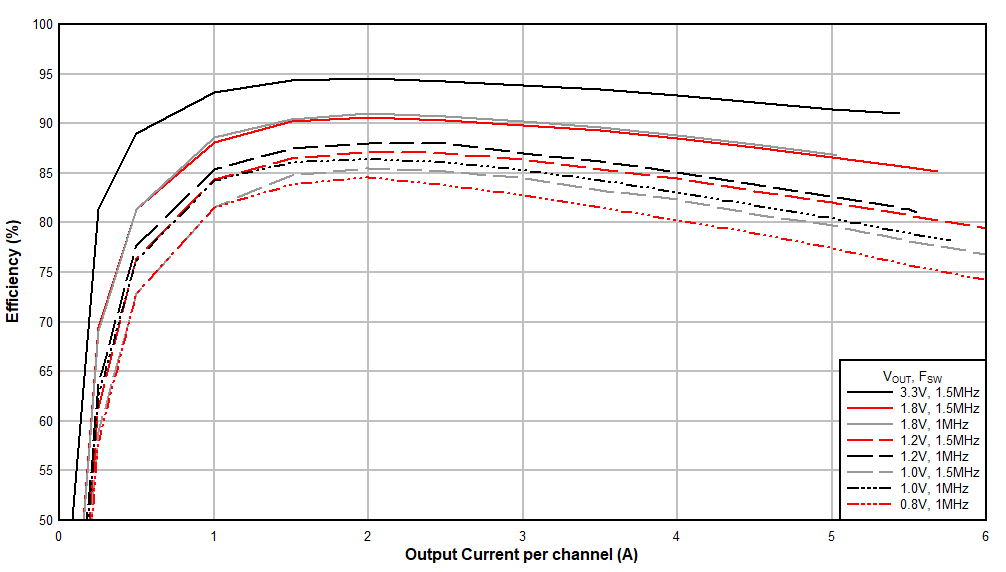

Figure 6-8 Efficiency vs Output Current
| Fsw = 1.5 MHz | Dual 1.2-V outputs | IOUT1 = IOUT2 |
| Fsw = 2.0 MHz | Dual 3.3-V outputs | IOUT1 = IOUT2 |

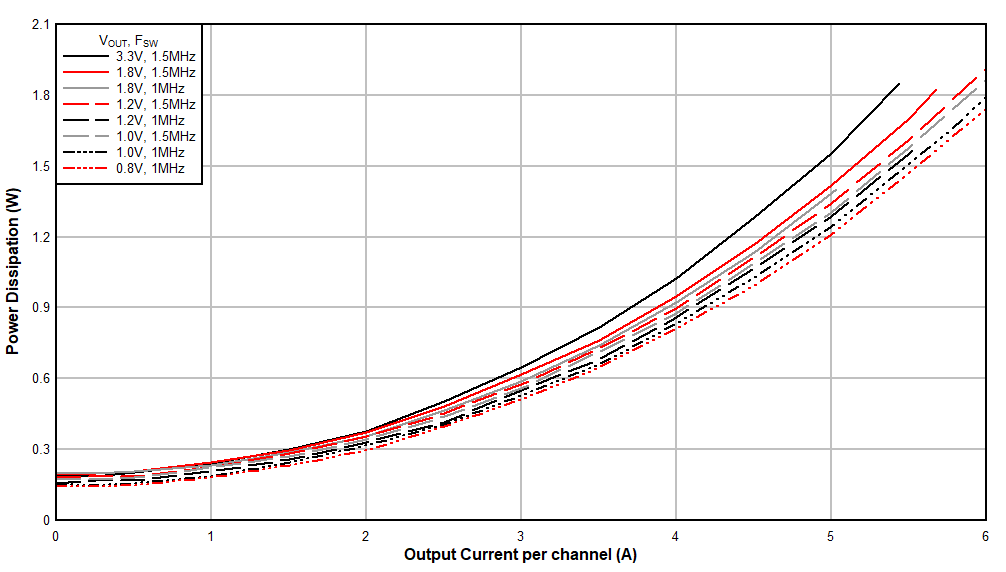

Figure 6-9 Power
Dissipation vs Output Current
| Fsw = 1.0 MHz | Dual 0.8-V outputs | IOUT1 = IOUT2 |
| Fsw = 1.5 MHz | Dual 1.8-V outputs | IOUT1 = IOUT2 |
