6.8 Typical Characteristics
Unless otherwise specified, VIN = 12 V. Curves represent most likely parametric norm at specified condition.

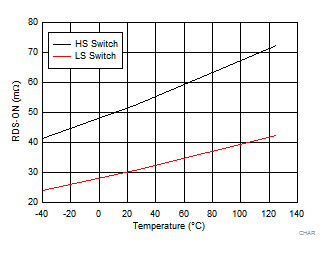

Figure 6-1 High-Side and Low-Side
Switches RDS-ON

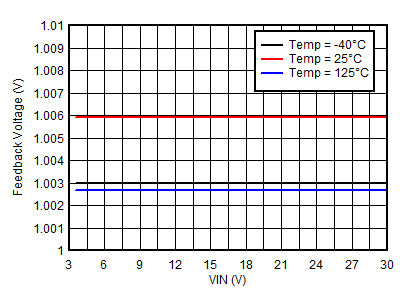

Figure 6-3 Feedback Voltage

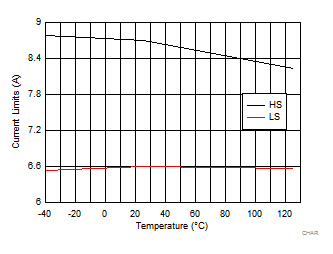

Figure 6-5 TPS7H4010-SEP High-Side and Low-Side
Current Limit

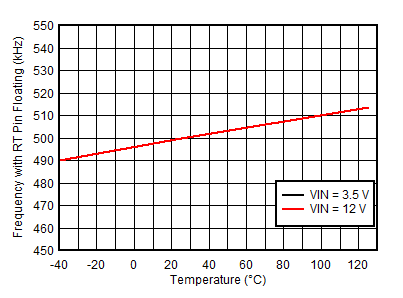

Figure 6-7 Switching Frequency With RT Pin Open
Circuit

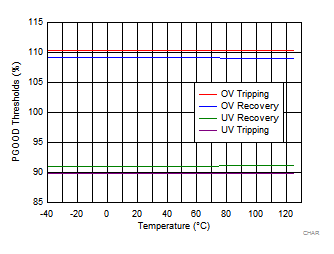

Figure 6-9 PGOOD Thresholds
Figure 6-2 Shutdown Quiescent Current

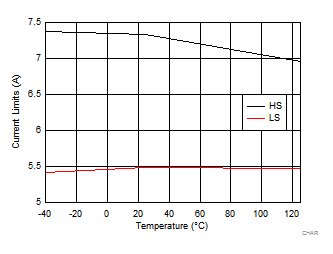

Figure 6-4 TPS7H4010-SEP High-Side and Low-Side Current Limits
Figure 6-6 Switching Frequency Set by
RT Resistor

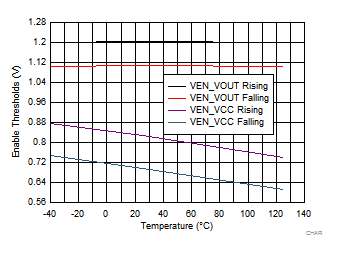

Figure 6-8 Enable Thresholds
